Antilock Brake System Schematics
Antilock Brake System Schematics

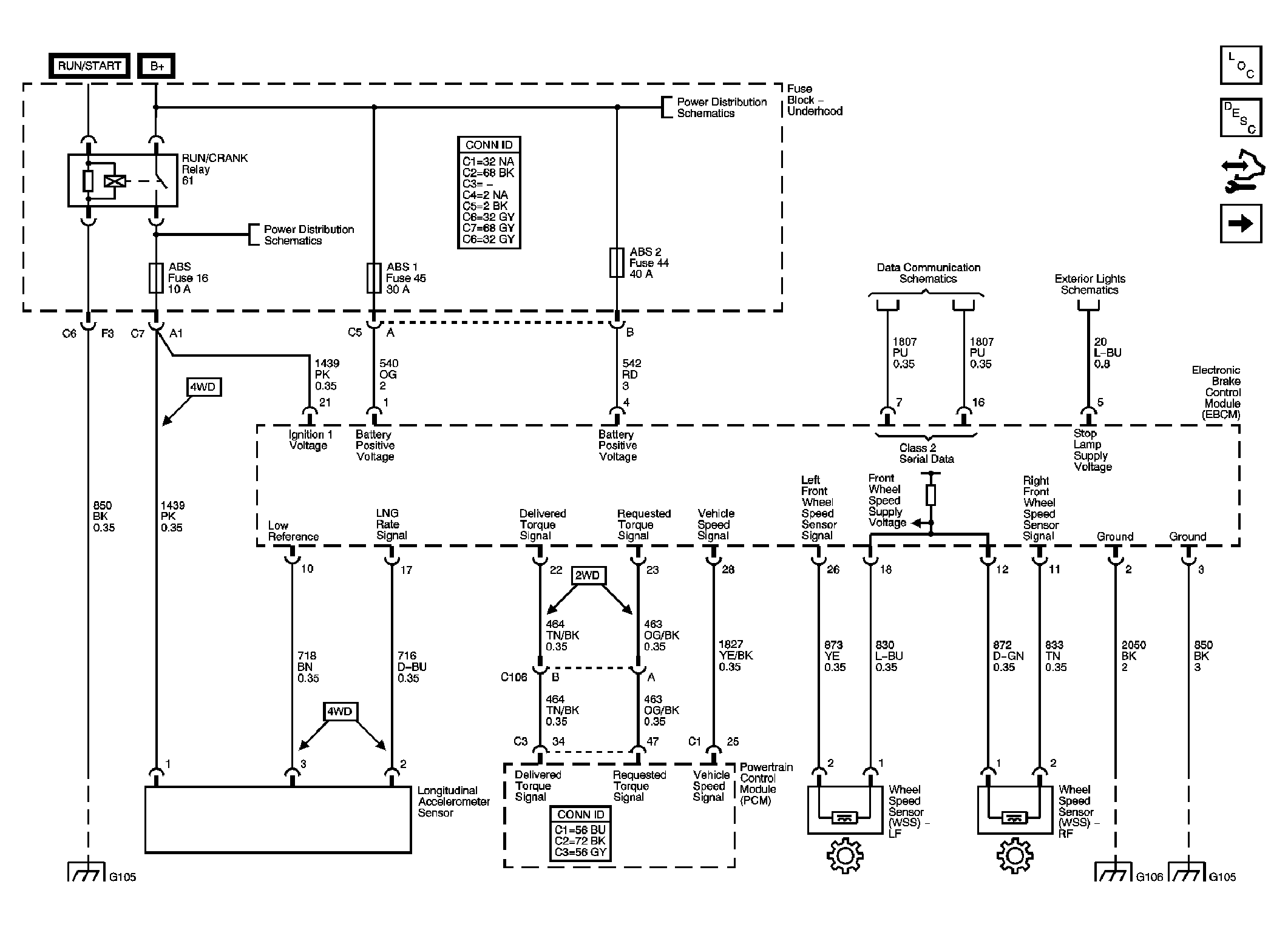

Fig 1: Power, Ground, and Electronic Brake Control Module
Courtesy of GENERAL MOTORS CORP.
Fig 2: Traction Control
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
