Heated/Cooled Seat Schematics

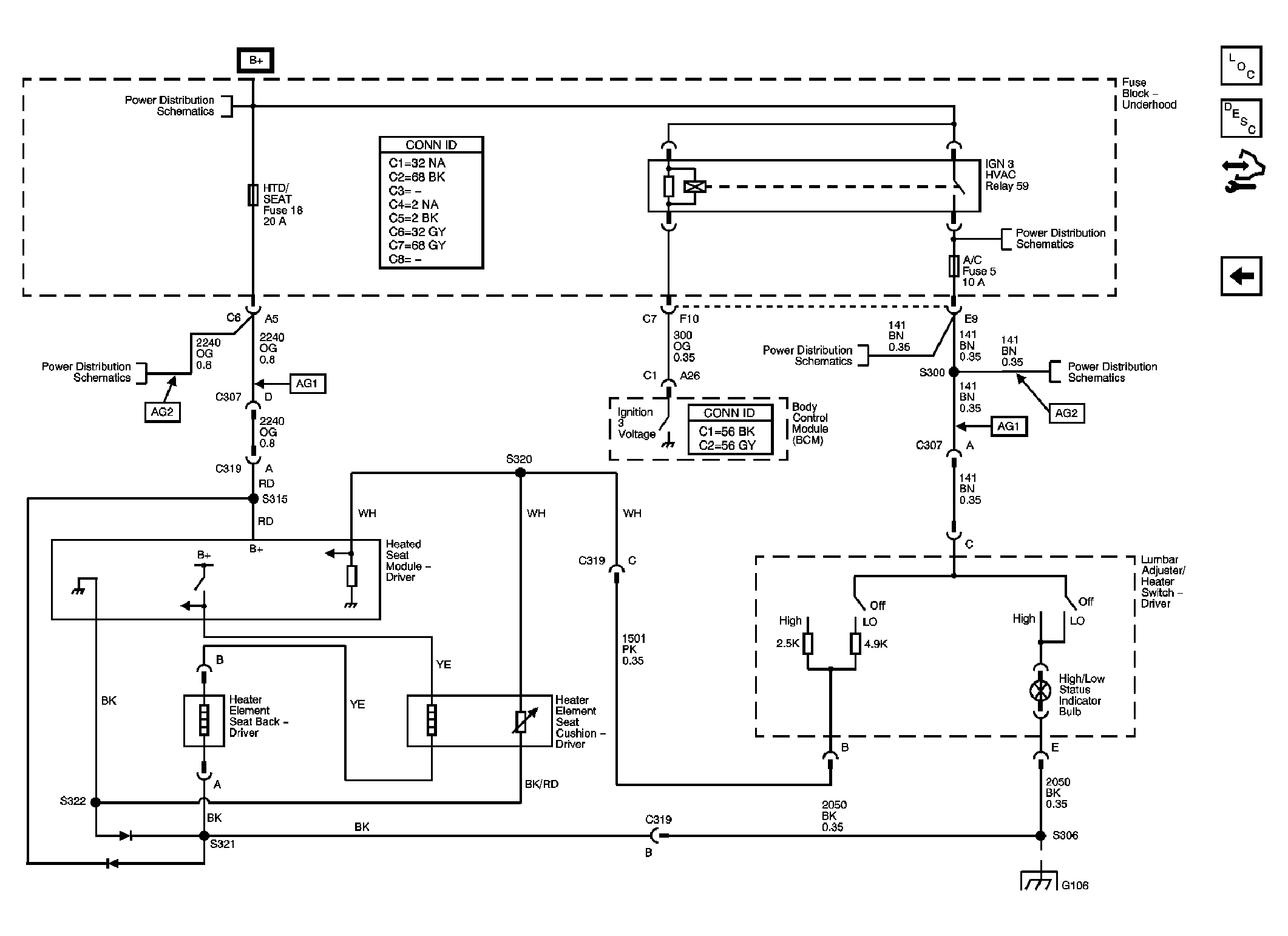

Fig 1: Driver Heat Controls

GM1775530

Courtesy of GENERAL MOTORS CORP.

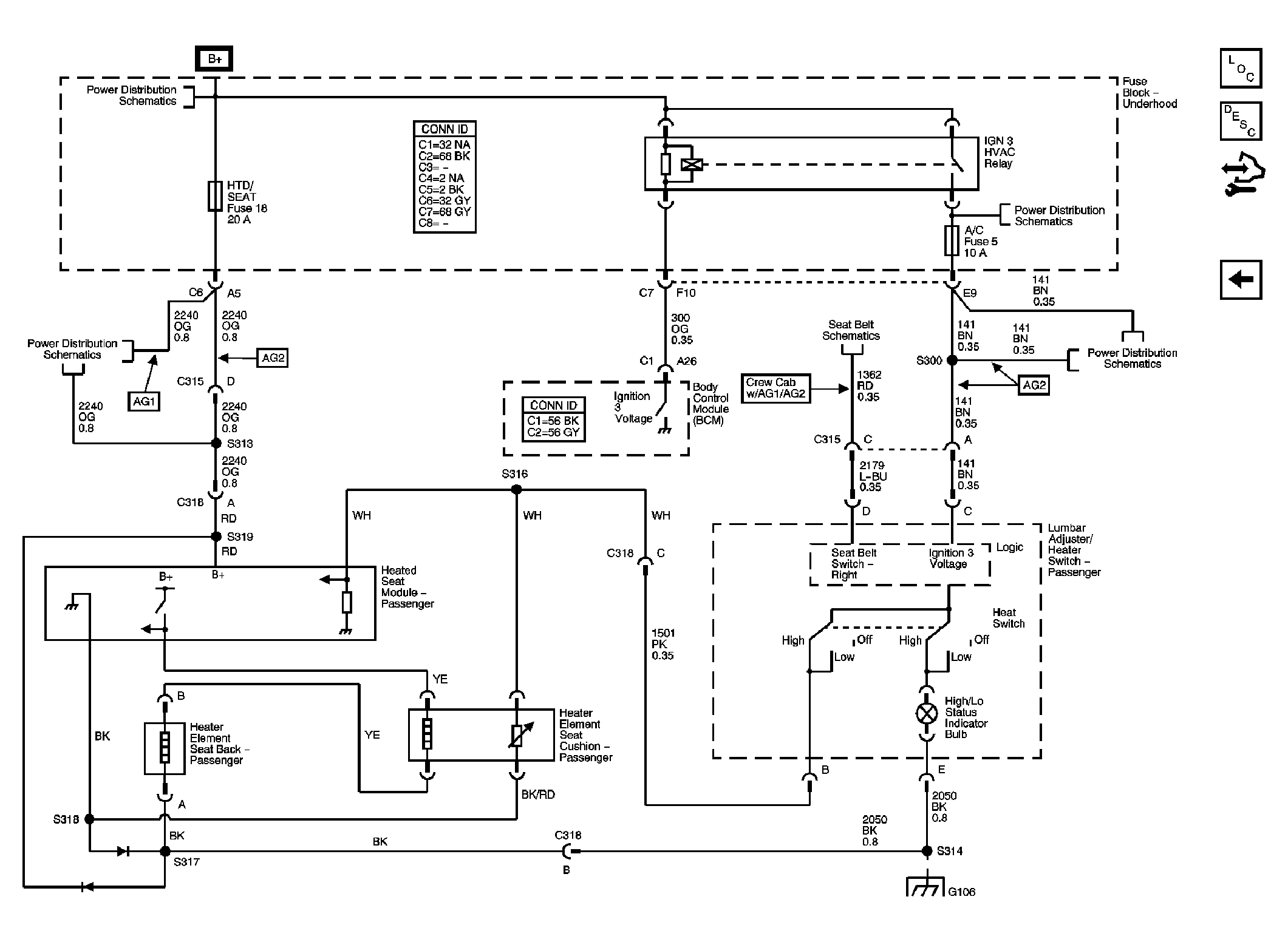

Fig 2: Passenger Heat Controls

GM1775542

Courtesy of GENERAL MOTORS CORP.
