Removal Procedure

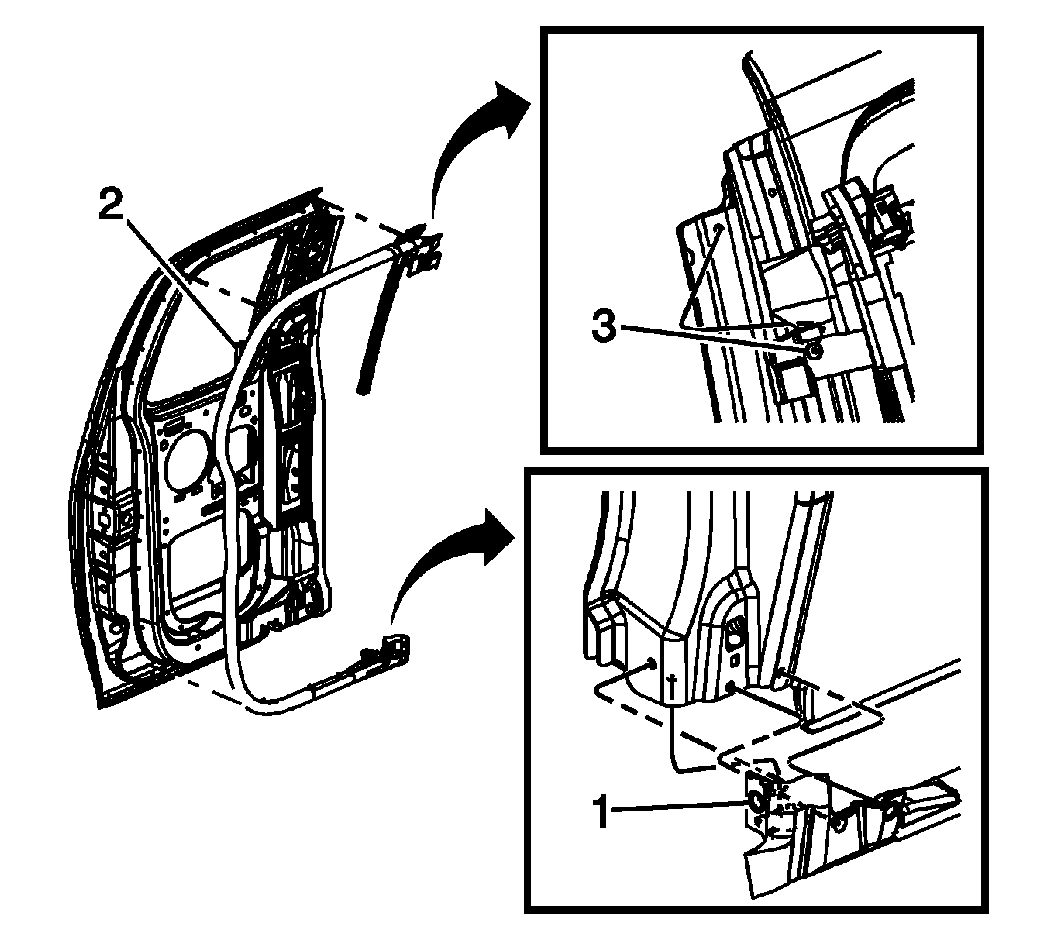

    Fig 1: View Of Rear Side Access Door Weatherstrip
    GM1247021Courtesy of GENERAL MOTORS CORP.
  1. Open the front and rear side access doors.
  2. Remove the upper molded detail from the front of the side access door, by inserting J 38778  under the weatherstrip mold and releasing the integral retaining pins (3) on the mold to the door.
  3. Remove the lower molded detail from the front of the side access door, by inserting J 38778  under the weatherstrip mold and releasing the integral retaining pins (1) on the mold to the door.
  4. Remove the weatherstrip from around the door, by inserting J 38778  under the weatherstrip on releasing the integral pins from the door.
  5. Remove the weatherstrip from the side access door.
