Removal Procedure

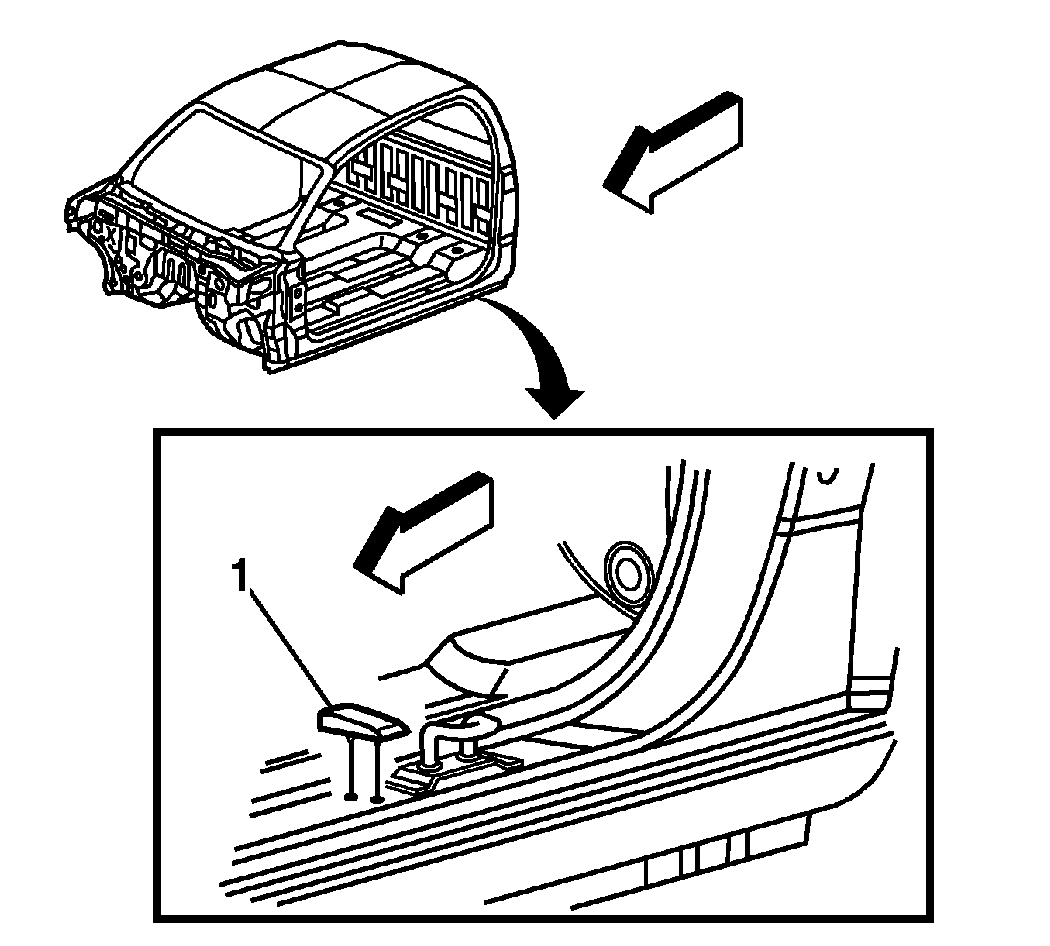

    Fig 1: View Of Rear Side Access Door Wedge - Body Side
    GM1256711Courtesy of GENERAL MOTORS CORP.
  1. Open the rear side access door.
  2. Apply tape to the area around the wedge to protect the paint.
  3. Heat the wedge (1) using a heat gun 152 mm (6 in) from the surface.
  4. Apply the heat using a circular motion for about 30 seconds.
  5. Remove the wedge from the body using a plastic, flat-bladed tool.
  6. Remove all adhesive from the body using 3M Scotch Brite molding adhesive remover disk 3M P/N 07201, or equivalent.
  7. Clean the body surface using varnish makers and painters (VMP) naptha.
