Removal Procedure

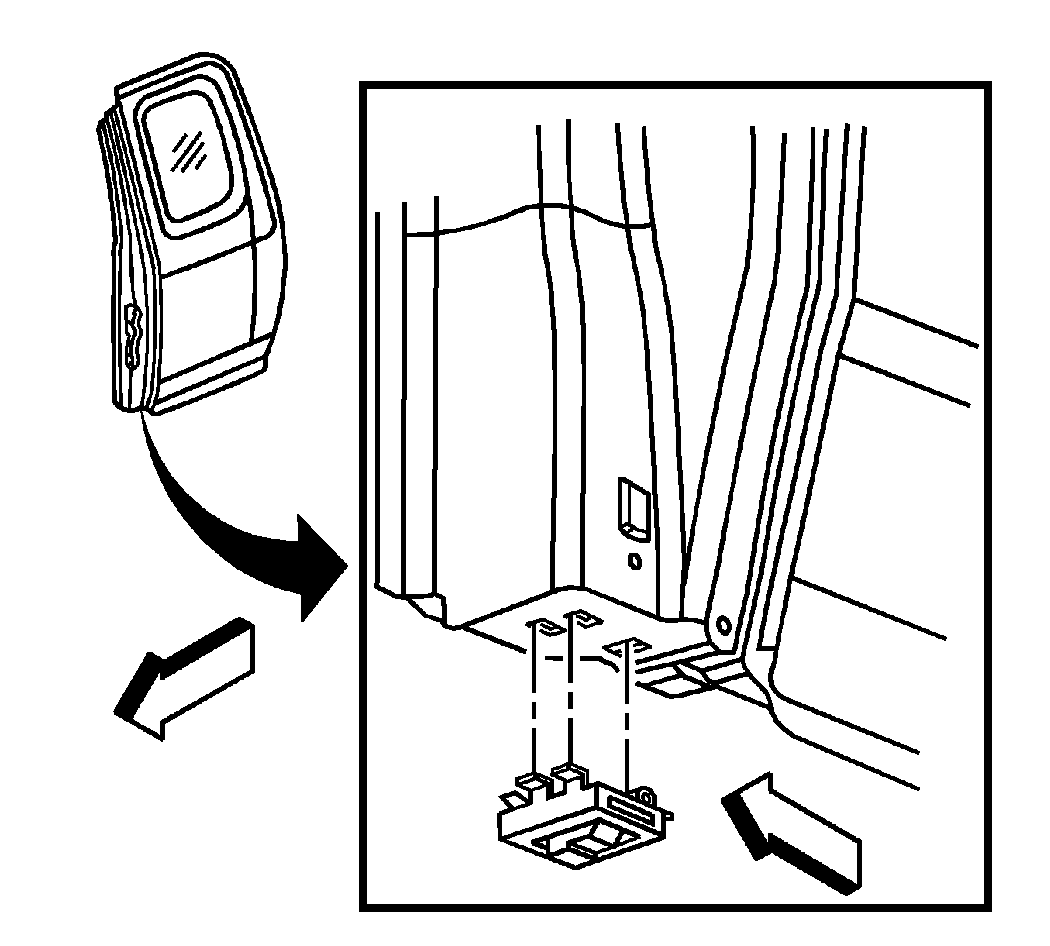

    Fig 1: View Of Rear Side Access Door Wedge - Door Side
    GM1256713Courtesy of GENERAL MOTORS CORP.
  1. Open the rear side access door.
  2. Remove the wedge from the side access door by squeezing the retainer clip on the wedge and rotating the wedge downward.
