Removal Procedure

    Fig 1: View Of Rear Door Check Link Retaining Bolt
    GM1256466Courtesy of GENERAL MOTORS CORP.
  1. Open the door.
  2. Remove the bolt retaining the rear door check link to the body.
  3. Remove the rear door wiring harness grommet from the body, and disconnect the door wiring harness connectors. Refer to Rear Side Door Wiring Harness Replacement .
    4. Fig 2: View Of Rear Door Hinge Keeper Strap Retaining Bolts
    GM1256440Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts (1) retaining the rear door hinge keeper straps.
  5. With an assistant, lift the rear door up off the body side hinges, and place on a clean protected surface.

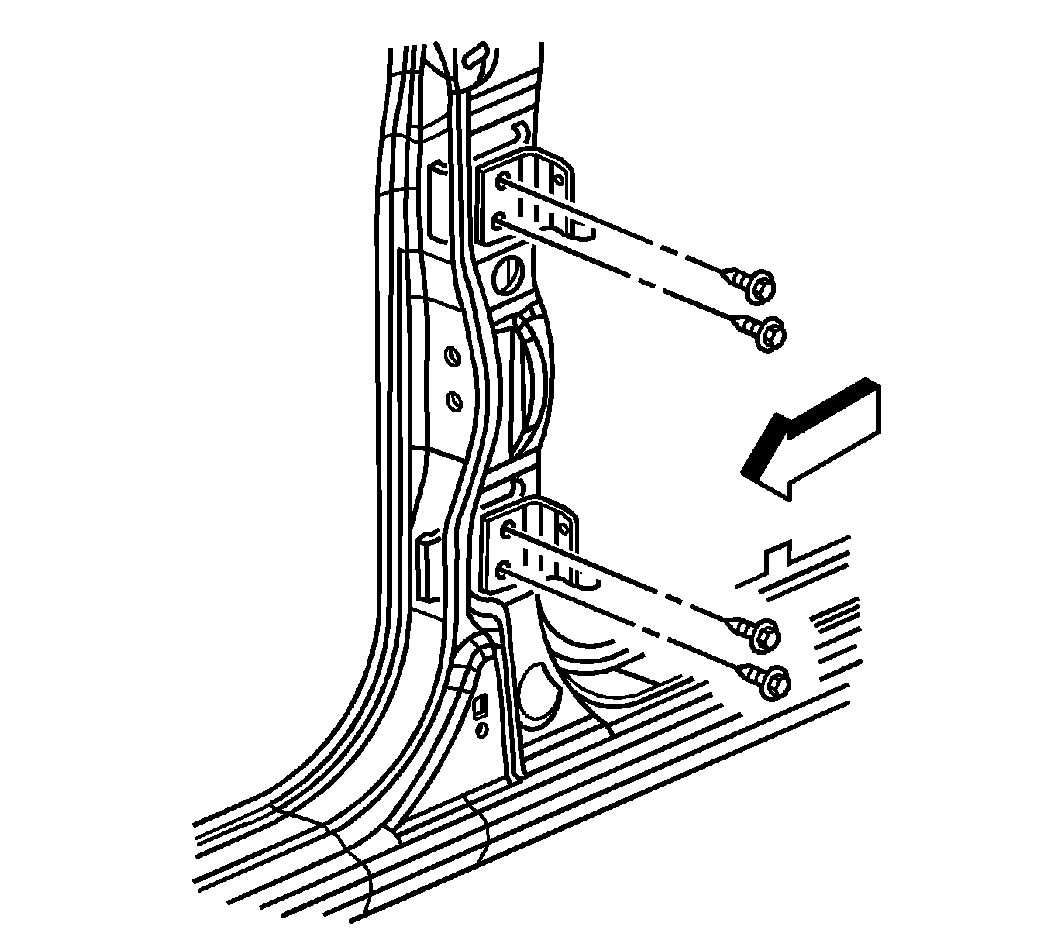

    6. Fig 3: View Of Body Side Hinge Retaining Bolts
    GM1265474Courtesy of GENERAL MOTORS CORP.
  6. Clean the mounting surfaces of the body side hinges with a clean rag and mark the rear door hinge locations with a grease pencil or other suitable marker.
  7. Remove the bolts retaining the body side hinges to the body.
  8. Remove the hinges from the body.
