Removal Procedure

  1. Remove the rear door trim panel. Refer to Rear Side Door Trim Panel Replacement .
  2. Remove the rear inside door handle. Refer to Door Handle Replacement - Rear Inside .
  3. Remove the rear door water deflector. Refer to Rear Side Door Water Deflector Replacement .

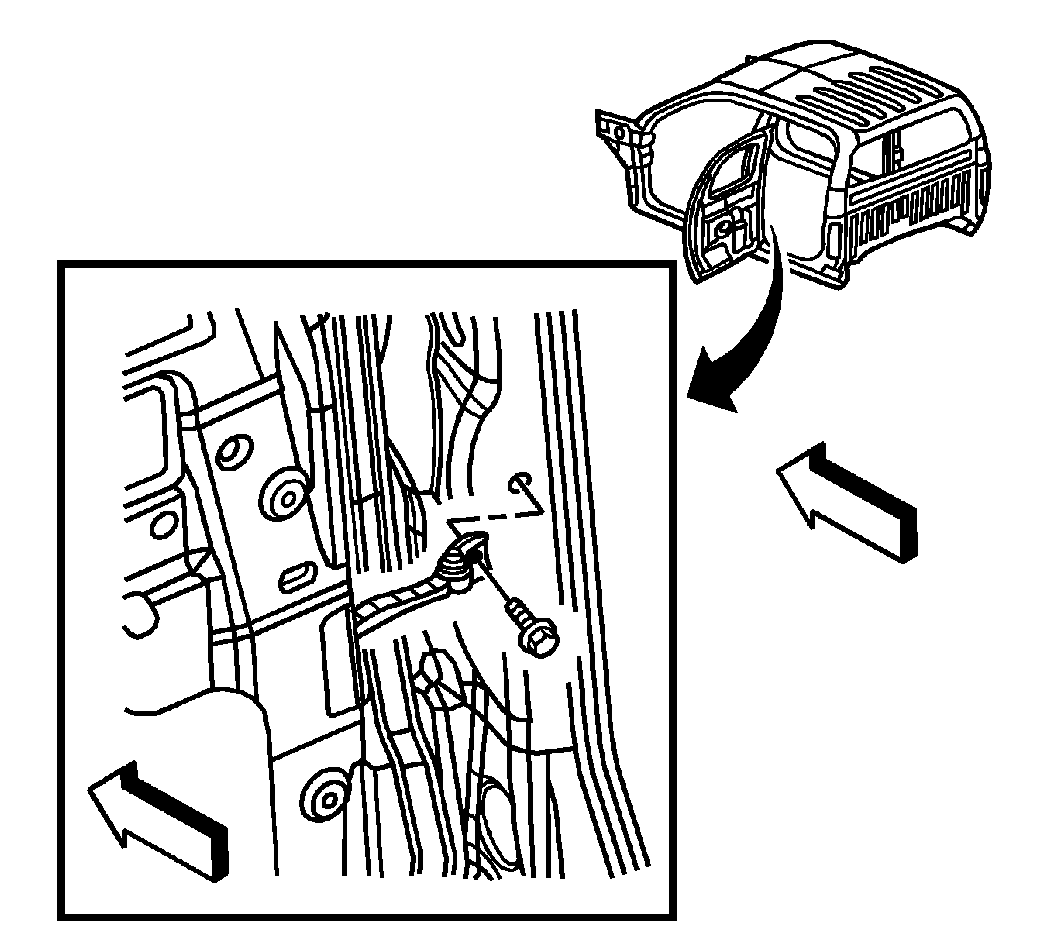

    4. Fig 1: View Of Rear Door Check Link Retaining Bolt
    GM1256466Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolt retaining the rear door check link to the body.

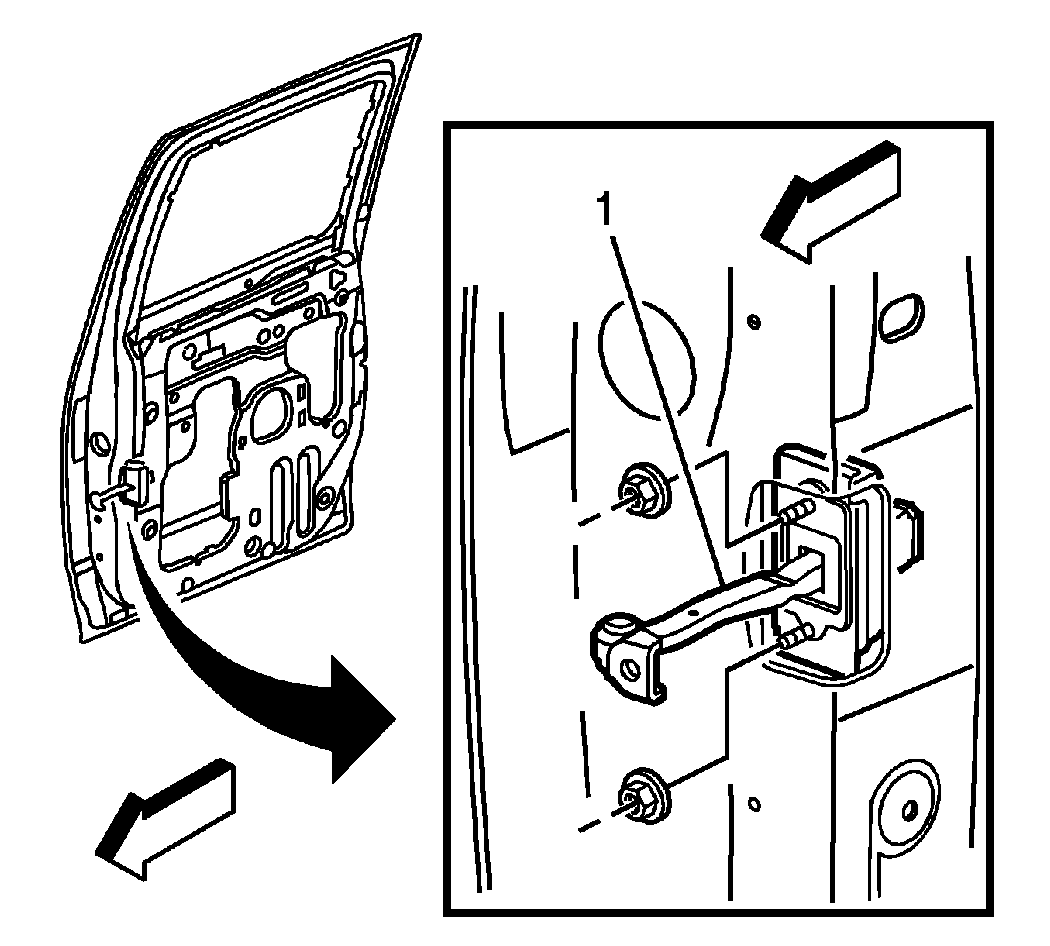

    5. Fig 2: View Of Rear Door Check Link
    GM1256473Courtesy of GENERAL MOTORS CORP.
  5. Remove the nuts retaining the rear door check link to the door.
  6. Remove the rear door check link from the door (1).
