Removal Procedure

  1. Remove the rear side access door trim panel. Refer to Rear Side Door Trim Panel Replacement .
  2. Remove the rear side access door inside handle. Refer to Door Handle Replacement Rear Side Access - Inside .
  3. Remove the rear side access door stationary window. Refer to Body Side Window Replacement .
  4. Remove the rear side access door upper latch. Refer to Rear Side Door Upper Latch Replacement .
  5. Remove the rear side access door lower latch. Refer to Latch Replacement Rear Side Access Door - Lower .
  6. Remove the rear side access door latch control assembly. Refer to Latch Control Assembly Replacement Rear Side Access Door .
  7. Remove the rear side access door weatherstrip. Refer to Weatherstrip Replacement Rear Side Access Door .
  8. Remove the rear side access door auxiliary weatherstrip. Refer to Rear Side Access Door Axuiliary Weatherstrip Replacement .
  9. Remove the rear side access door check link. Refer to Door Check Link Replacement Rear Side Access .
  10. Support the rear side access door.

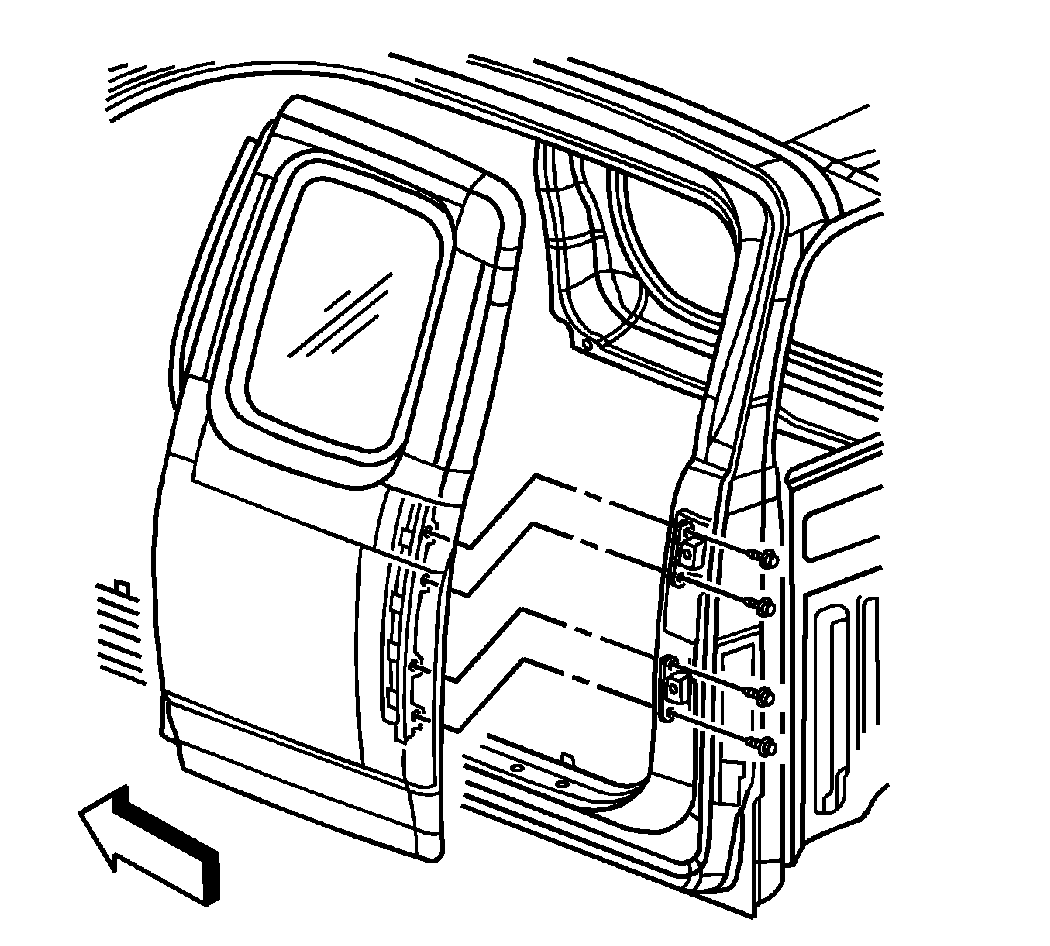

    11. Fig 1: View Of Rear Side Access Door Hinges & Retaining Bolts
    GM1265480Courtesy of GENERAL MOTORS CORP.
  11. Remove the bolts retaining the rear side access door hinge to the door.
  12. With an assistant, remove the rear side access door from the vehicle.
