Removal Procedure

IMPORTANT: In order to minimize door realignment, do not remove both the door hinges at the same time. Replace the broken hinge first.
    Fig 1: View Of Rear Side Access Door Hinges & Retaining Bolts
    GM1265480Courtesy of GENERAL MOTORS CORP.
  1. Open the front and rear side access door.
  2. Clean the mounting surfaces of the hinges with a clean rag, and mark the rear door hinge locations on each surface with a grease pencil, or other suitable marker.
  3. Support the rear side access door.
  4. Remove the bolts retaining the hinge to the door.

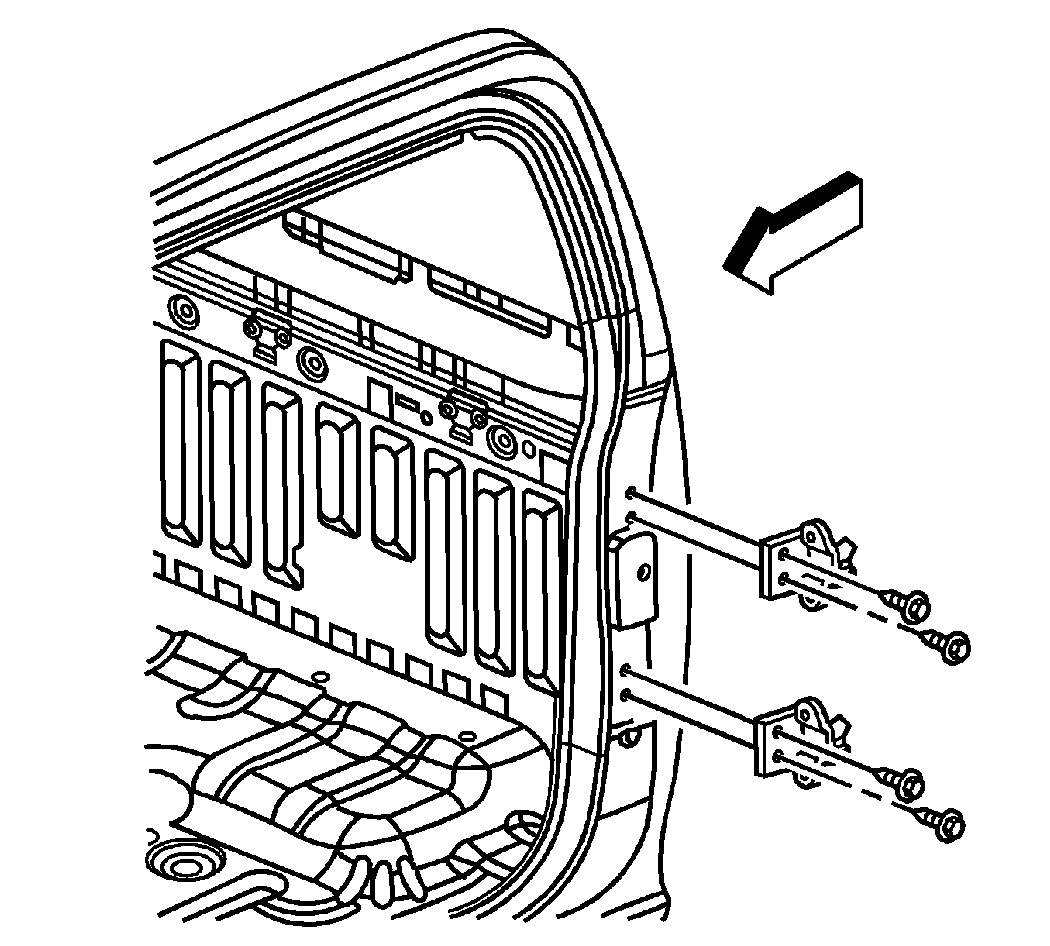

    5. Fig 2: View Of Rear Side Access Door Hinge
    GM1265477Courtesy of GENERAL MOTORS CORP.
  5. Remove the bolts retaining the hinge to the body.
  6. Remove the rear side access door hinge from the body.
