Removal Procedure

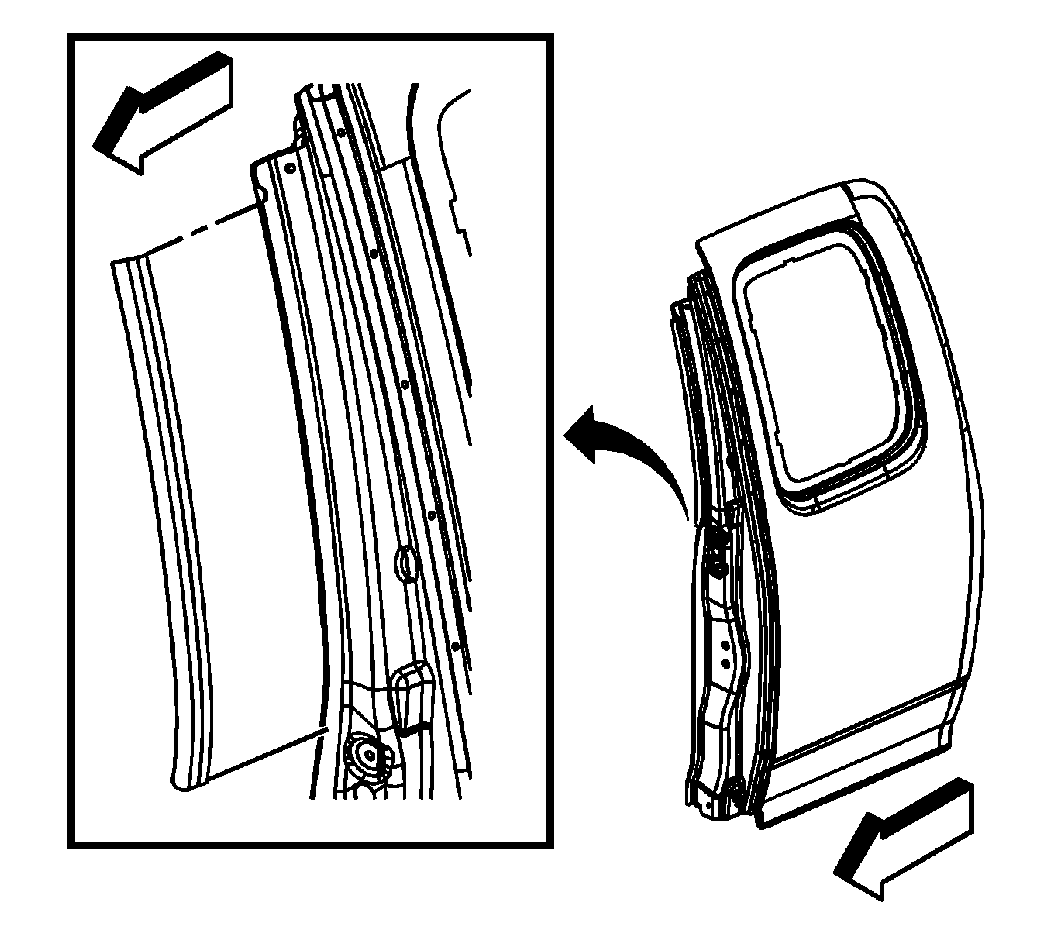

    Fig 1: View Of Rear Side Access Door Auxiliary Weatherstrip
    GM1247016Courtesy of GENERAL MOTORS CORP.
  1. Open the front and side access doors.
  2. Remove the rear door outer auxiliary weatherstrip by pulling the weatherstrip from the rear door pinchweld flange.
