Removal Procedure

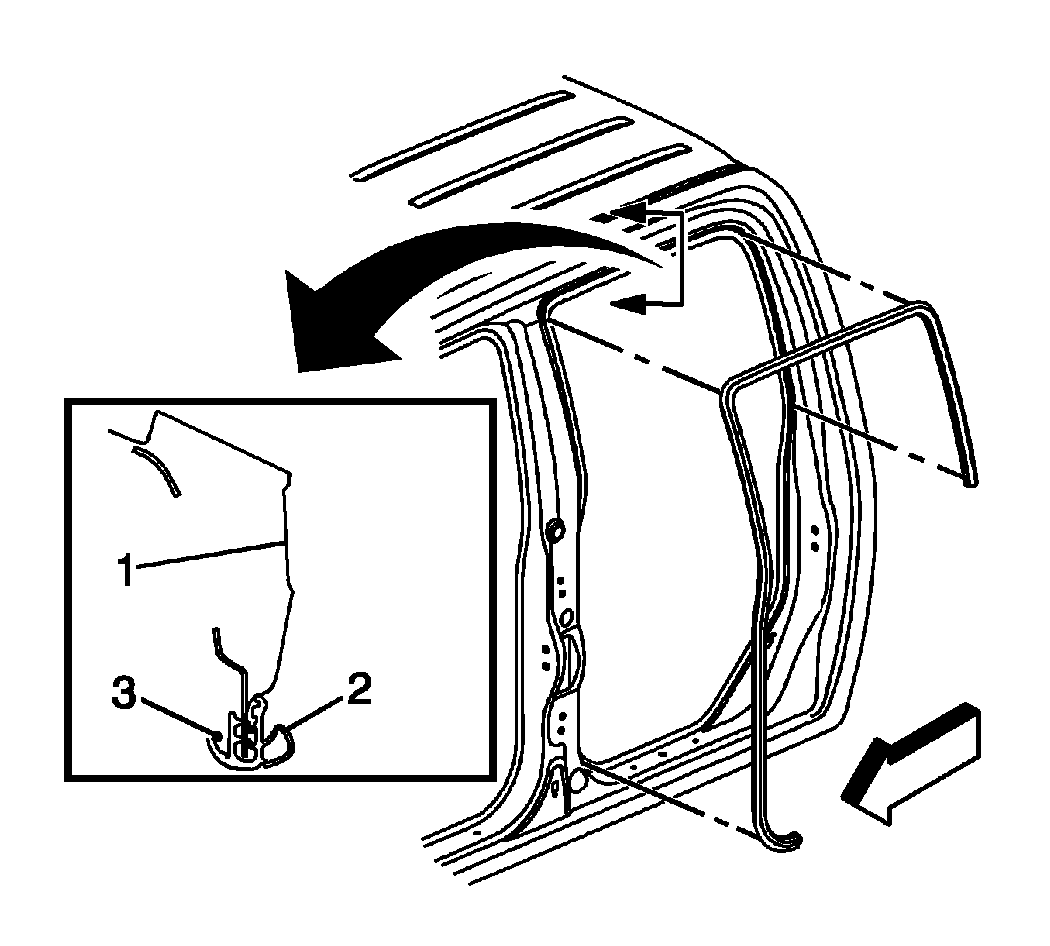

    Fig 1: View Of Rear Door Opening Weatherstrip
    GM1247027Courtesy of GENERAL MOTORS CORP.
  1. Open the rear door.
  2. Remove the lower center pillar trim panel. Refer to Center Pillar Lower Trim Panel Replacement .
  3. Remove the rear door opening weatherstrip (2) from the door opening pinchweld flange (1).
  4. Remove the rear door opening weatherstrip from the vehicle.
