Installation Procedure

  1. Align the pickup box on the frame rails.

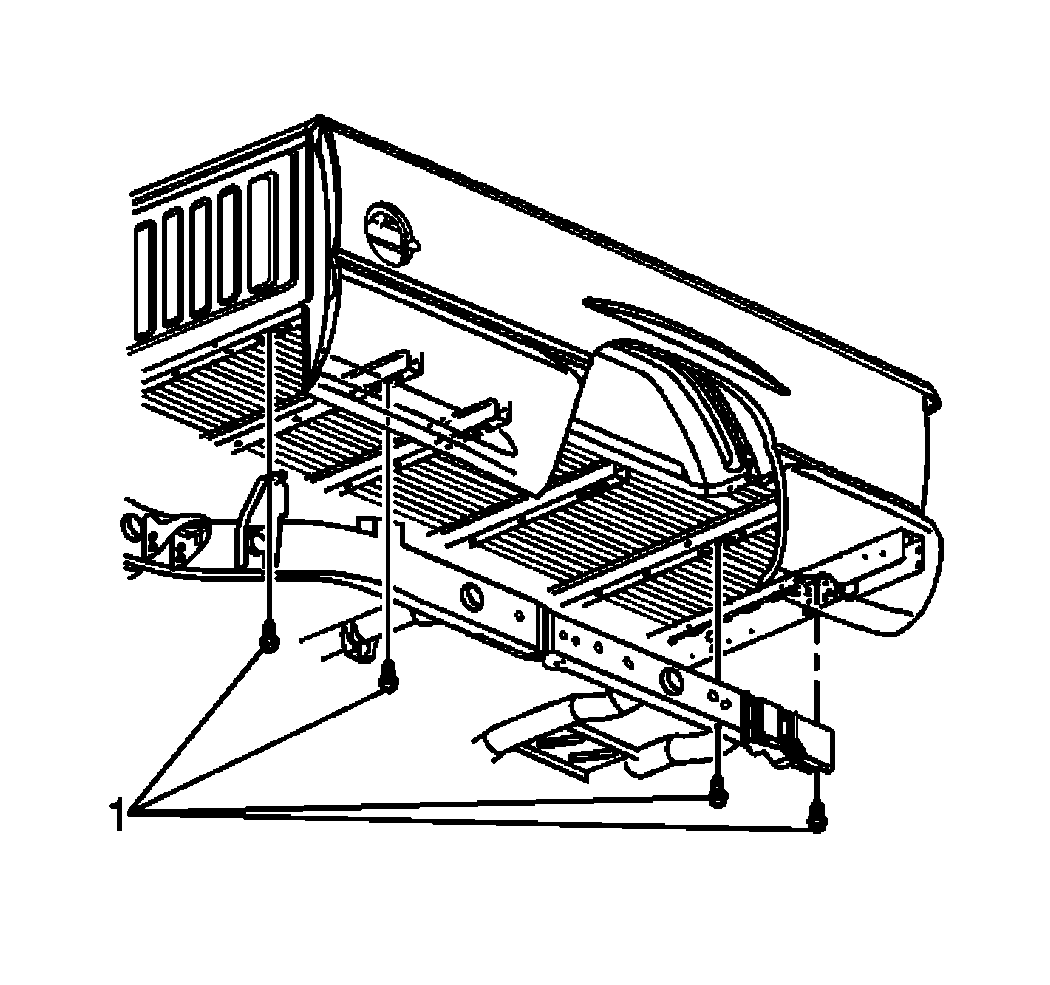

    2. Fig 1: Pickup Box & Fasteners
    GM340587Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  2. Loosely install the pickup box fasteners (1) to the frame rails.

    Tighten:  Tighten the retaining bolts to the frame rail to 85 N.m (63 lb ft).

  3. Install the endgate. Refer to EndGate Replacement .
    4. Fig 2: Fuel Filler Door & Upper Screws
    GM354587Courtesy of GENERAL MOTORS CORP.
  4. Fasten the screws and the push-pin around the fuel filler neck.
  5. Close the fuel filler door.
  6. Install the tail lamp assembly. Refer to Tail Lamp Replacement .
  7. Connect the tail lamp wiring connectors at the rear of the vehicle.
