Installation Procedure

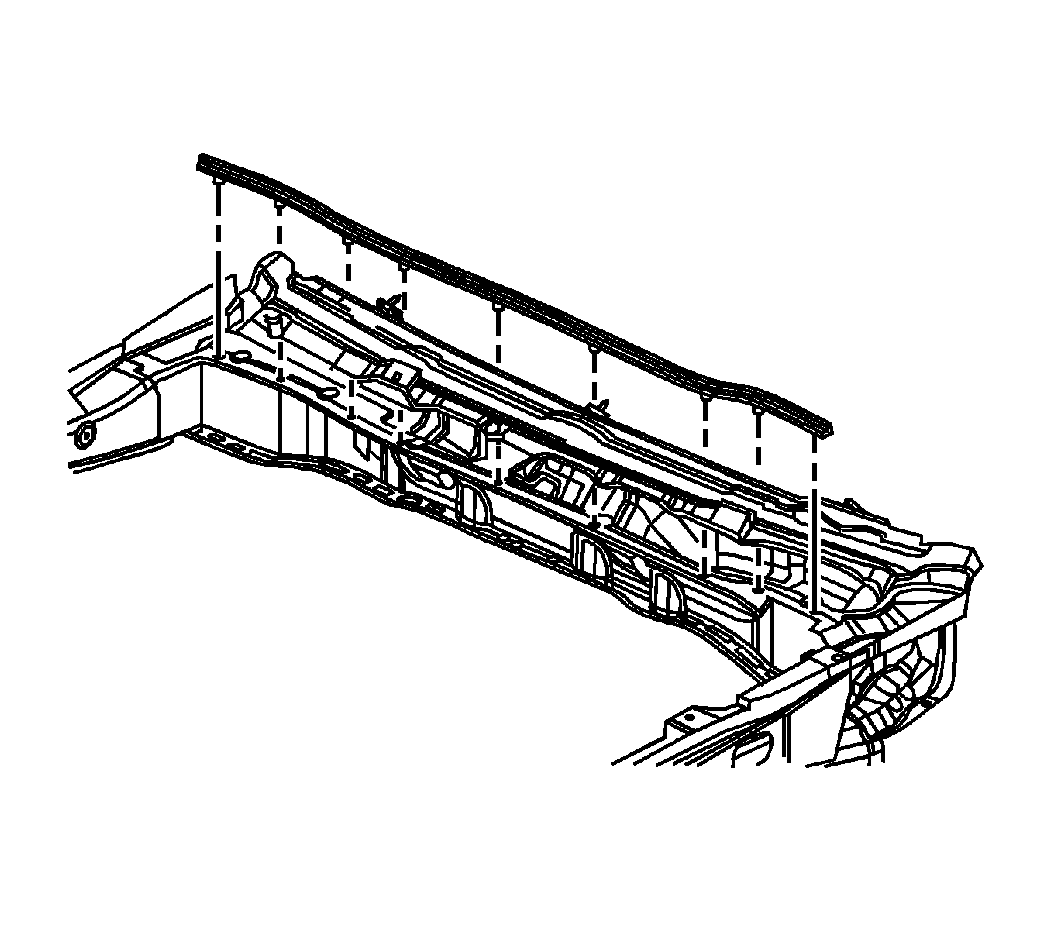

    Fig 1: View Of Rear Hood Seal
    GM1313581Courtesy of GENERAL MOTORS CORP.
  1. Position the seal to the upper cowl panel.
  2. Insert each retainer into the holes in the body.
  3. Close the hood.
