Installation Procedure

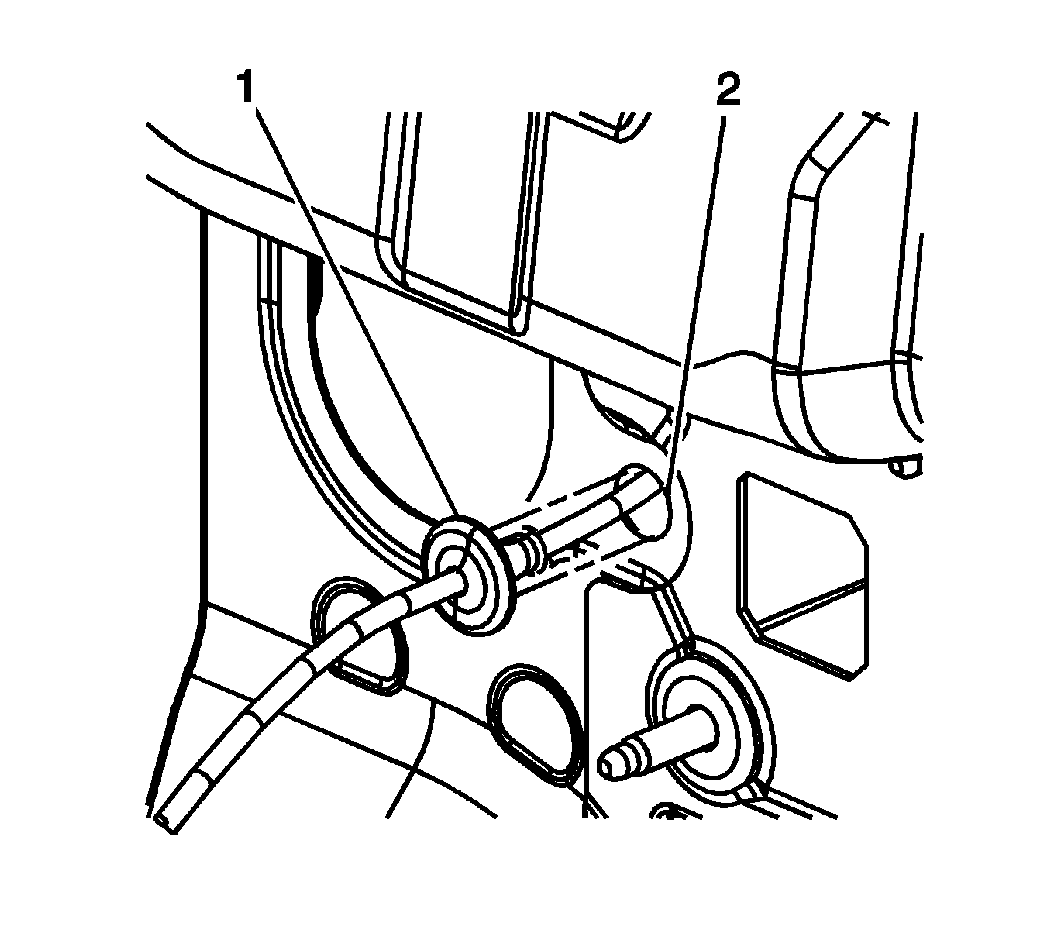

    Fig 1: View Of Hood Latch Cable Routing
    GM1372823Courtesy of GENERAL MOTORS CORP.
  1. Attach the mechanic's wire to the exterior end of the cable.
  2. Using the mechanic's wire as an aid, guide the cable underneath the sound insulation and pass the exterior portion of the cable through the cowl panel.
  3. Install the cable to the release handle.
  4. Seat the cable grommet to the cowl panel.

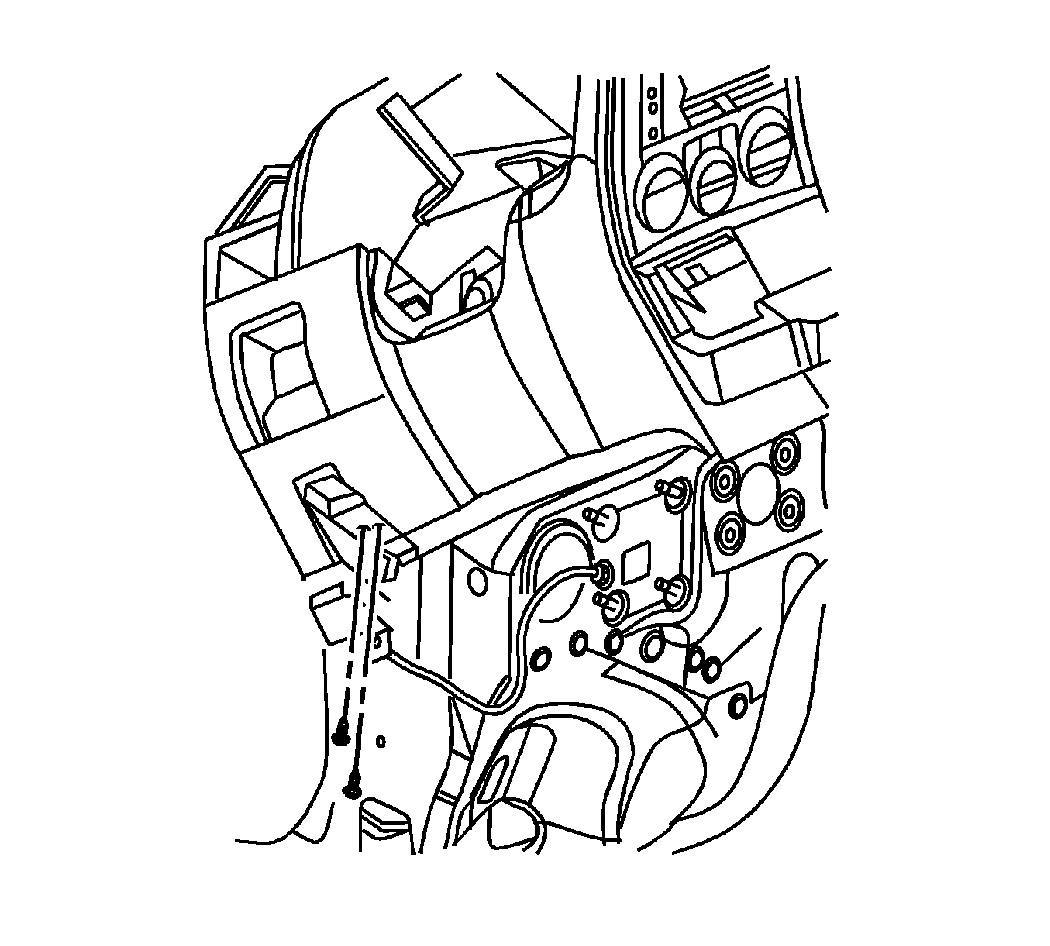

    5. Fig 2: View Of Hood Release Handle Bolts
    GM1372563Courtesy of GENERAL MOTORS CORP.
  5. Install the release handle to the knee bolster.
    6. NOTE: Refer to Fastener Notice .
  6. Install the bolts that retain the release handle to the knee bolster.

    Tighten:  Tighten the bolts to 1 N.m (9 lb in).

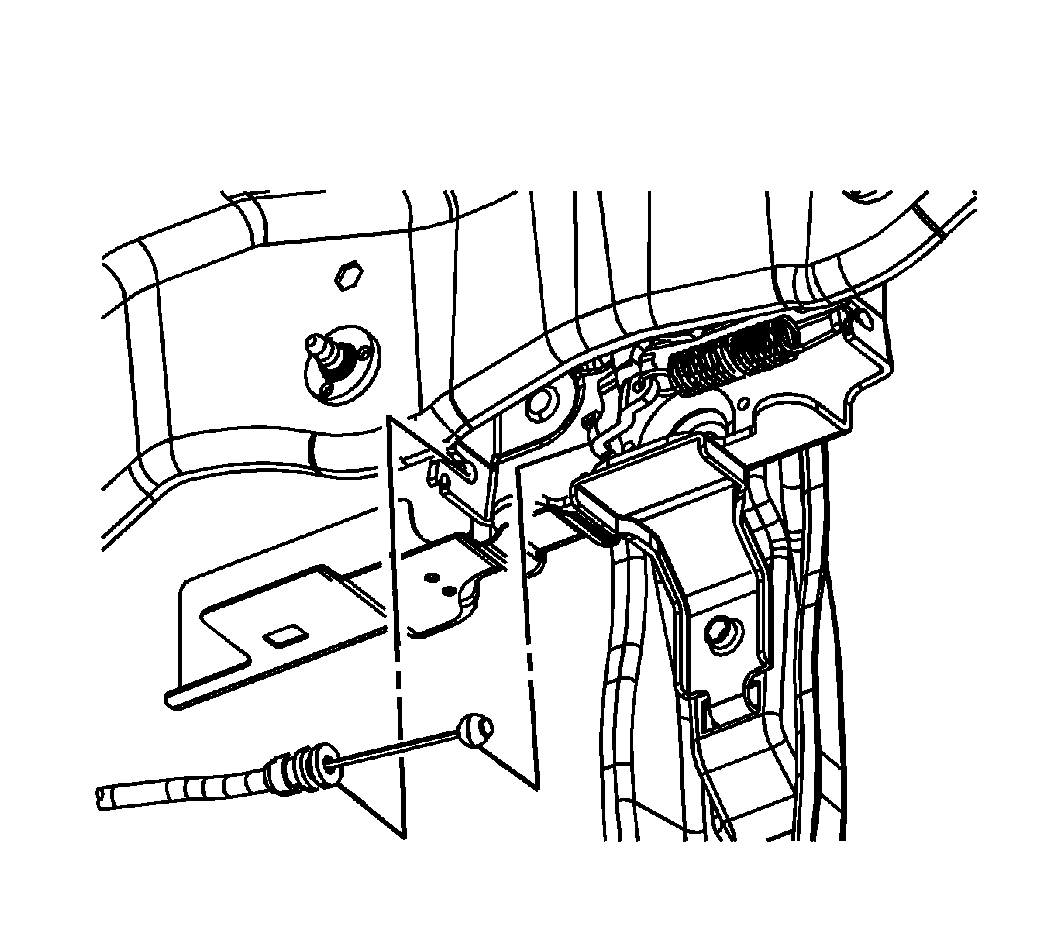

    7. Fig 3: View Of Hood Latch Cable
    GM1372561Courtesy of GENERAL MOTORS CORP.
  7. Route the cable as previously noted.
  8. Attach the cable to the retainers on the inner fender.
  9. Install the cable to the hood latch assembly.
  10. Install the hood latch. Refer to Hood Latch Replacement .
  11. Install the grille. Refer to Grille Replacement .
