Removal Procedure

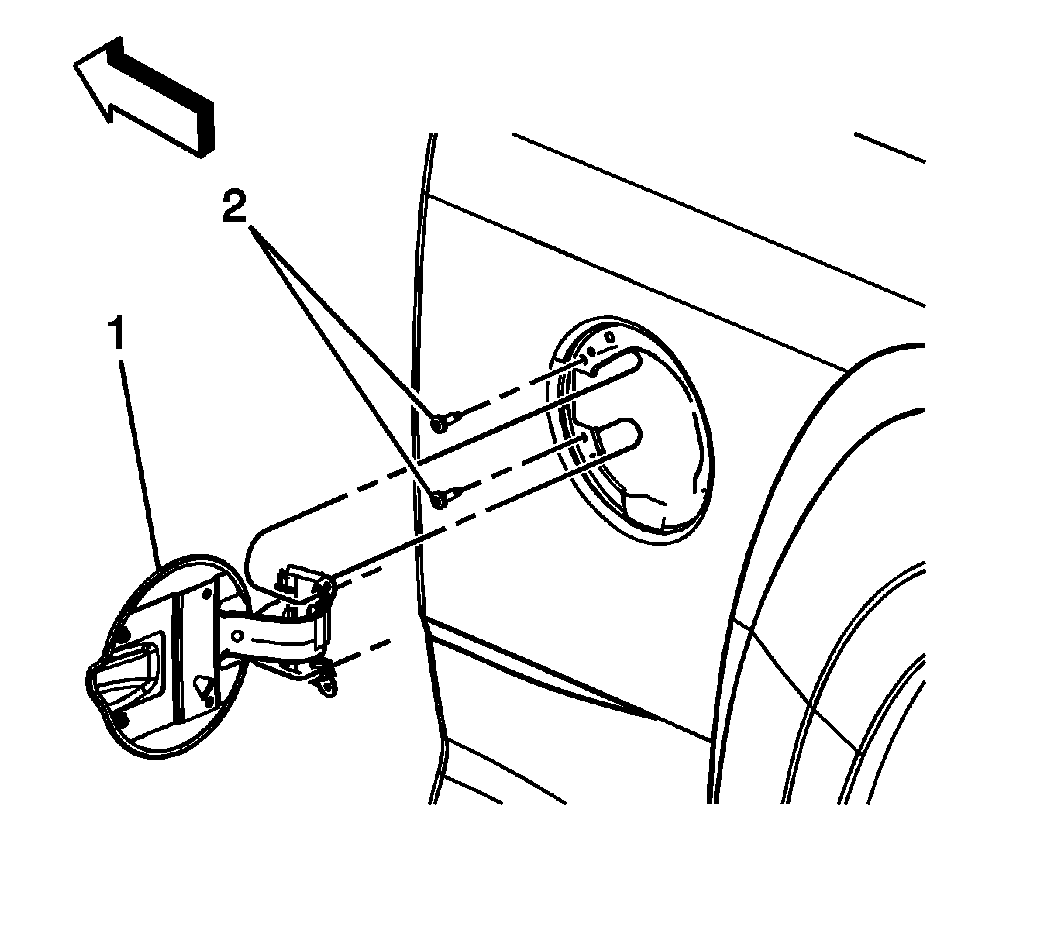

    Fig 1: View Of Fuel Filler Door
    GM1373067Courtesy of GENERAL MOTORS CORP.
  1. Remove the screws (2) that retain the fuel filler door to the body.
  2. Remove the fuel filler door (1) from the body.
