Removal Procedure

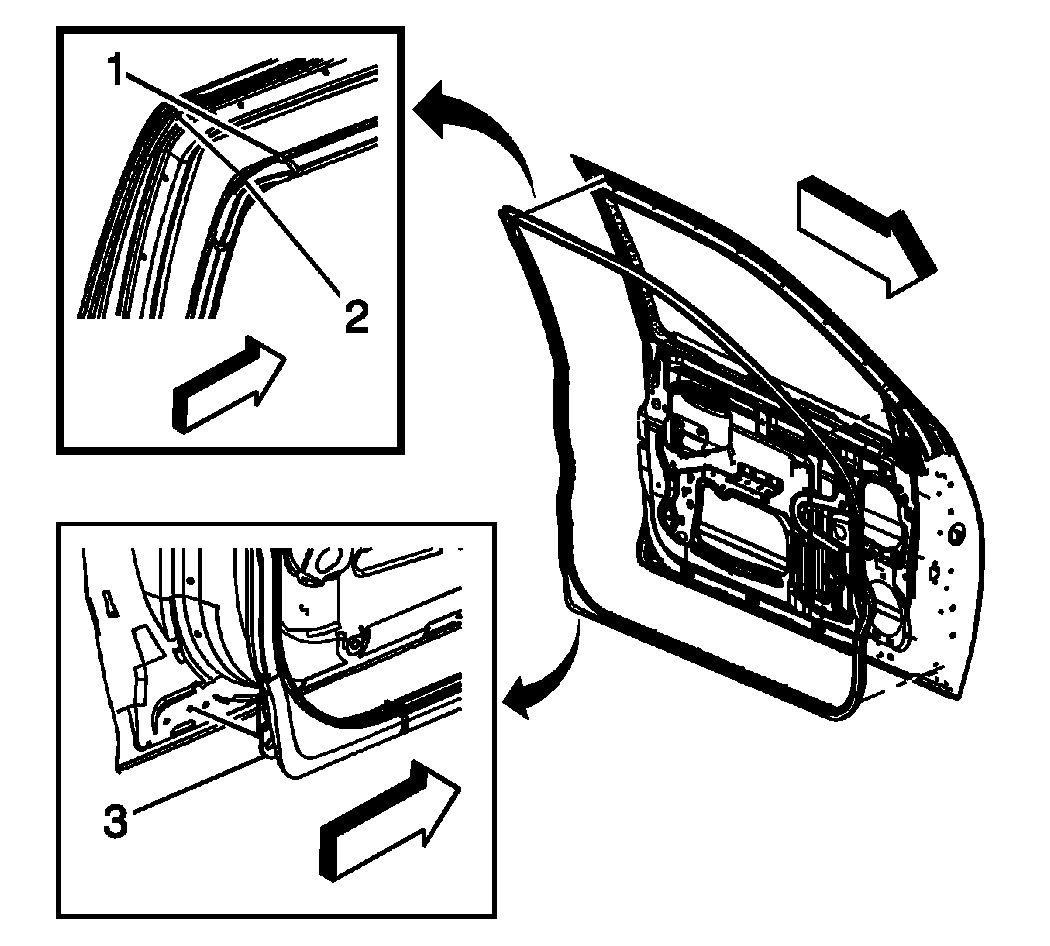

    Fig 1: View Of Front Door Weatherstrip
    GM1246705Courtesy of GENERAL MOTORS CORP.
  1. Open the front door.
  2. Remove the upper weatherstrip mold from the door by removing the integral weatherstrip pushpin (2) from the door using J 38778  , or equivalent.
  3. Remove the lower weatherstrip mold from the door removing the integral weatherstrip pushpin (3) from the door using J 38778  , or equivalent.
  4. Remove the weatherstrip from around the door by inserting J 38778  , or equivalent, under the weatherstrip (1), and releasing the integral retainers from the door frame.
  5. Remove the weatherstrip from the door.
