Removal Procedure

  1. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
  2. Remove the front inside door handle.
  3. Remove the front door water deflector. Refer to Front Side Door Water Deflector Replacement .
  4. Remove the outside rearview mirror. Refer to Mirror Replacement .
  5. Remove the front door outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
  6. Remove the front door window. Refer to Front Side Door Window Replacement .
  7. Remove the front door window regulator. Refer to Front Side Door Window Regulator Replacement .
  8. Remove the front door window weatherstrip. Refer to Front Side Door Window Weatherstrip Replacement .
  9. Remove the front door window run channel. Refer to Front Side Door Window Channel Replacement .
  10. Remove the front door outside handle. Refer to Door Handle Replacement - Front Outside .
  11. Remove the front door lock. Refer to Front Side Door Lock Replacement .
  12. Remove the inflatable restraint side impact sensor. Refer to Inflatable Restraint Side Impact Sensor Replacement .
  13. Remove the front door weatherstrip. Refer to Front Side Door Weatherstrip Replacement (Extended)  or Front Side Door Weatherstrip Replacement (Regular, Crew) .
  14. Remove the front door speaker. Refer to Radio Front Side Door Speaker Replacement .
  15. Remove the front door check link. Refer to Front Side Door Check Link Replacement .
  16. Remove the front door wiring harness. Refer to Front Side Door Wiring Harness Replacement .

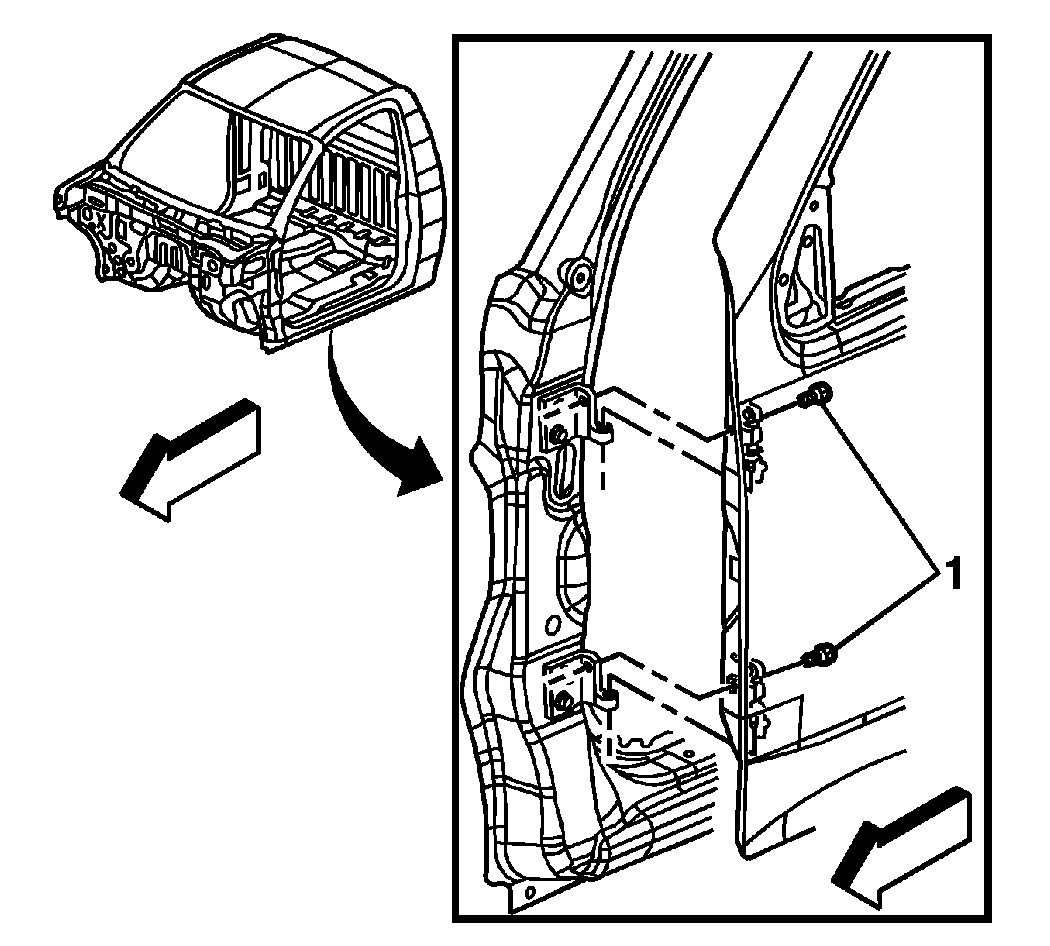

    17. Fig 1: View Of Front Door Hinge Keeper Strap Retaining Bolts
    GM1256436Courtesy of GENERAL MOTORS CORP.
  17. Remove the bolts (1) retaining the front door hinge keeper straps.
  18. With an assistant, lift the front door up off the body side hinges.
  19. Remove the front door side hinges. Refer to Front Side Door Hinge Replacement - Body Side .
