Removal Procedure

    Fig 1: View Of Front Door Check Link Retaining Bolt
    GM1256449Courtesy of GENERAL MOTORS CORP.
  1. Open the front door.
  2. Remove the bolt retaining the front door check link to the body.
  3. Remove the front door wiring harness grommet from the body, and disconnect the door wiring harness connectors. Refer to Front Side Door Wiring Harness Replacement .
    4. Fig 2: View Of Front Door Hinge Keeper Strap Retaining Bolts
    GM1256436Courtesy of GENERAL MOTORS CORP.
  4. Remove the bolts (1) retaining the front door hinge keeper straps.
  5. With an assistant, lift the front door up off the body side hinges, and place on a clean protected surface.

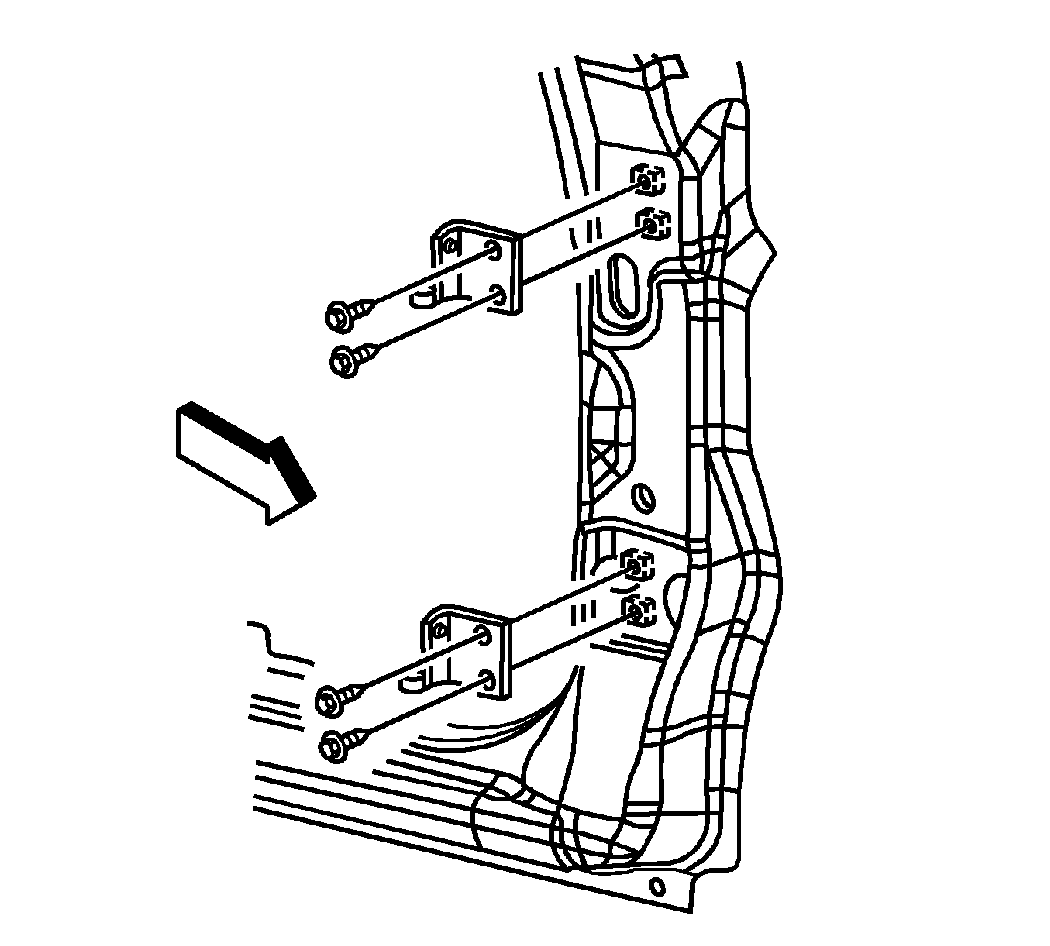

    6. Fig 3: View Of Front Body Side Hinges
    GM1265473Courtesy of GENERAL MOTORS CORP.
  6. Clean the mounting surfaces of the body side hinges with a clean rag, and mark the front door hinge locations with a grease pencil, or other suitable marker.
  7. Remove the bolts retaining the body side hinges to the body.
  8. Remove the hinges from the body.
