Removal Procedure

  1. Remove the front door trim panel. Refer to Front Side Door Trim Panel Replacement .
  2. Remove the front door water deflector. Refer to Front Side Door Water Deflector Replacement .

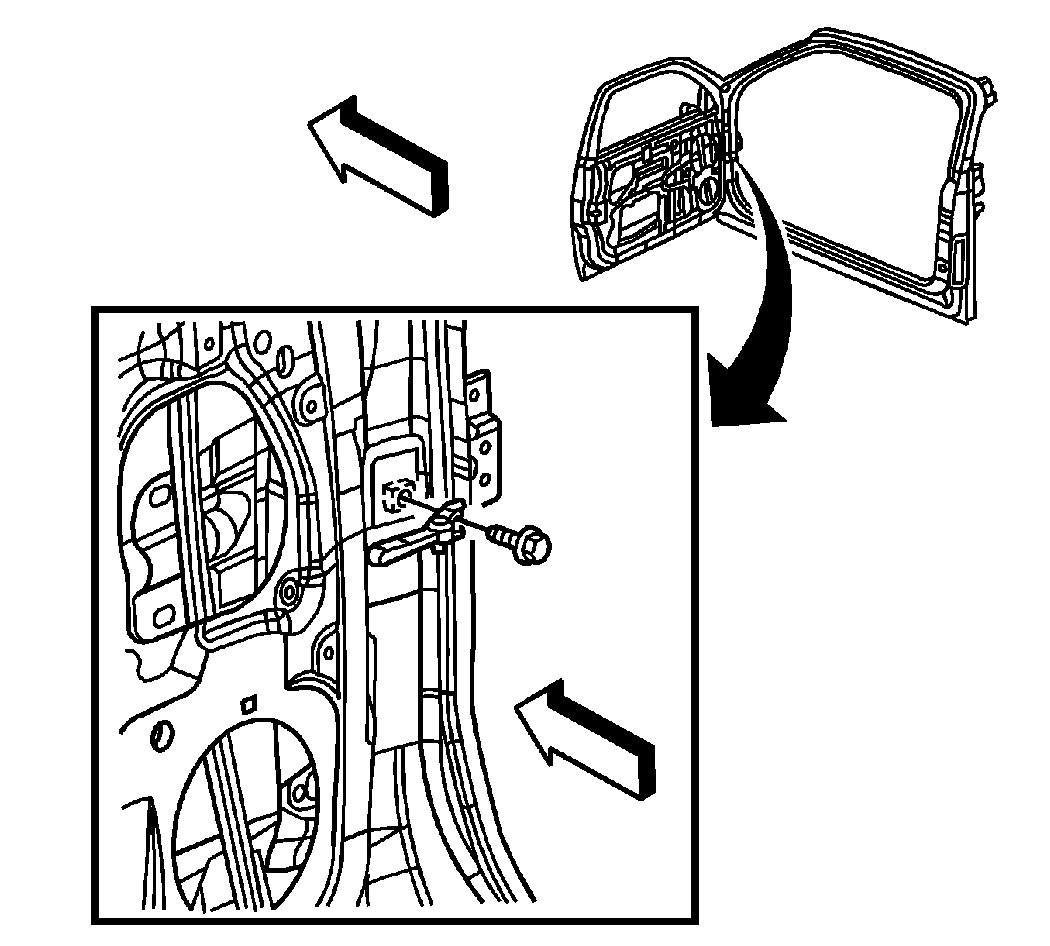

    3. Fig 1: View Of Front Door Check Link Retaining Bolt
    GM1256449Courtesy of GENERAL MOTORS CORP.
  3. Remove the bolt retaining the front door check link to the body.

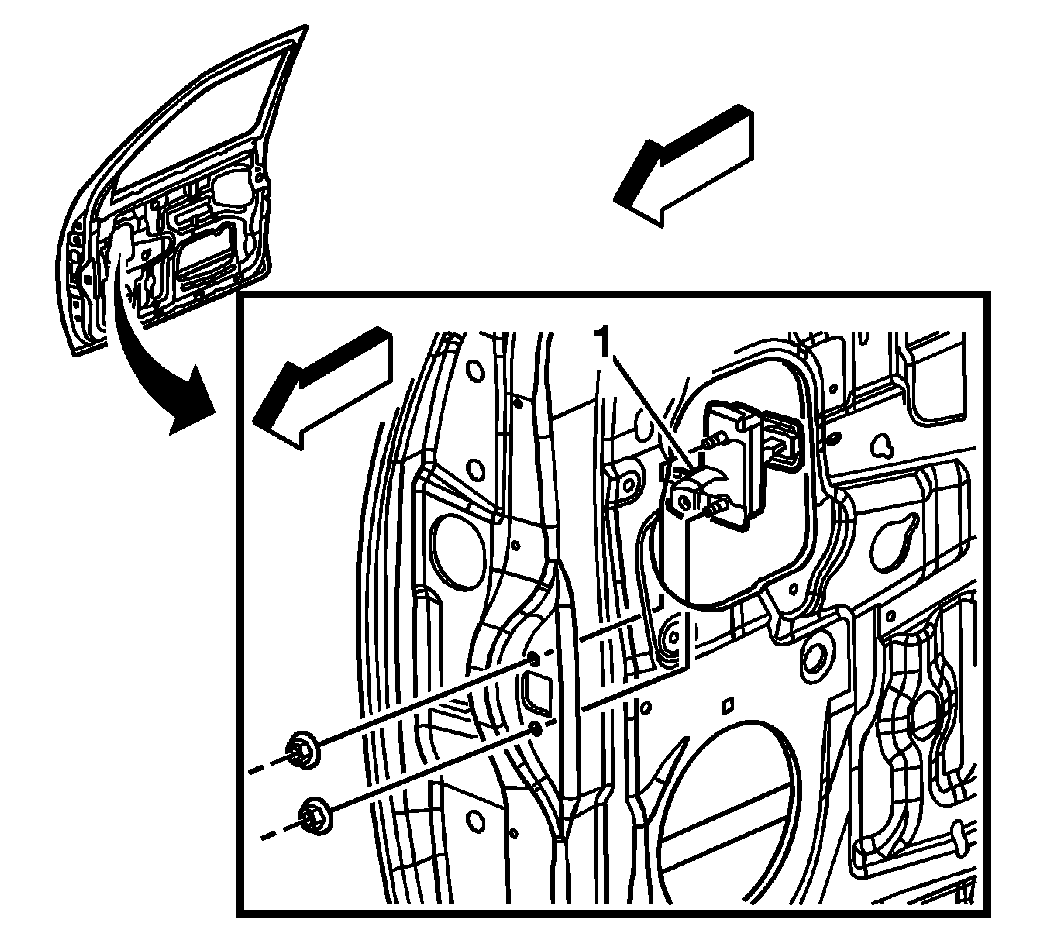

    4. Fig 2: View Of Front Door Check Link Retaining Nuts
    GM1256457Courtesy of GENERAL MOTORS CORP.
  4. Remove the nuts retaining the front door check link to the door.
  5. Remove the front door check link (1) from the door.
