Adjustment Procedure

  1. With the door closed, inspect the following gaps. If adjustment is necessary, loosen the front door hinge bolts and adjust the door by moving the door in the following directions:
    • Upward or downward
    • Forward or rearward
    • Inward or outward

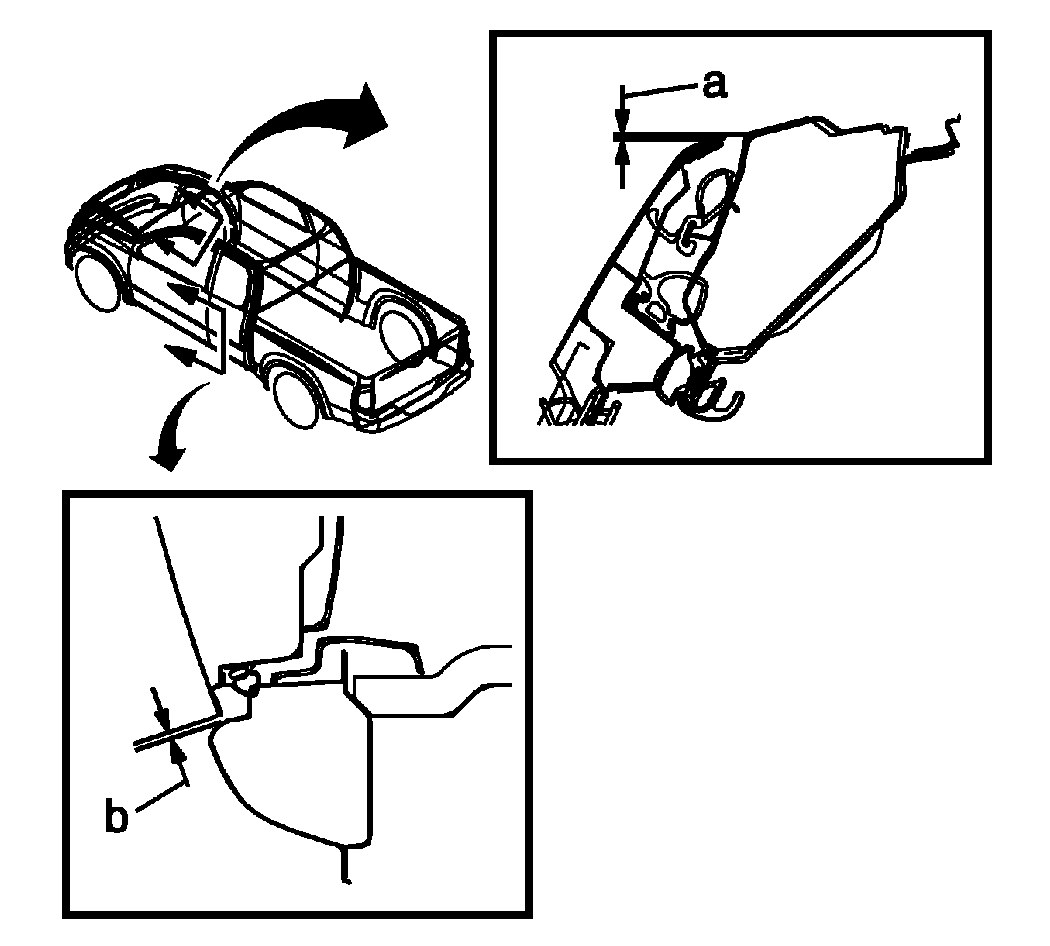

    2. Fig 1: View Of Front Door To Rocker Panel Gap & Front Door To Roof Flushness
    GM1302491Courtesy of GENERAL MOTORS CORP.
  2. Adjust the front door to rocker panel gap (B) to 4.5-6.5 mm (0.18-0.26 in).
  3. Adjust the front door to roof flushness (A) to 0-1.5 mm (0-0.06 in).
    4. Fig 2: View Of Front Door To Rear Side Access Door Gap & Front Door To Rear Side Access Door Flushness
    GM1302495Courtesy of GENERAL MOTORS CORP.
  4. Adjust the front door to rear side access door gap (A) to 3.5-6.5 mm (0.14-0.26 in).
  5. Adjust the front door to rear side access door flushness (B) to 0-1.5 mm (0-0.06 in).
    6. NOTE: Refer to Fastener Notice .
  6. When the proper adjustment specifications are set, tighten the hinge bolts.

    Tighten:  Tighten the hinge bolts to 25 N.m (18 lb ft).
