Installation Procedure

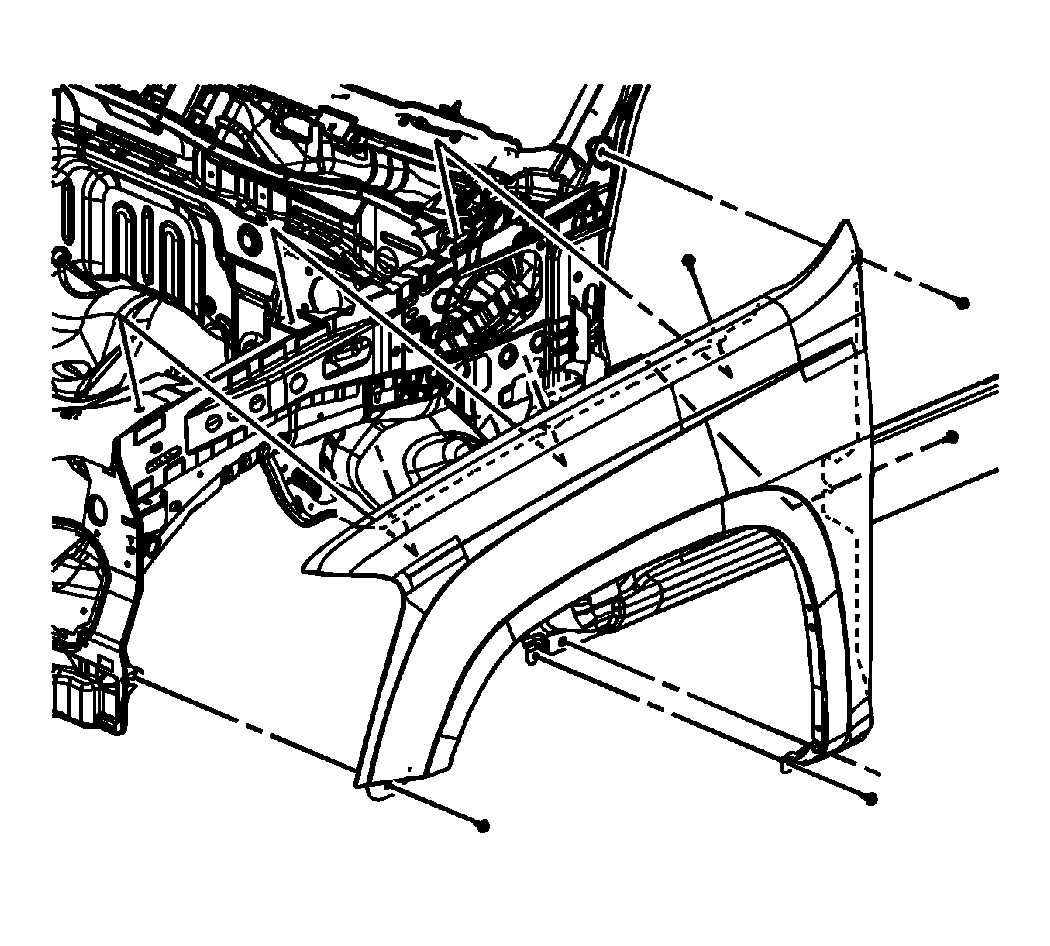

    Fig 1: View Of Front Fender
    GM1313670Courtesy of GENERAL MOTORS CORP.
  1. Position the fender to the vehicle.

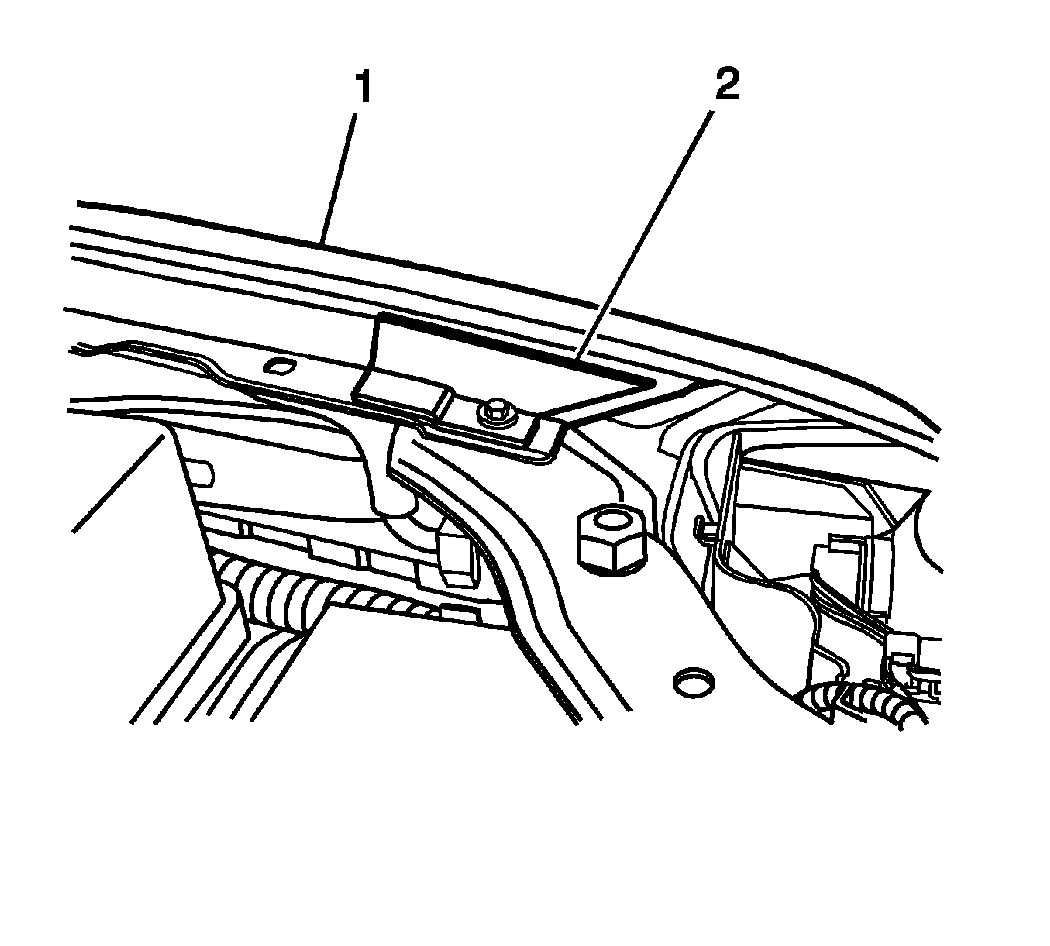

    2. Fig 2: View Of Fender & Fender Reinforcement
    GM1386197Courtesy of GENERAL MOTORS CORP.
  2. Install the fender reinforcement (2) to the fender (1).
    3. Fig 3: View Of Front Fender
    GM1313670Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  3. Install the bolts that retain the fender to the vehicle.

    Tighten:  Tighten the bolts to 10 N.m (89 lb in).

    4. Fig 4: View Of Side Hood Bumper
    GM742125Courtesy of GENERAL MOTORS CORP.
  4. Install the hood bumper to the vehicle.
  5. Install the wheelhouse panel. Refer to Front Wheelhouse Liner Replacement .
  6. Remove the protective tape.
