Removal Procedure

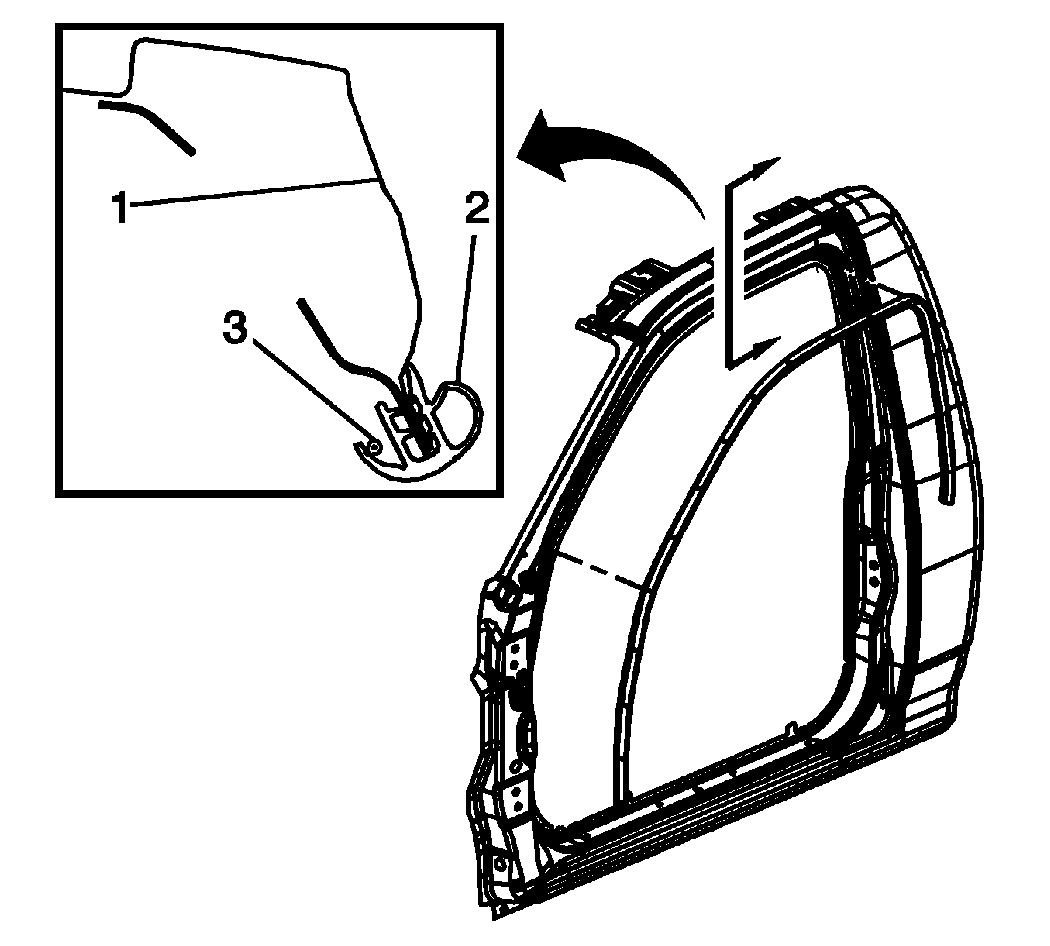

    Fig 1: View Of Front Door Opening Weatherstrip - Regular Cab, Crew Cab
    GM1246684Courtesy of GENERAL MOTORS CORP.
  1. Open the front door.
  2. Remove the lower center pillar panel. Refer to Center Pillar Lower Trim Panel Replacement .
  3. Remove the front door opening weatherstrip (2) from the door opening pinchweld flange (1).
  4. Remove the front door opening weatherstrip from the vehicle.
