Removal Procedure

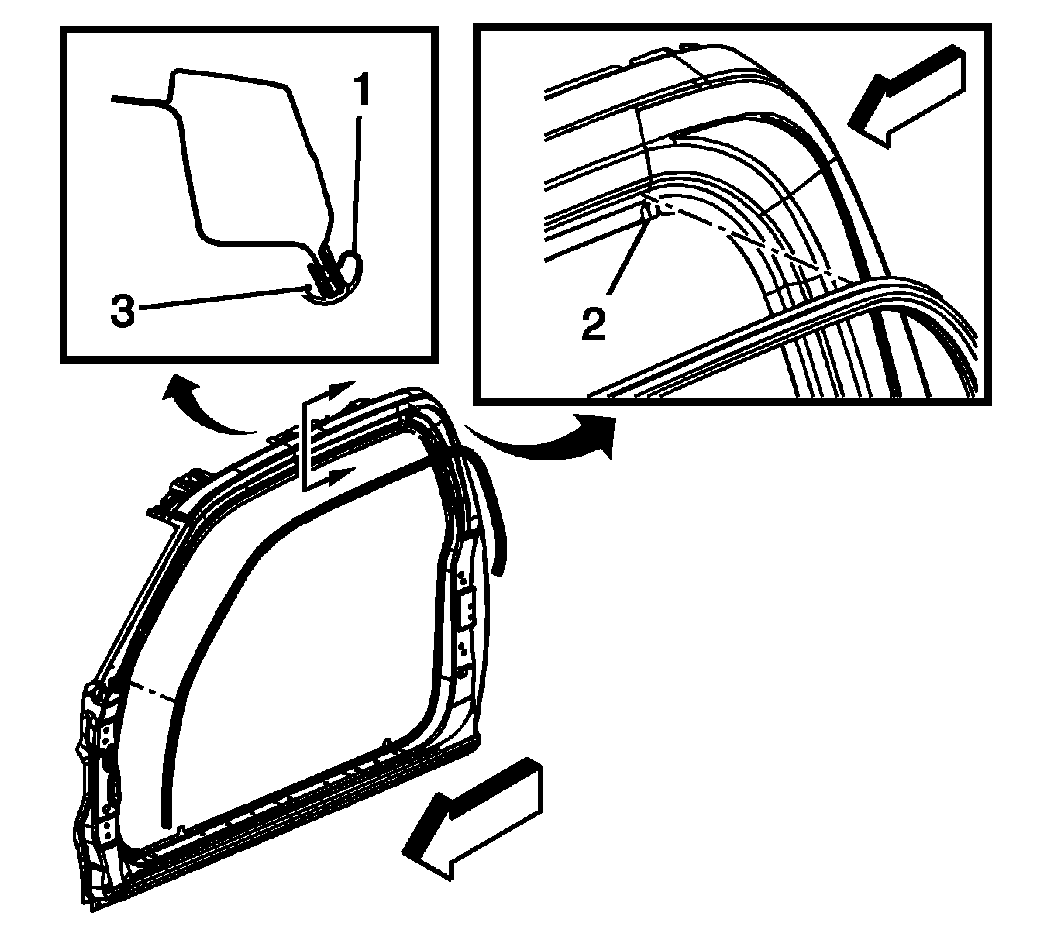

    Fig 1: View Of Front Door Opening Weatherstrip - Extended Cab
    GM1246702Courtesy of GENERAL MOTORS CORP.
  1. Open the front and rear door.
  2. Remove the front door opening weatherstrip (1) from the opening pinchweld flange.
  3. Remove the front door opening weatherstrip from the vehicle.
