Installation Procedure

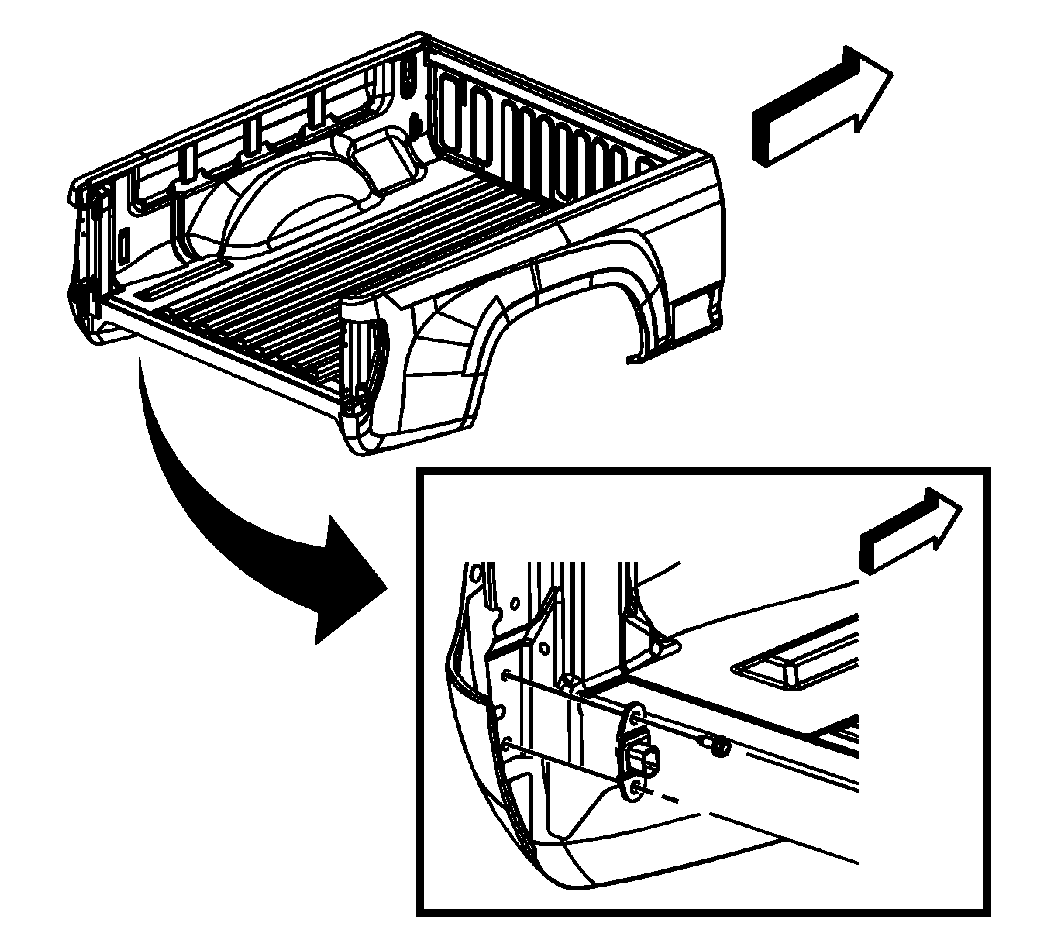

    Fig 1: View Of Bodyside Lower Endgate Hinge
    GM1245768Courtesy of GENERAL MOTORS CORP.
  1. Install the endgate hinge to the body.
    2. NOTE: Refer to Fastener Notice .
  2. Install the bolts retaining the endgate hinge to the body.

    Tighten:  Tighten the endgate hinge bolts to 20 N.m (15 lb ft).

  3. Install the endgate to the vehicle. Refer to EndGate Replacement .
