Removal Procedure

  1. Remove the rear side access door trim panel. Refer to Rear Side Door Trim Panel Replacement .

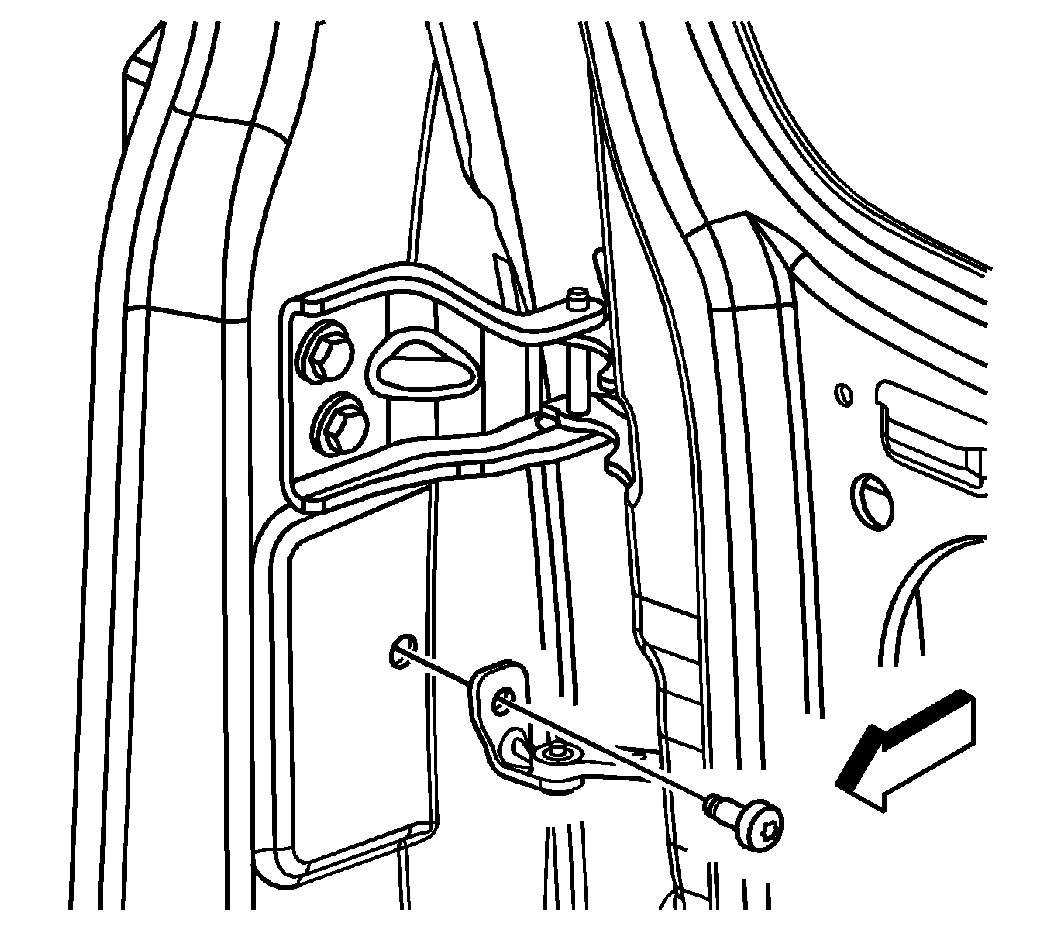

    2. Fig 1: View Of Rear Side Access Door Check Link Retaining Bolt
    GM1256442Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt retaining the rear side access door check link to the body.

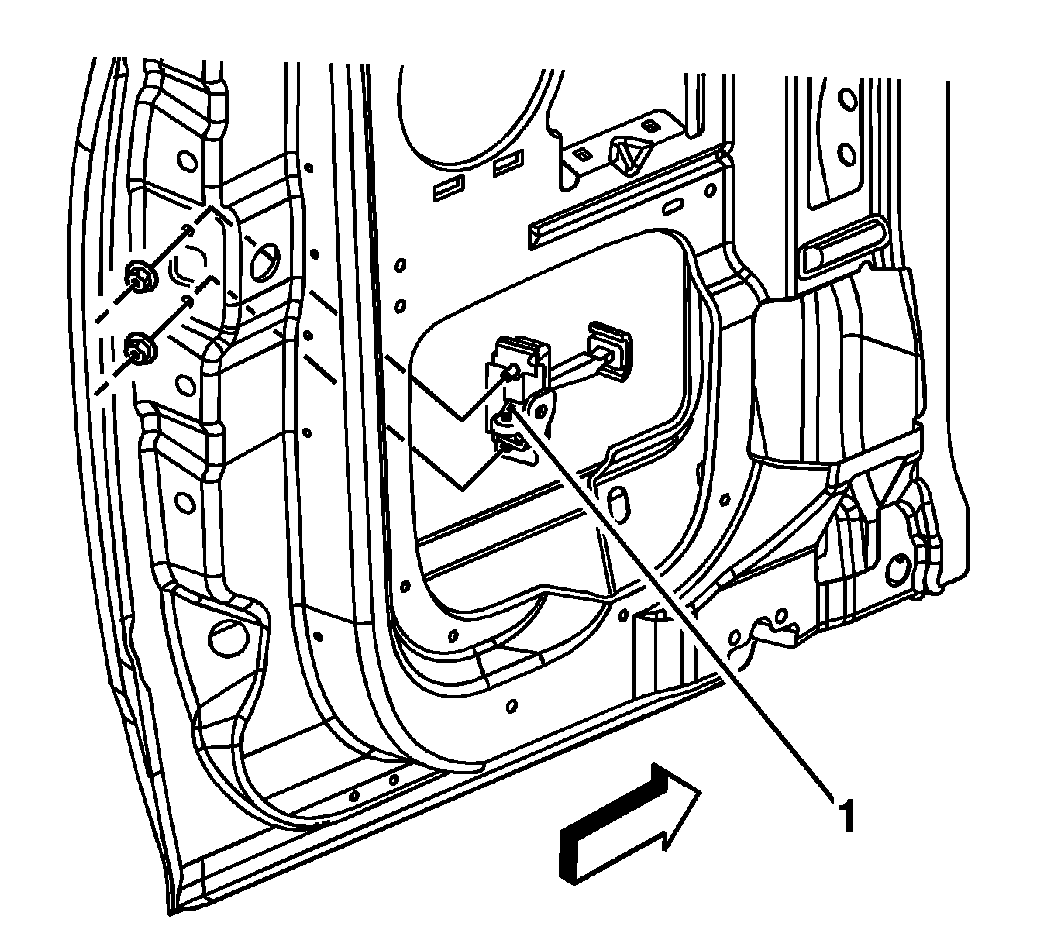

    3. Fig 2: View Of Rear Side Access Door Check Link Retaining Nuts
    GM1256444Courtesy of GENERAL MOTORS CORP.
  3. Remove the nuts retaining the rear side access door check link to the door.
  4. Remove the rear side access door check link (1) from the door.
