Installation Procedure

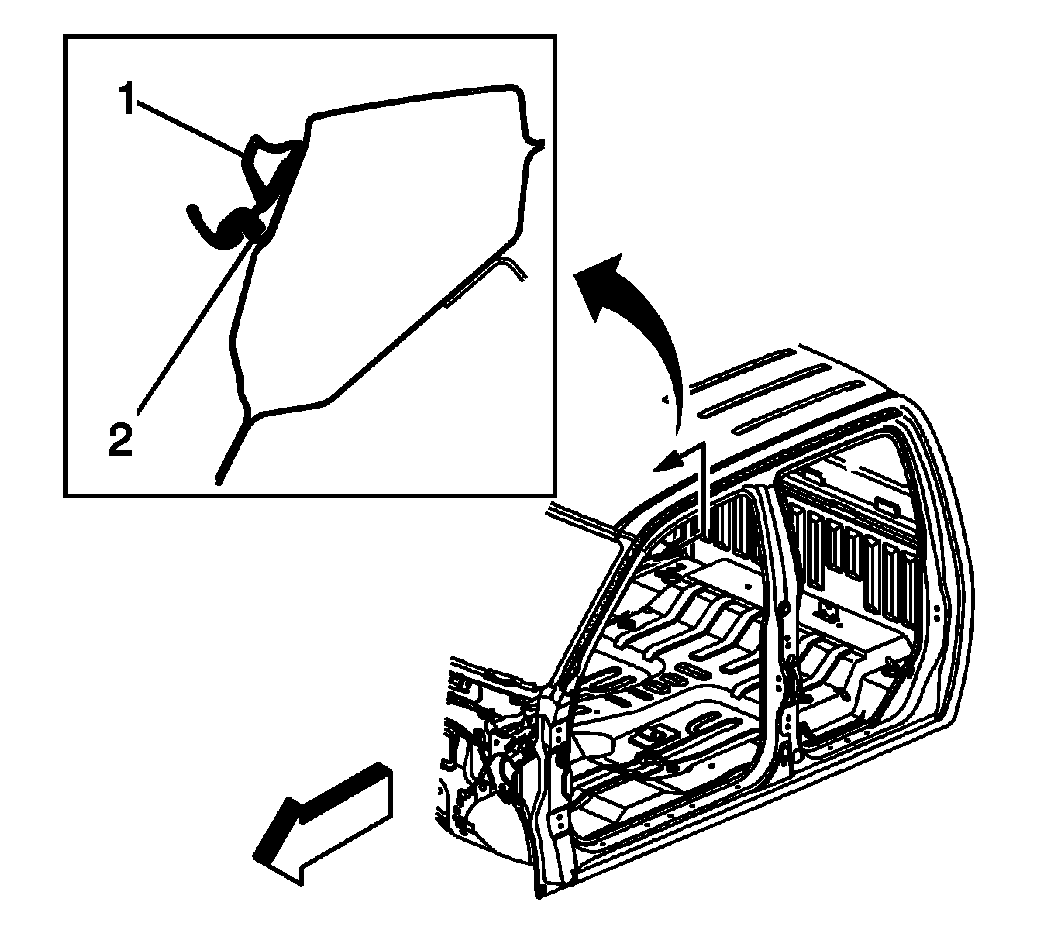

    Fig 1: View Of Auxiliary Weatherstrip
    GM1246677Courtesy of GENERAL MOTORS CORP.
  1. Install the auxiliary weatherstrip to the roof pinchweld flange by pressing the weatherstrip (1) onto the roof flange (2), until it is fully seated.
  2. Close the front and rear door, as necessary.
