Wiper/Washer Component Views
Wiper/Washer Component Views

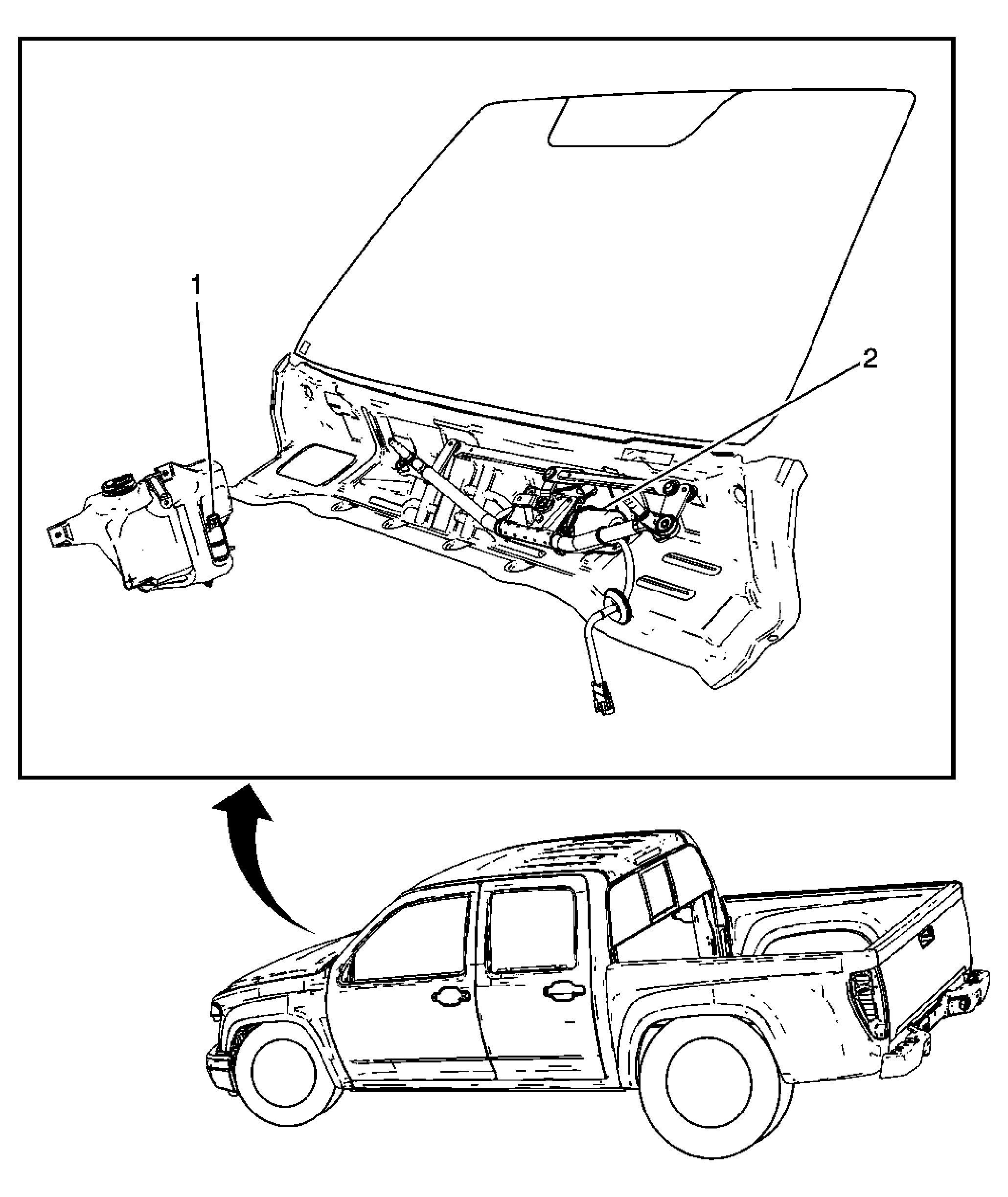

Fig 1: Wiper Components
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Windshield Washer Fluid Pump
2
Windshield Wiper Motor
