Interior Lights Schematics

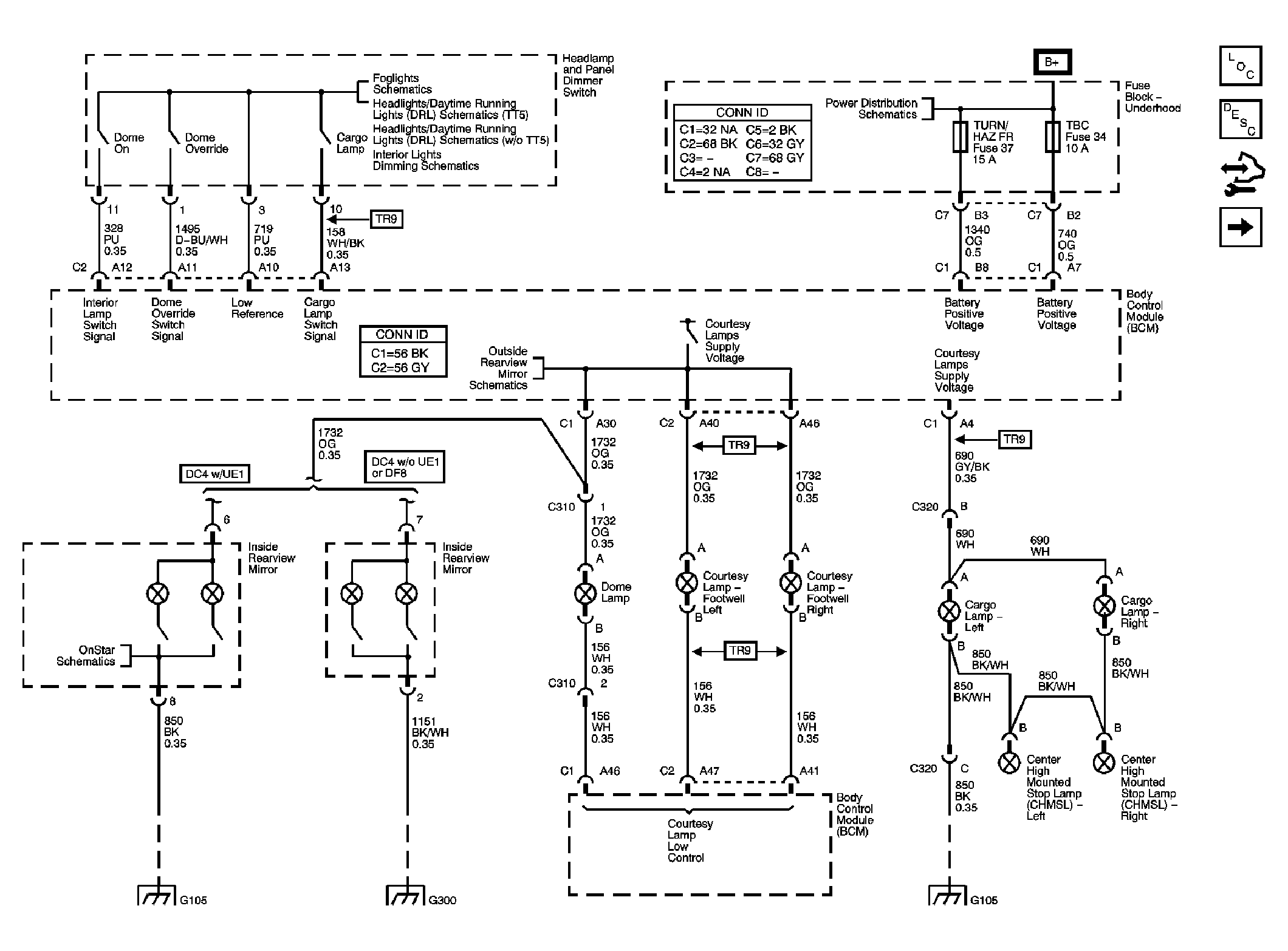

Fig 1: Inside Rearview Mirror, Dome Lamp, Footwell Courtesy Lamps, and Cargo Lamp
GM1775242Courtesy of GENERAL MOTORS CORP.

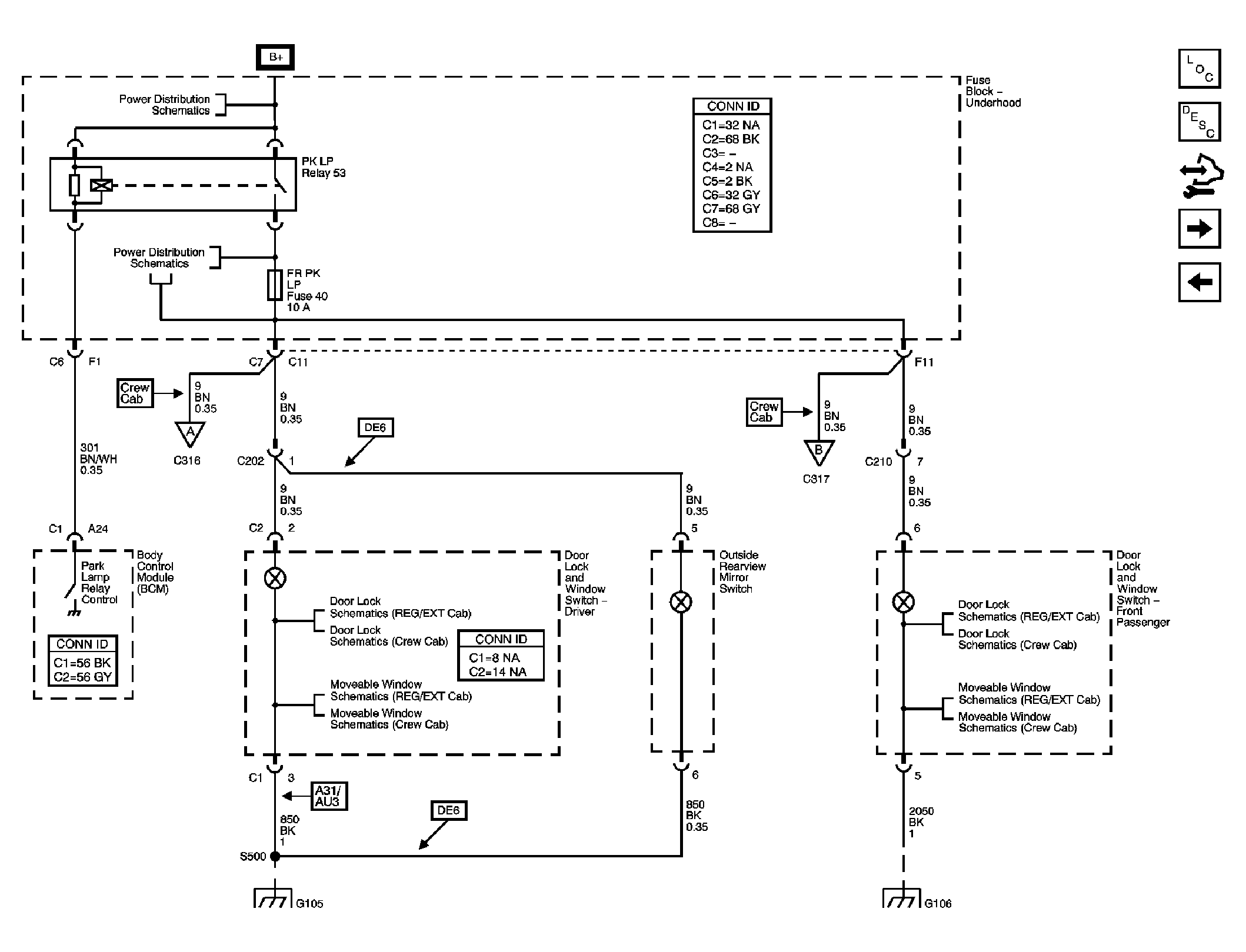

Fig 2: Door Lock, Window Switches, and Outside Rearview Mirror Switch
GM1775265Courtesy of GENERAL MOTORS CORP.

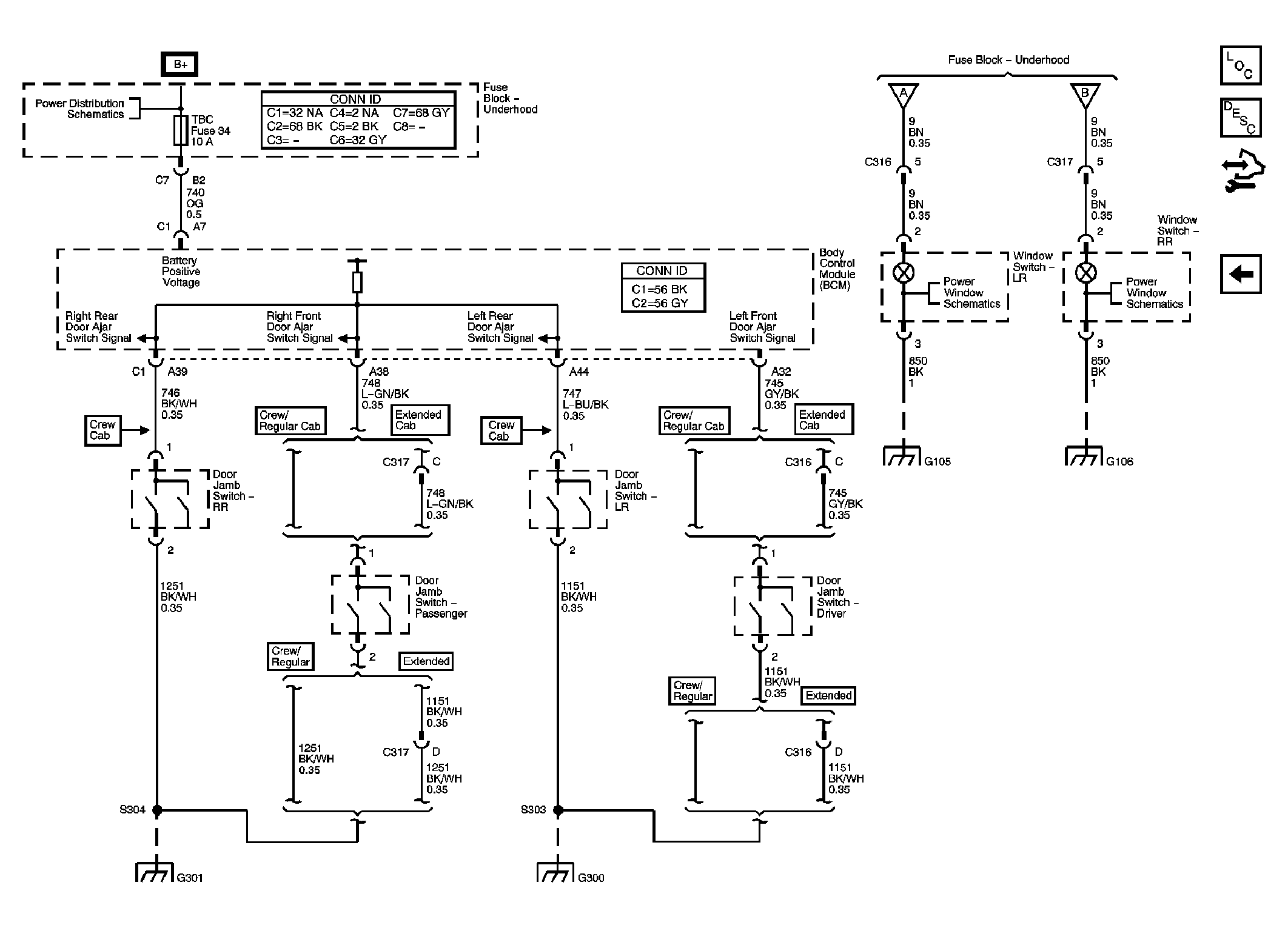

Fig 3: Door Jamb Switches
GM1775275Courtesy of GENERAL MOTORS CORP.
