Exterior Lights Schematics

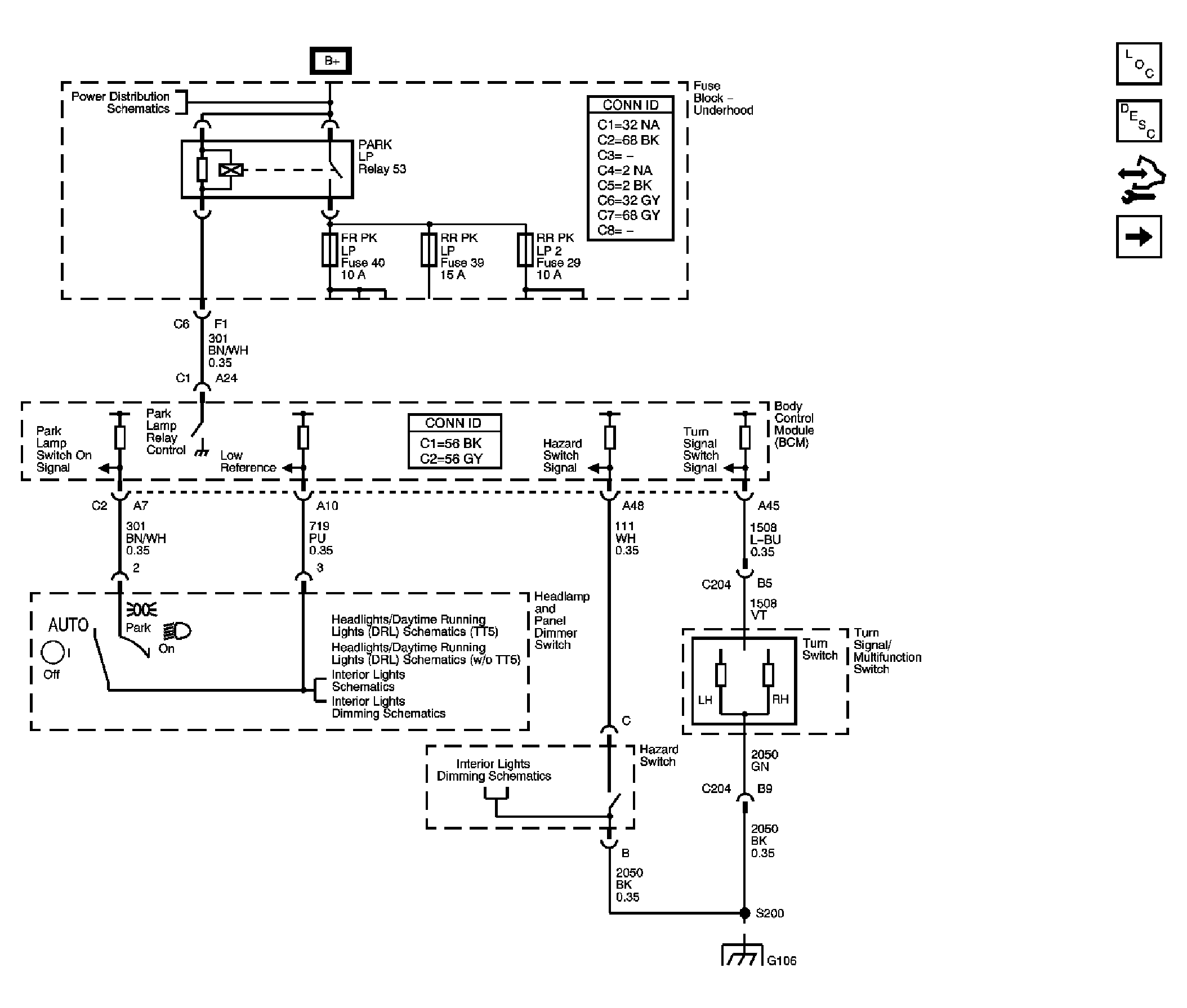

Fig 1: Park Lamp Control, Turn Signal Inputs, and Hazard Switch
GM1775119Courtesy of GENERAL MOTORS CORP.

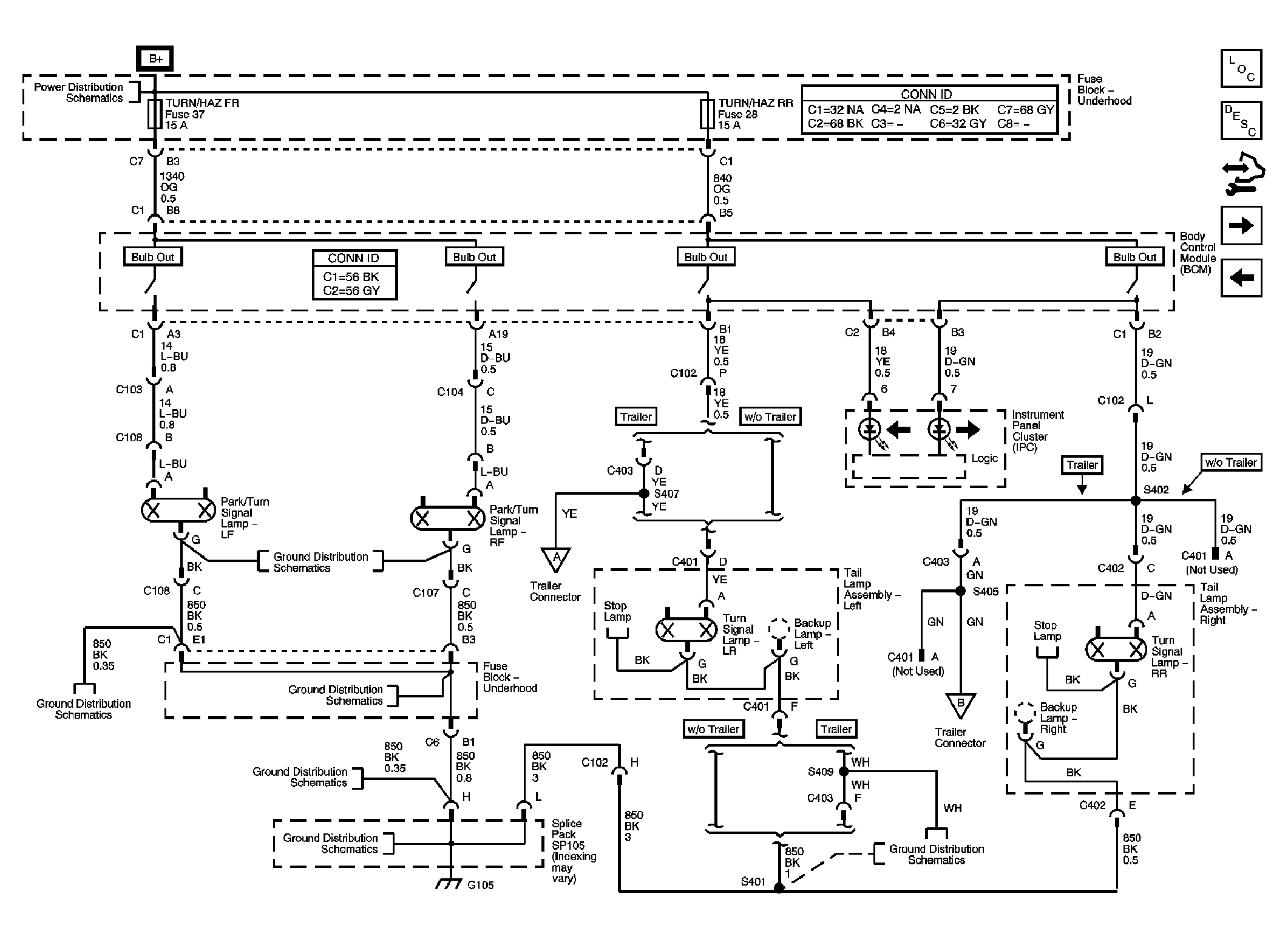

Fig 2: Turn Signal Lamps
GM1775124Courtesy of GENERAL MOTORS CORP.

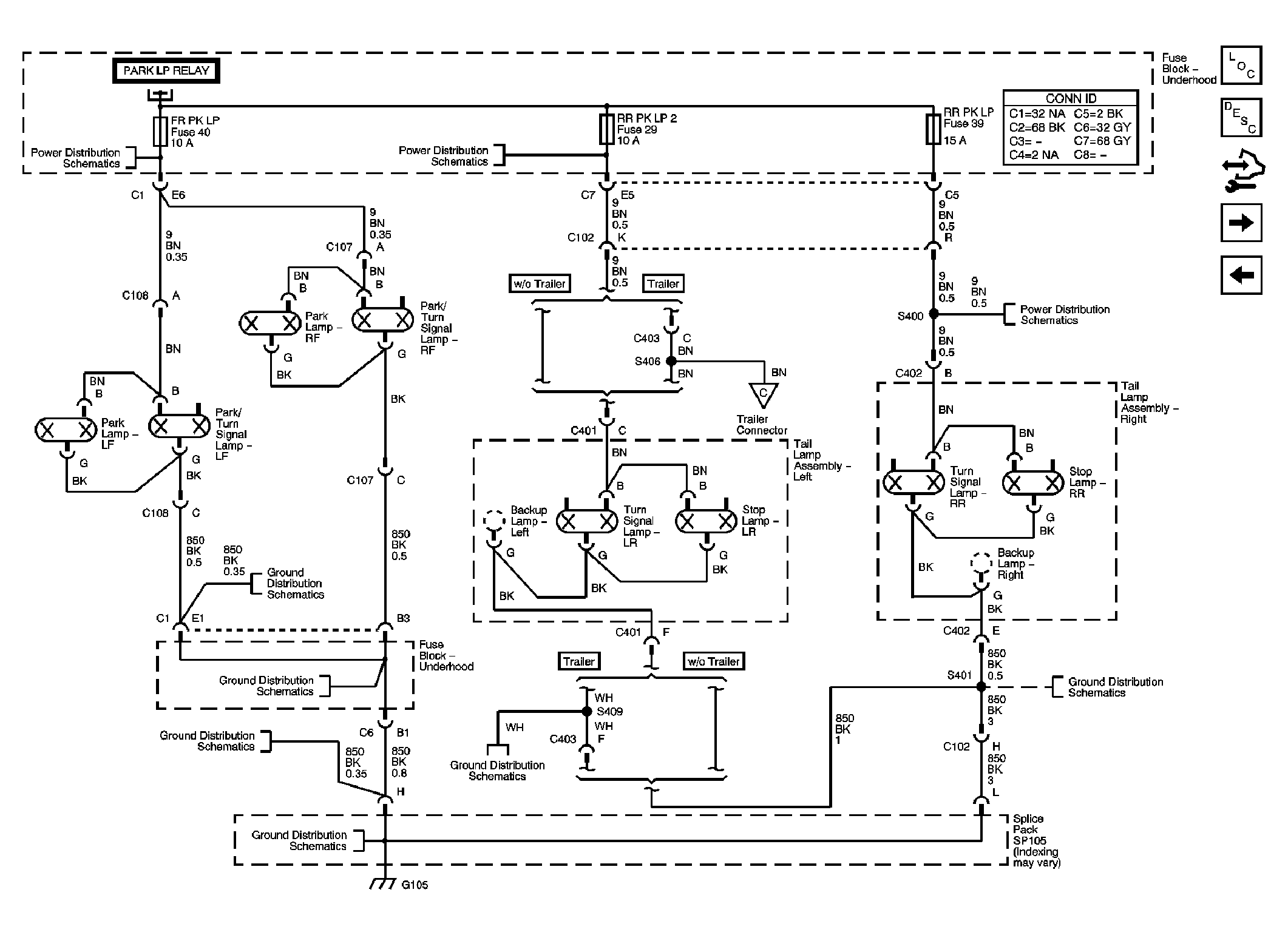

Fig 3: Park Lamps
GM1775131Courtesy of GENERAL MOTORS CORP.

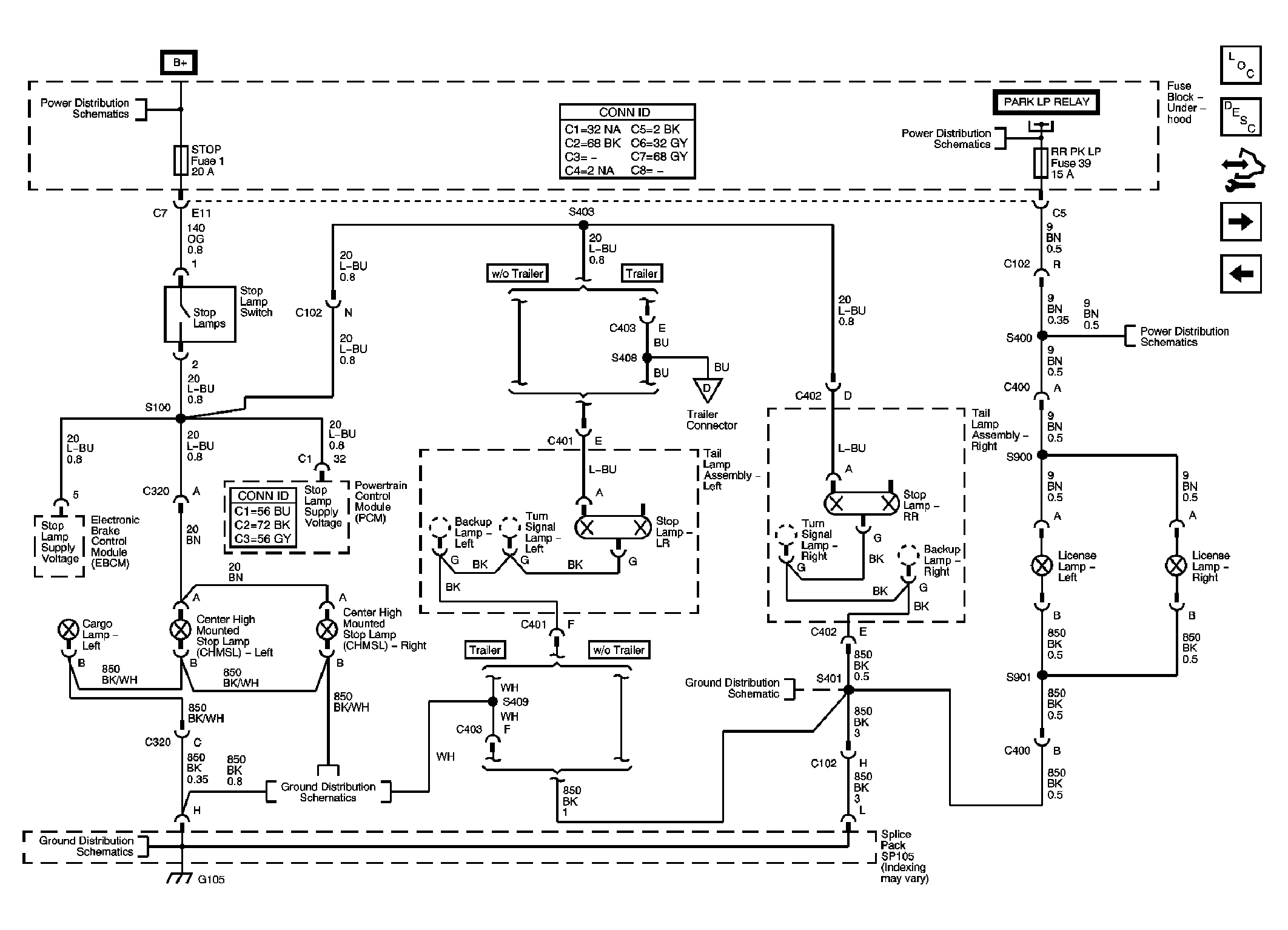

Fig 4: Stop Lamps and License Lamps
GM1775142Courtesy of GENERAL MOTORS CORP.

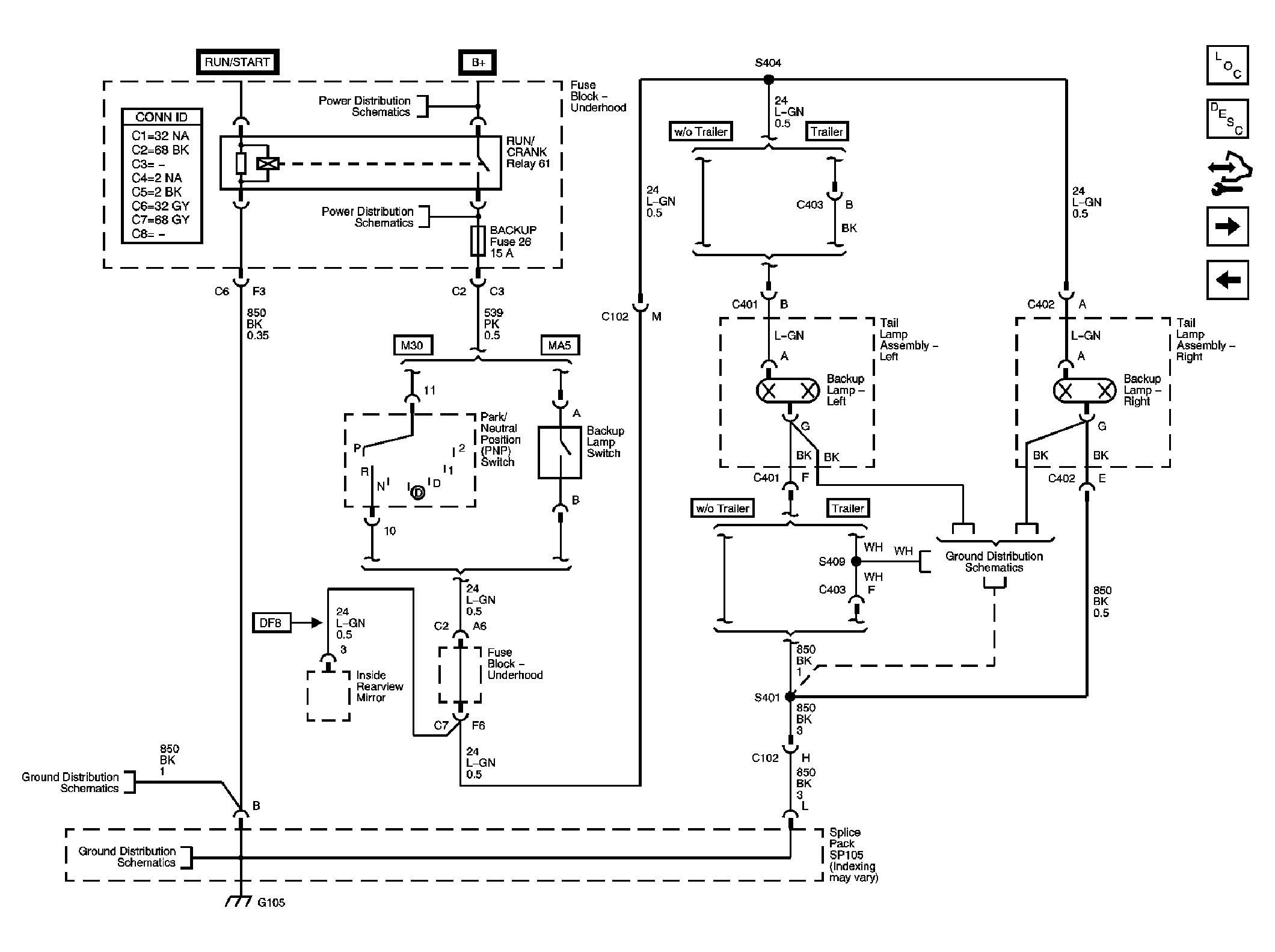

Fig 5: Backup Lamps
GM1775143Courtesy of GENERAL MOTORS CORP.
