Installation Procedure

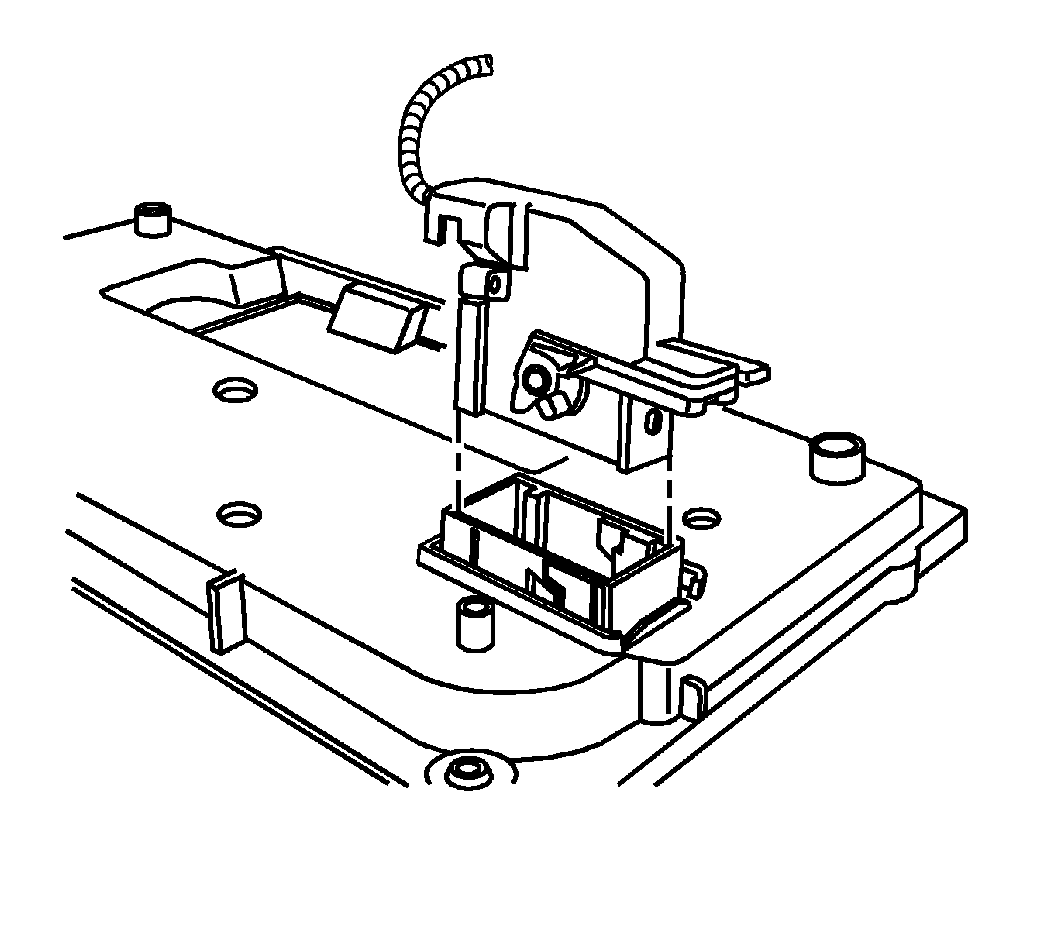

    Fig 1: View Of IPC Electrical Connector
    GM1300436Courtesy of GENERAL MOTORS CORP.
  1. Position the IPC to the I/P.
  2. Ensure the CPA arm is in the open position. Connect the electrical connector to the IPC.
    3. Fig 2: View Of CPA Arm & IPC Electrical Connector
    GM1300433Courtesy of GENERAL MOTORS CORP.
  3. To lock the connector (2), move the CPA arm (1) toward the electrical harness.

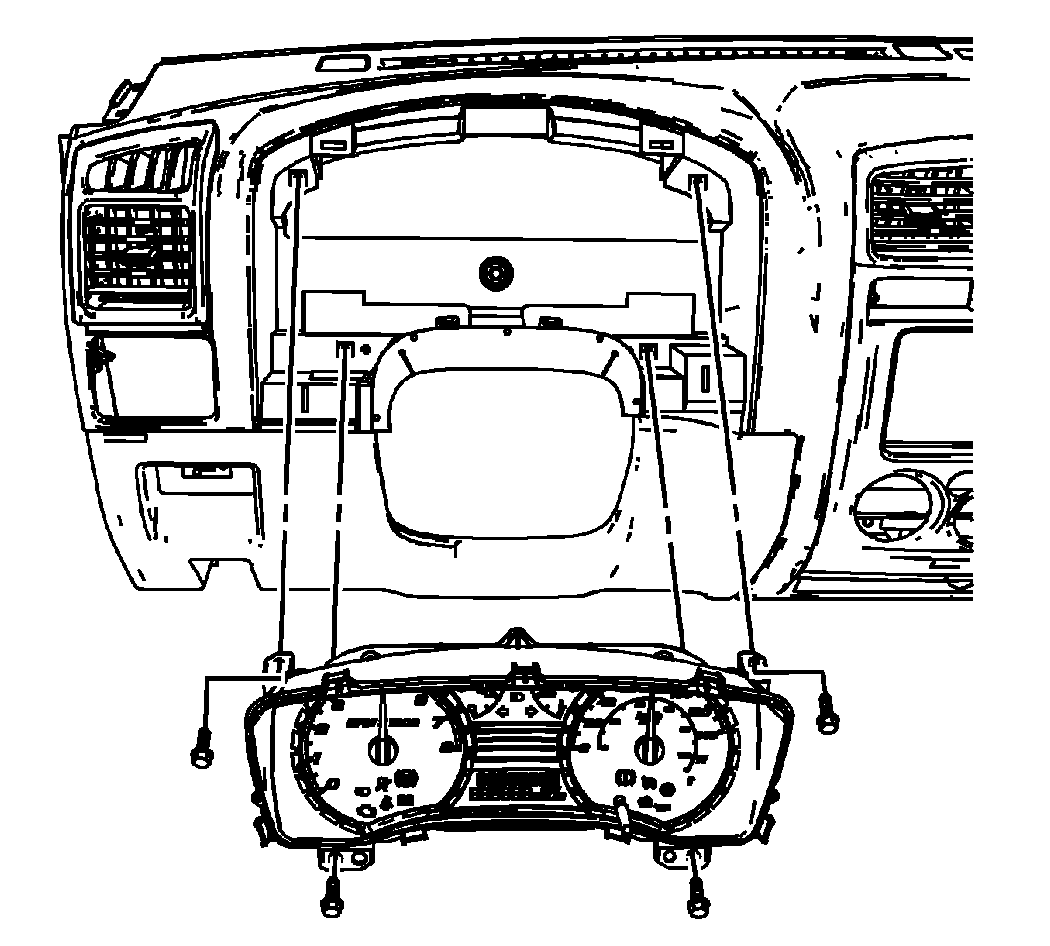

    4. Fig 3: View Of IPC Retaining Screws
    GM1340551Courtesy of GENERAL MOTORS CORP.
  4. Install the IPC to the I/P.
    5. NOTE: Refer to Fastener Notice .
  5. Install the screws retaining the IPC to the I/P.

    Tighten:  Tighten the screws to 2.5 N.m (22 lb in).

  6. Install the IPC bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .
