Removal Procedure

  1. Remove the instrument panel cluster (IPC) bezel. Refer to Instrument Panel Cluster Trim Plate Bezel Replacement .
  2. Remove the IPC. Refer to Instrument Cluster Replacement .

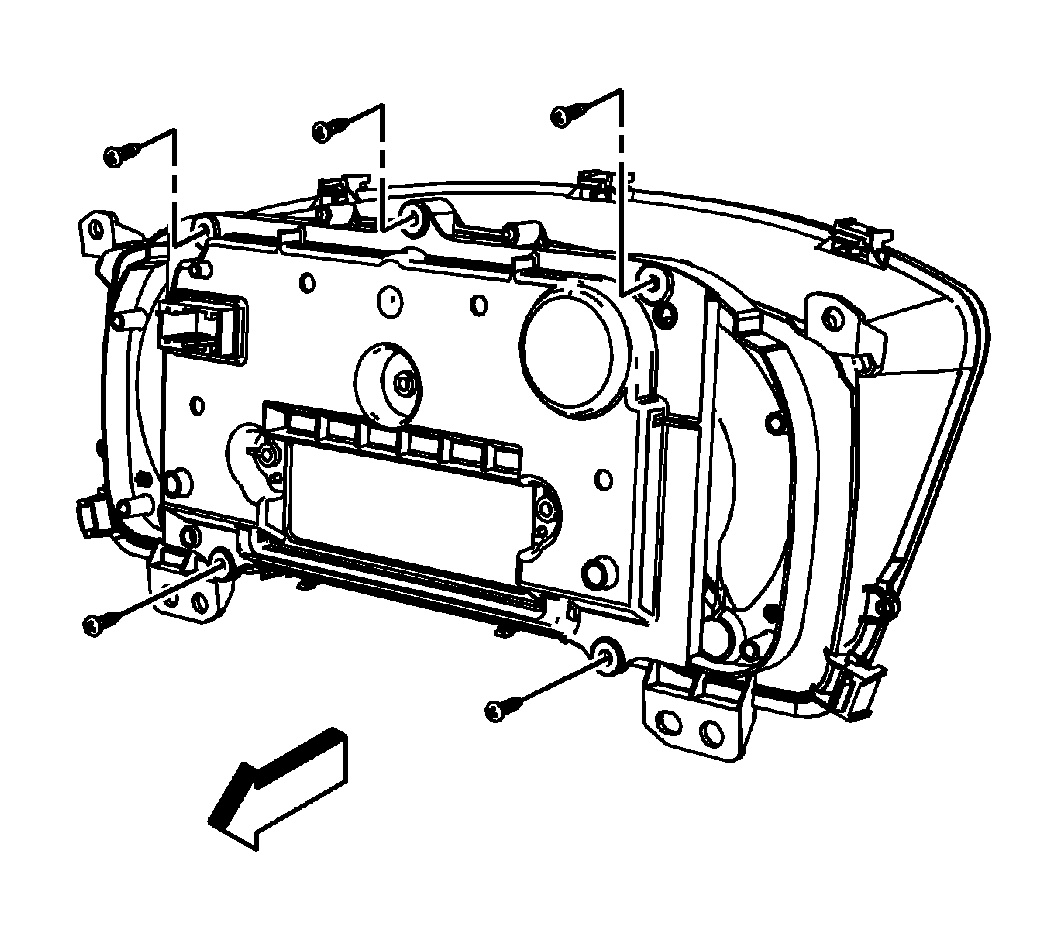

    3. Fig 1: View Of IPC Lens Retaining Screws
    GM1300326Courtesy of GENERAL MOTORS CORP.
  3. Remove the screws retaining the IPC lens.

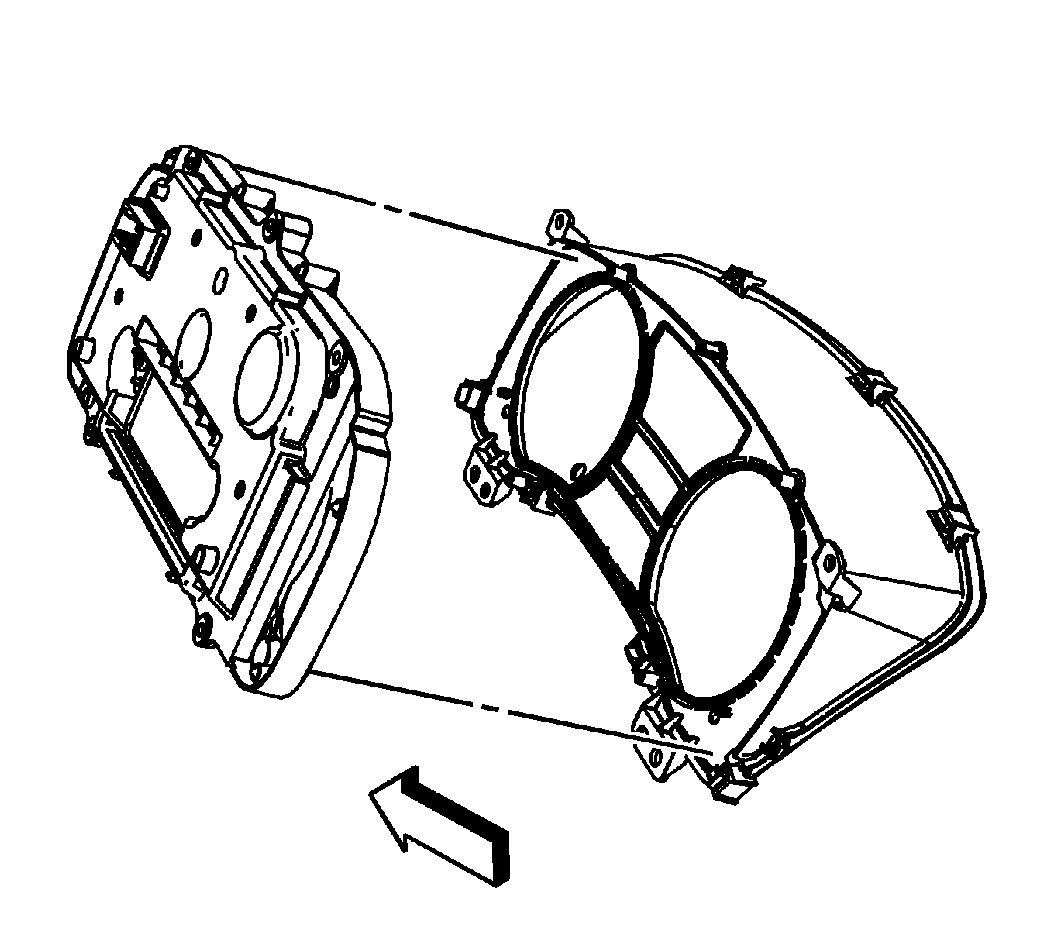

    4. Fig 2: View Of IPC Lens
    GM1300318Courtesy of GENERAL MOTORS CORP.
  4. Remove the lens from the IPC.
