Removal Procedure

  1. Remove the instrument panel (I/P) accessory trim plate. Refer to Instrument Panel Accessory Trim Plate Replacement .

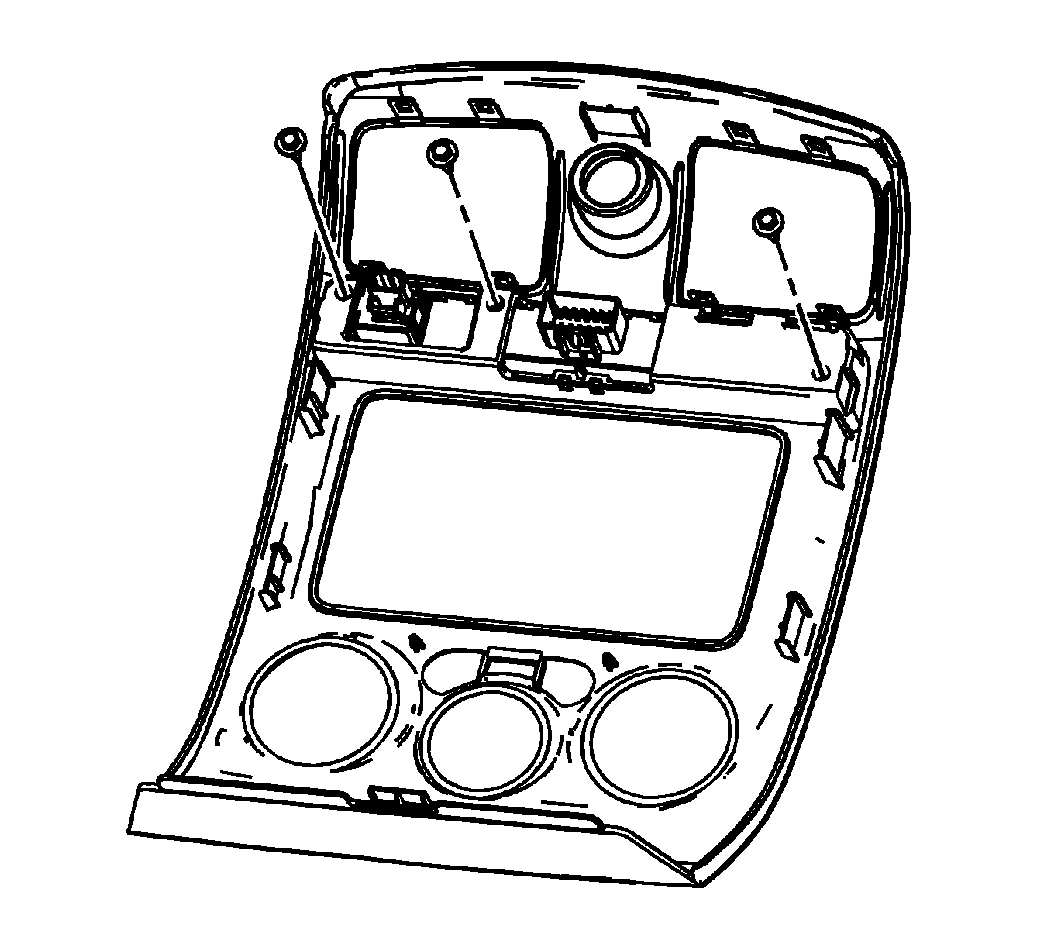

    2. Fig 1: View Of Accessory Switch Fasteners
    GM1251712Courtesy of GENERAL MOTORS CORP.
  2. Remove the fasteners retaining the switch to the trim plate.

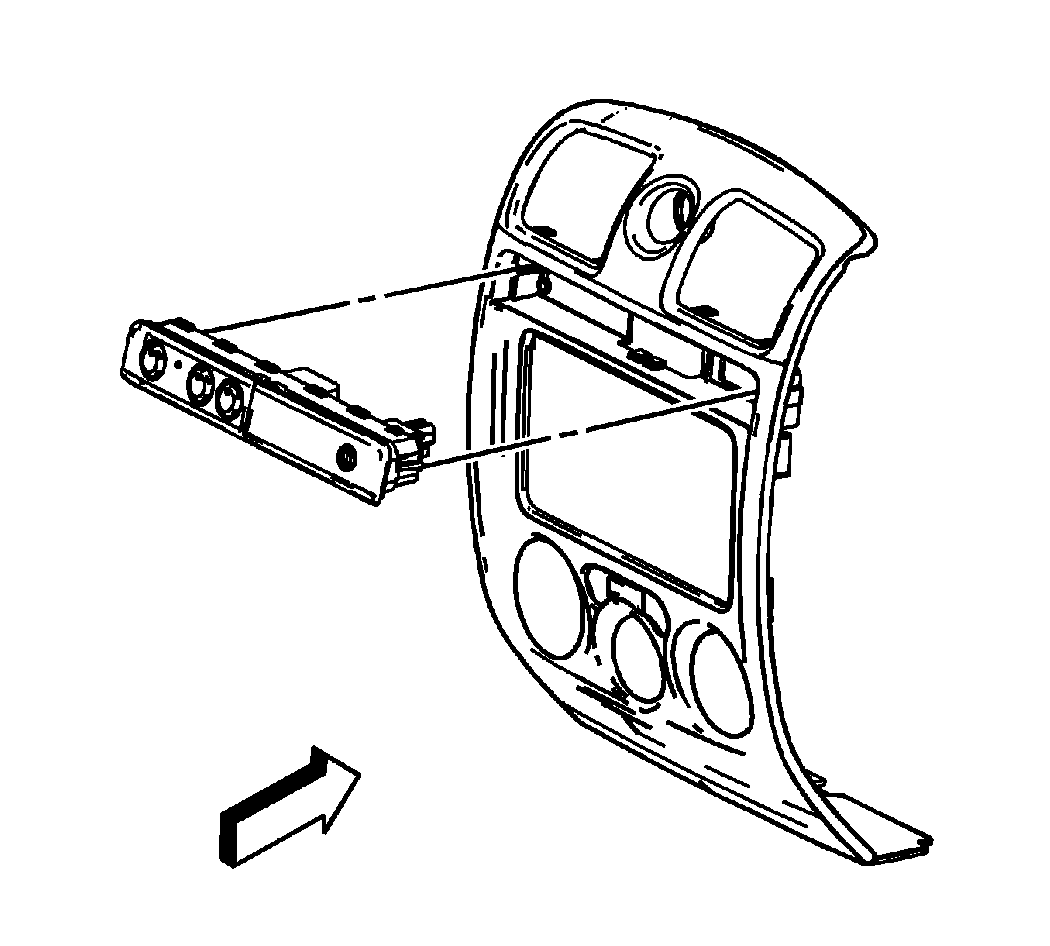

    3. Fig 2: View Of Accessory Switch
    GM1251642Courtesy of GENERAL MOTORS CORP.
  3. Remove the switch from the trim plate.
