Body Control System Schematics

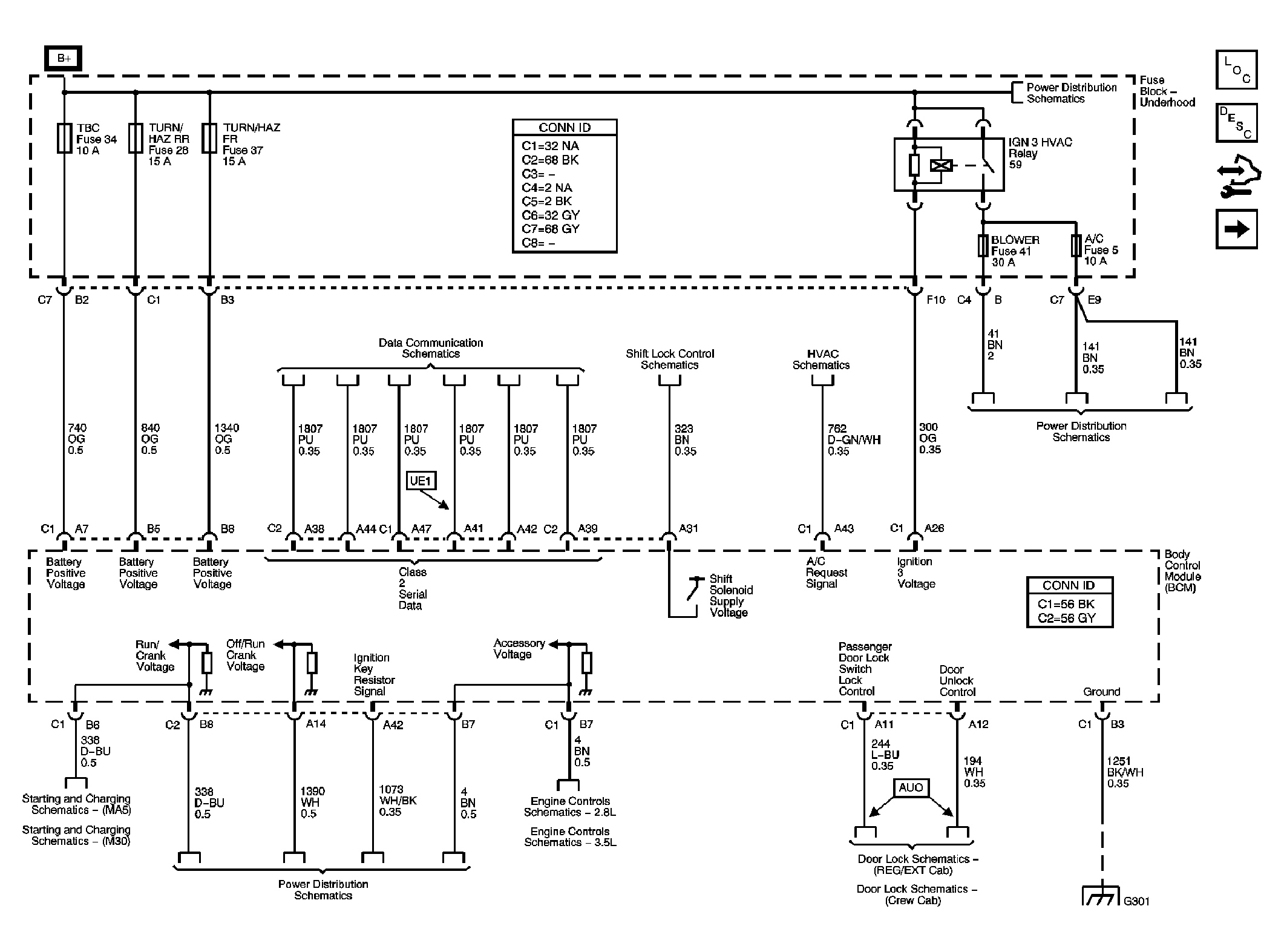

Fig 1: Power, Ground, Serial Data, and Controlled/Monitored Subsystem References
GM1775319Courtesy of GENERAL MOTORS CORP.

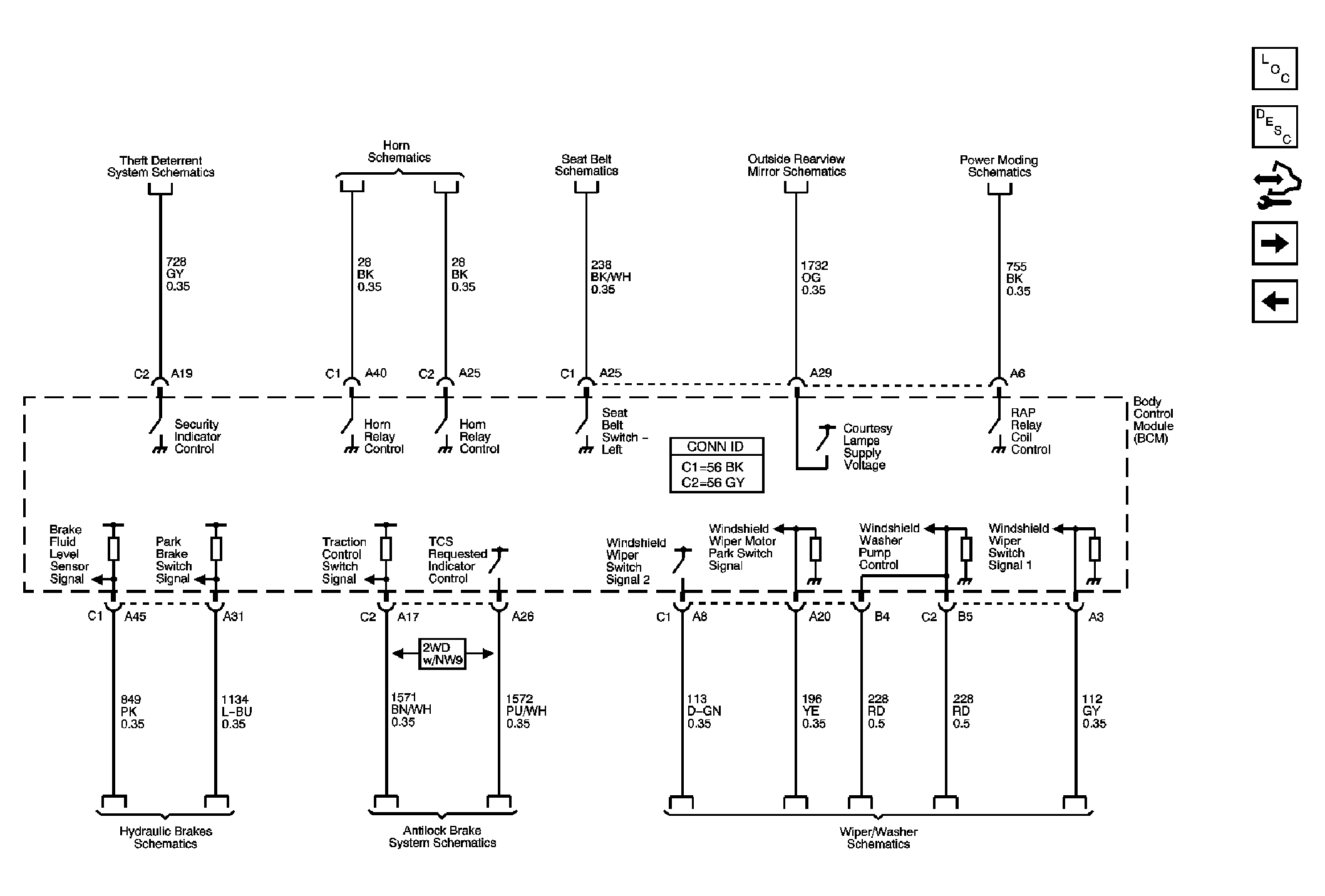

Fig 2: Subsystem References to Theft, Horn, Seat Belt, Outside Mirror, RAP, Brake Warning, ABS, and Wiper/Washer Systems
GM1775332Courtesy of GENERAL MOTORS CORP.

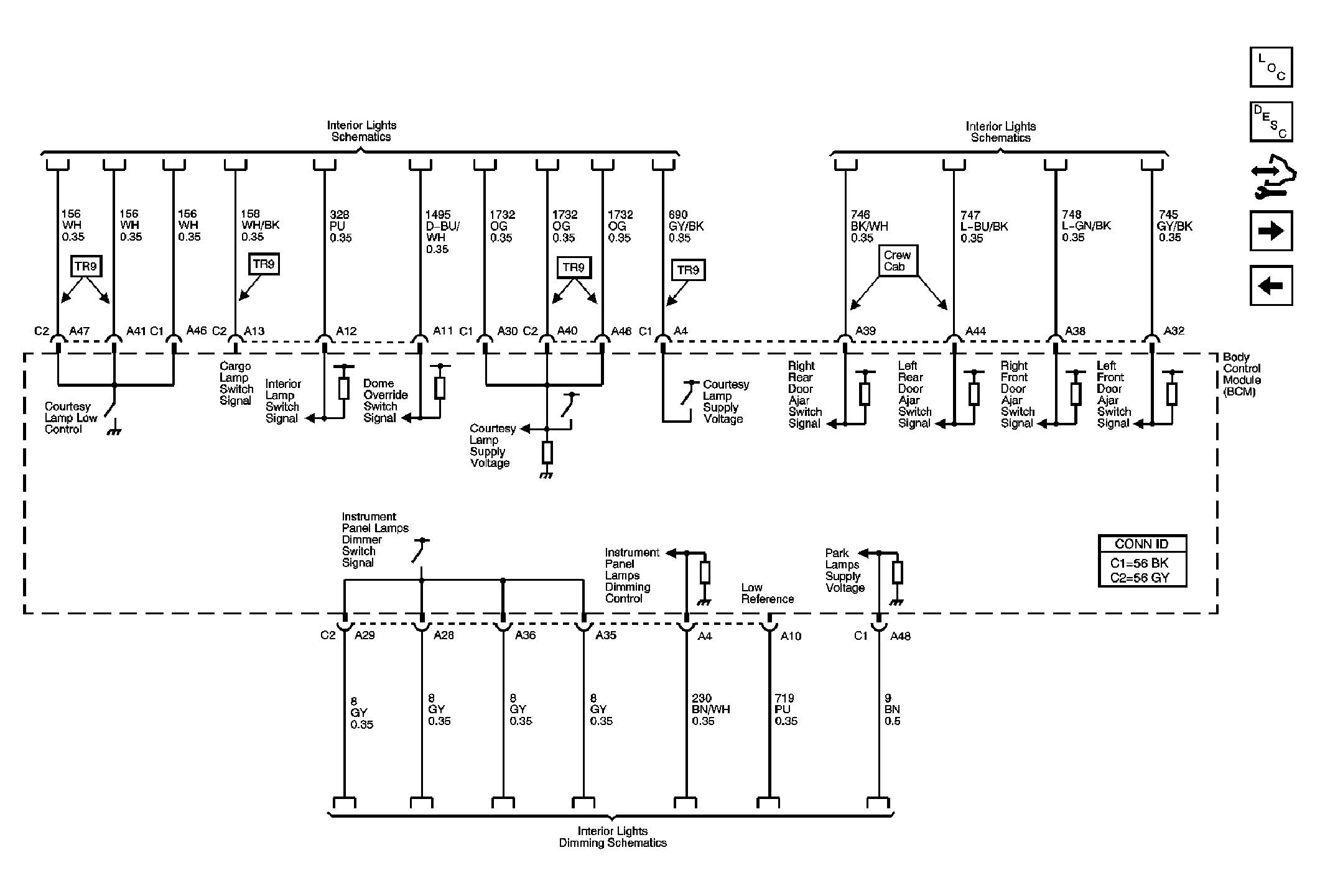

Fig 3: Subsystem References to Interior Light and Interior Lights Dimming Systems
GM1775464Courtesy of GENERAL MOTORS CORP.

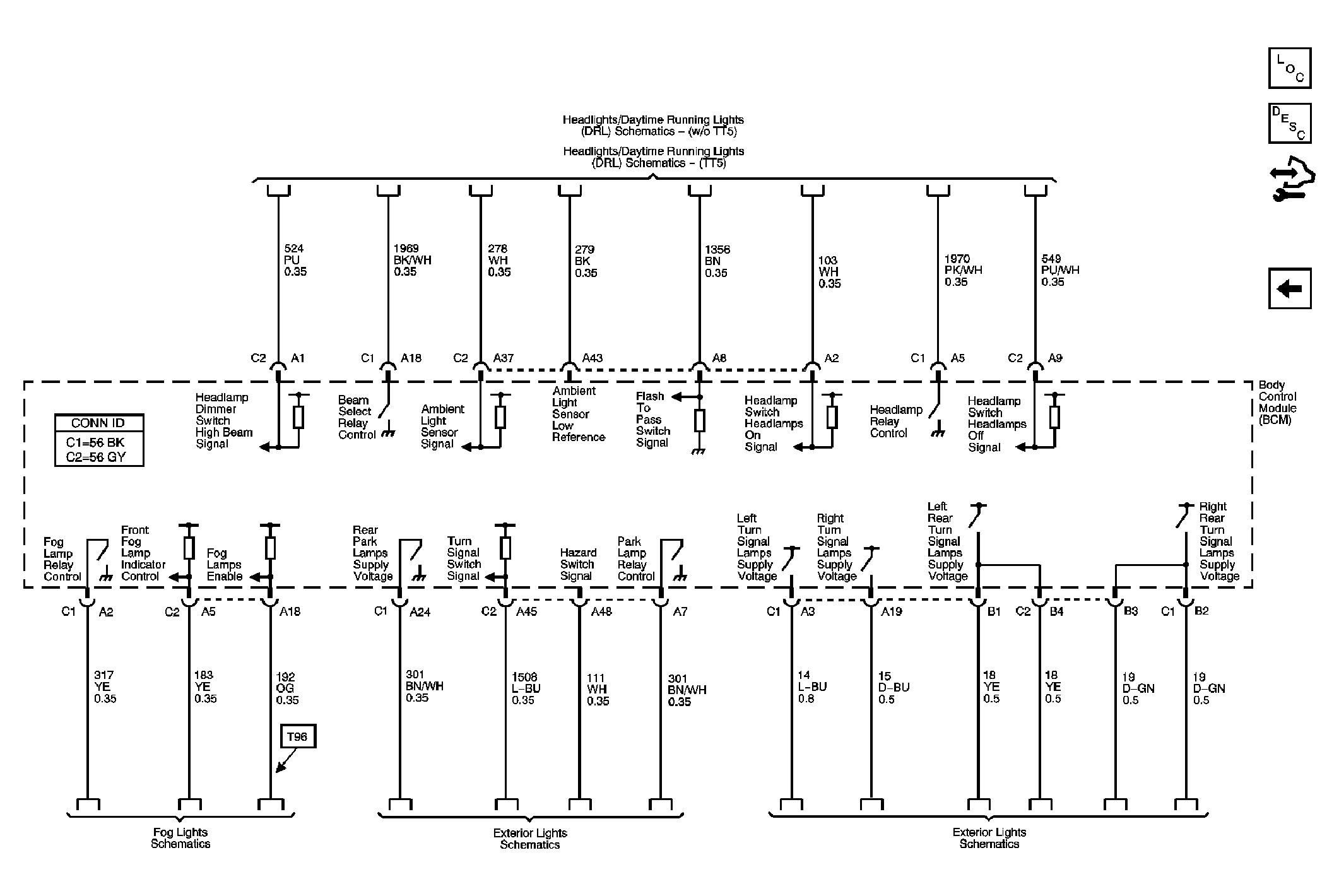

Fig 4: Lighting System Reference
GM1775483Courtesy of GENERAL MOTORS CORP.
