Installation Procedure

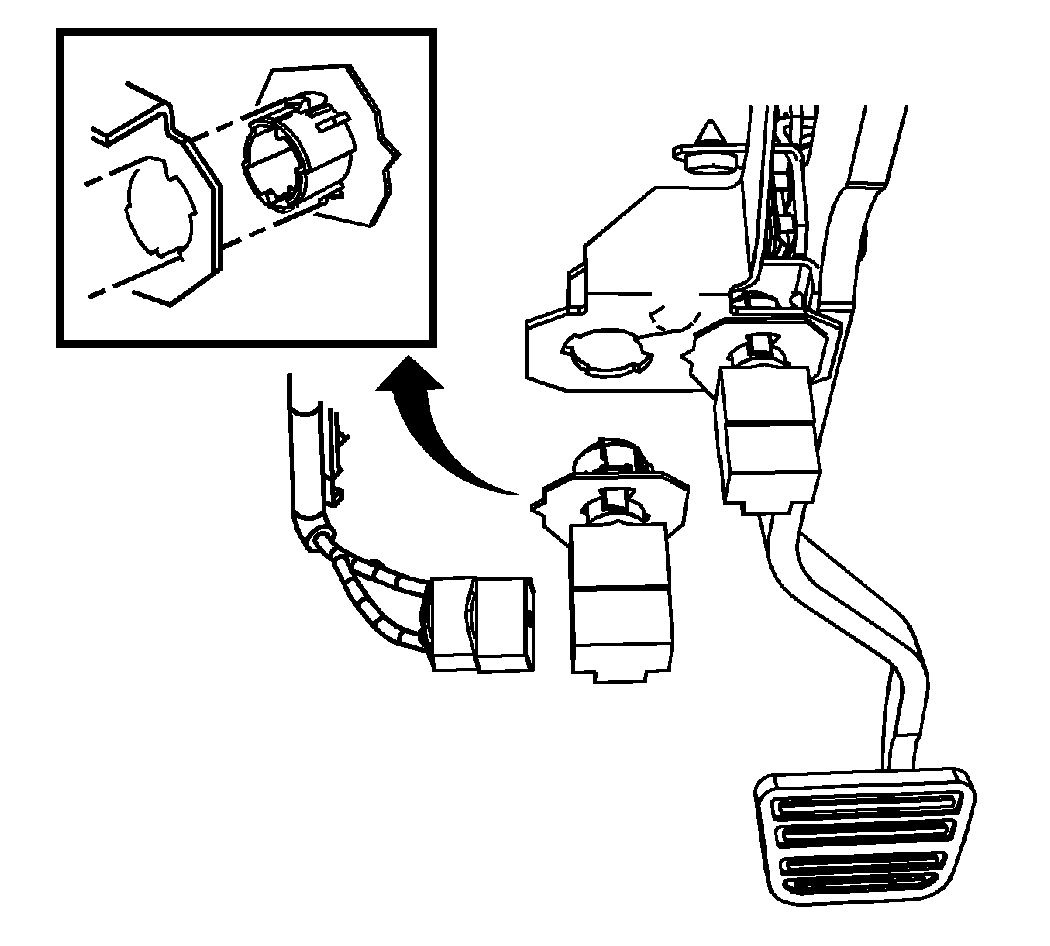

    Fig 1: View Of Cruise Release Switch
    GM1302096Courtesy of GENERAL MOTORS CORP.
  1. Slide only the torque converter clutch/cruise control release switch retainer into the brake pedal bracket, until the locking tabs are fully engaged.
  2. Connect the electrical connector to the torque converter clutch/cruise control release switch.
  3. Adjust the torque converter clutch/cruise control release switch. Refer to Torque Converter Clutch/Cruise Control Release Switch Adjustment .
