Z Height Adjustment

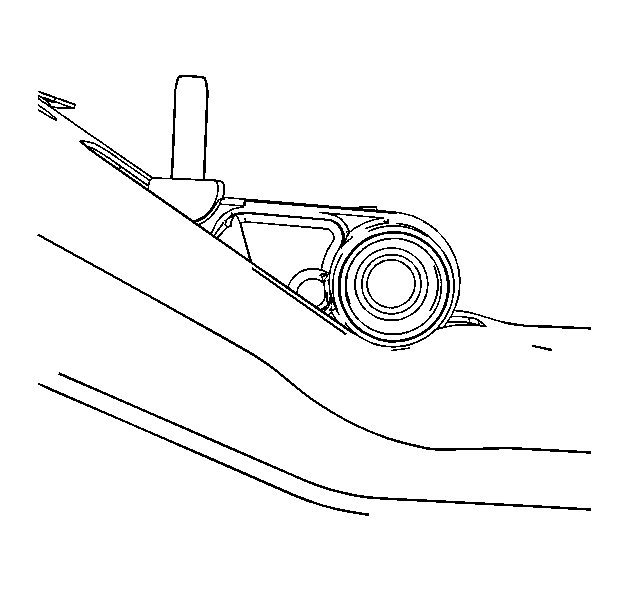

    Fig 1: Adjusting Z Height
    GM1379470Courtesy of GENERAL MOTORS CORP.
  1. For vehicles equipped with a torsion bar suspension turn the bolt that passes through the torsion bar adjuster clockwise to raise the and counterclockwise to lower the height adjustment.
  2. For vehicles without torsion bars, replace damaged or worn components as necessary.
