Installation Procedure

WARNING: This page is about a different variant/trim than selected.

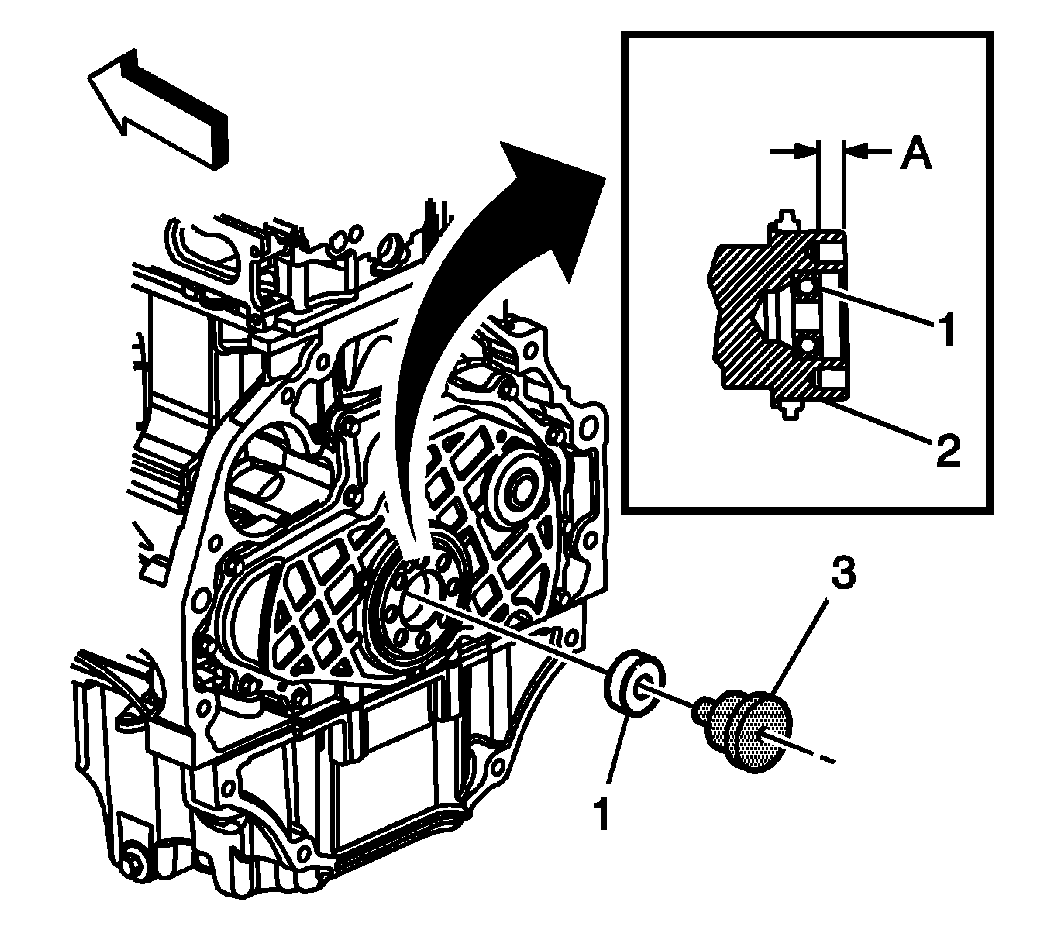

    Fig 1: Installing Clutch Pilot Bearing
    GM1302138Courtesy of GENERAL MOTORS CORP.
  1. Install the J 45949  (3) into the clutch pilot bearing (1).
  2. Install the clutch pilot bearing (1) into the crankshaft (2).

    The J 45949  (3) will install the pilot bearing (1) to the proper depth of 11.6 mm (0.457 in)(a).

  3. Remove the J 45949  (3).
  4. Install the Flywheel. Refer to Engine Flywheel Replacement (RPO M30) or Engine Flywheel Replacement (RPO MA5) for the 2.8L engine or Engine Flywheel Replacement (RPO M30) or Engine Flywheel Replacement (RPO MA5) for the 3.5L engine.
