Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Clutch Release Switch Electrical Connector
    GM1302119Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the electrical connectors (2, 4) from the following components:
    • The clutch pedal position switch (1)
    • The cruise control release switch (3)
    2. Fig 2: View Of Clutch Pedal & Clutch Master Cylinder Push Rod
    GM1302125Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: A new retainer (3) is required after removal.
  2. Complete the following in order to disengage the retainer (3) from the clutch pedal pin.
    1. Insert a flat-bladed tool (4) between the clutch master cylinder push rod (1) and the clutch pedal (2).
    2. Pry the clutch master cylinder push rod (1) away from the clutch pedal assembly (2).

      Discard the retainer (3).

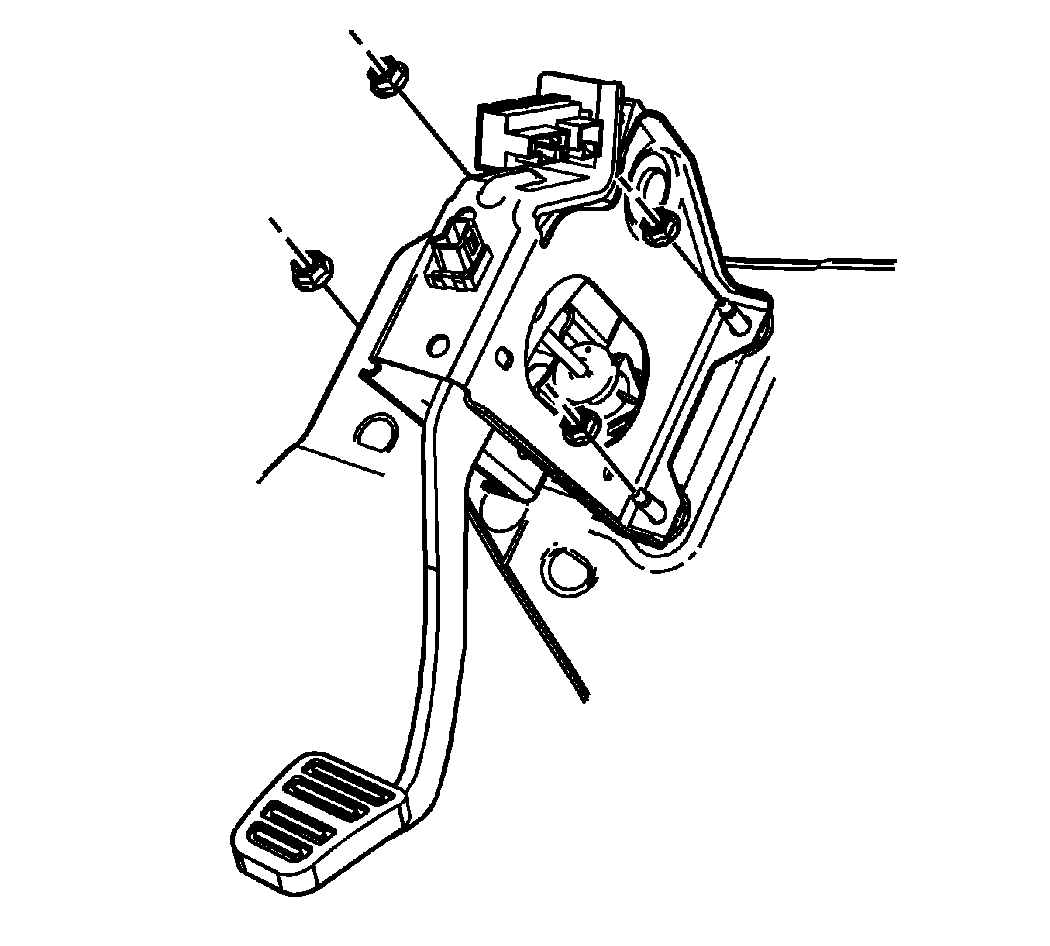

    3. Fig 3: View Of Clutch Pedal Assembly
    GM1302122Courtesy of GENERAL MOTORS CORP.
  3. Remove the 4 nuts securing the clutch pedal assembly to the cowl.
  4. Remove the clutch pedal assembly from the vehicle.
