Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission. Refer to Transmission Replacement (4WD) or Transmission Replacement (RWD) .

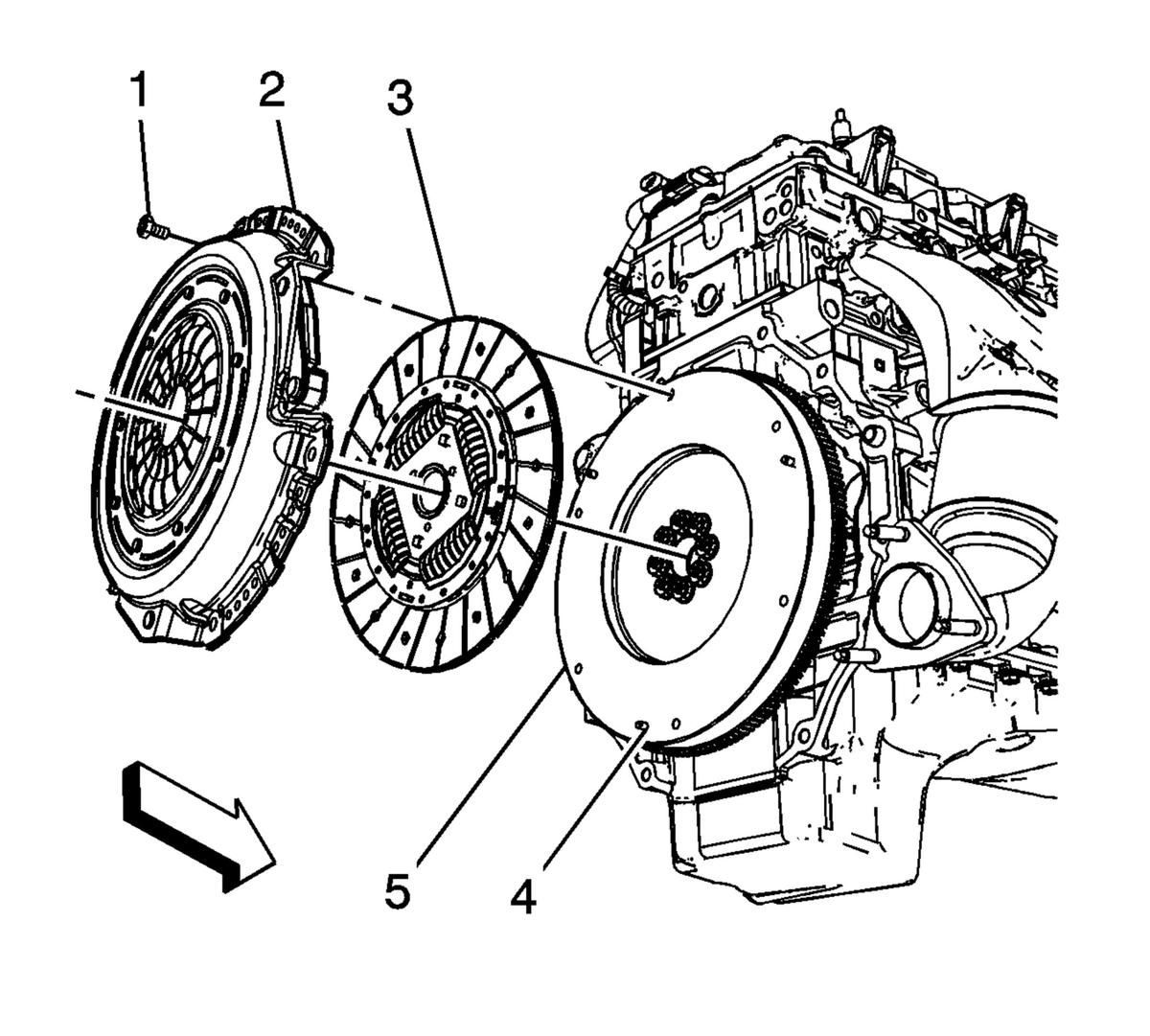

    2. Fig 1: Exploded View Of Clutch Assembly
    GM1302140Courtesy of GENERAL MOTORS CORP.
  2. Remove the clutch pressure plate bolts (1).

    Discard the bolts.

  3. Remove the clutch pressure plate (2) and driven disc (3) from the dowel pins (4) on the flywheel (5).
