Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission. Refer to Transmission Replacement (4WD) or Transmission Replacement (RWD) .

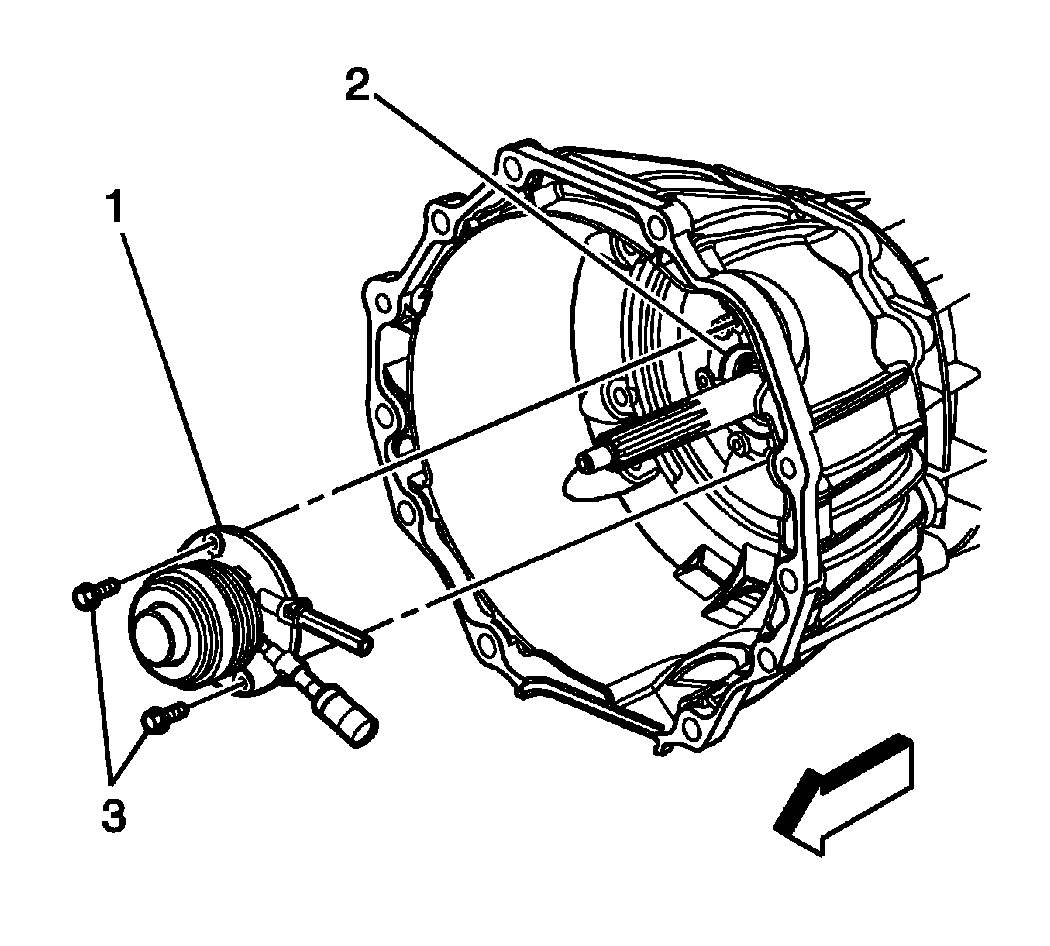

    2. Fig 1: View Of Clutch Actuator Cylinder
    GM1302141Courtesy of GENERAL MOTORS CORP.
  2. Remove the 2 clutch actuator cylinder bolts (3).
  3. Remove the clutch actuator cylinder (1) from the input shaft bearing retainer (2).
