Installation Procedure

WARNING: This page is about a different variant/trim than selected.

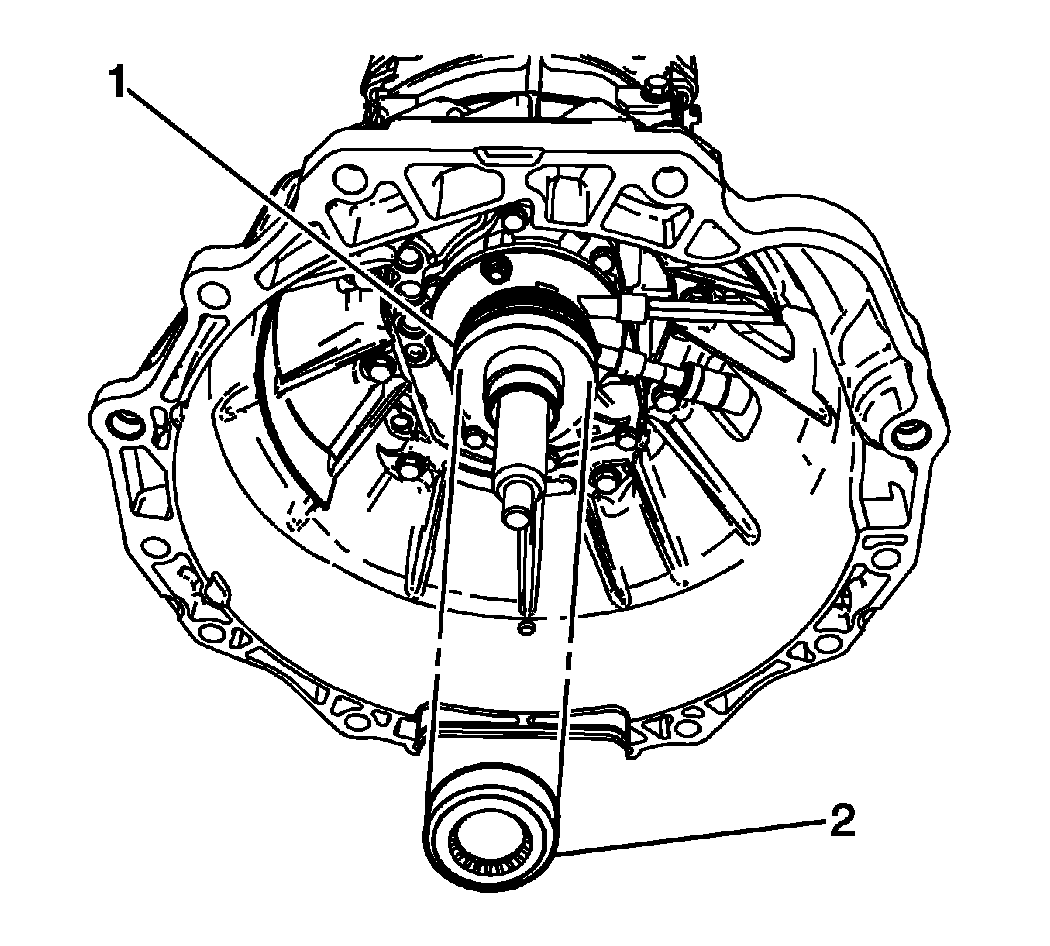

    Fig 1: View Of Clutch Actuator Cylinder Dust Cover & Clutch Actuator Cylinder Release Bearing
    GM1392384Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not allow the release bearing to become damaged, replace if dropped or damaged.
  1. Install the clutch actuator cylinder release bearing (2) over the clutch actuator cylinder dust cover (1).
  2. Install the transmission. Refer to Transmission Replacement (4WD) or Transmission Replacement (RWD) .
