Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Vehicle Speed Sensor (VSS) With O-Ring Seal - RWD
    GM880951Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Component Fastener Tightening Notice .
  1. Install the VSS with O-ring seal.

    Tighten:  Tighten the vehicle speed sensor (VSS) to 17 N.m (13 lb ft).

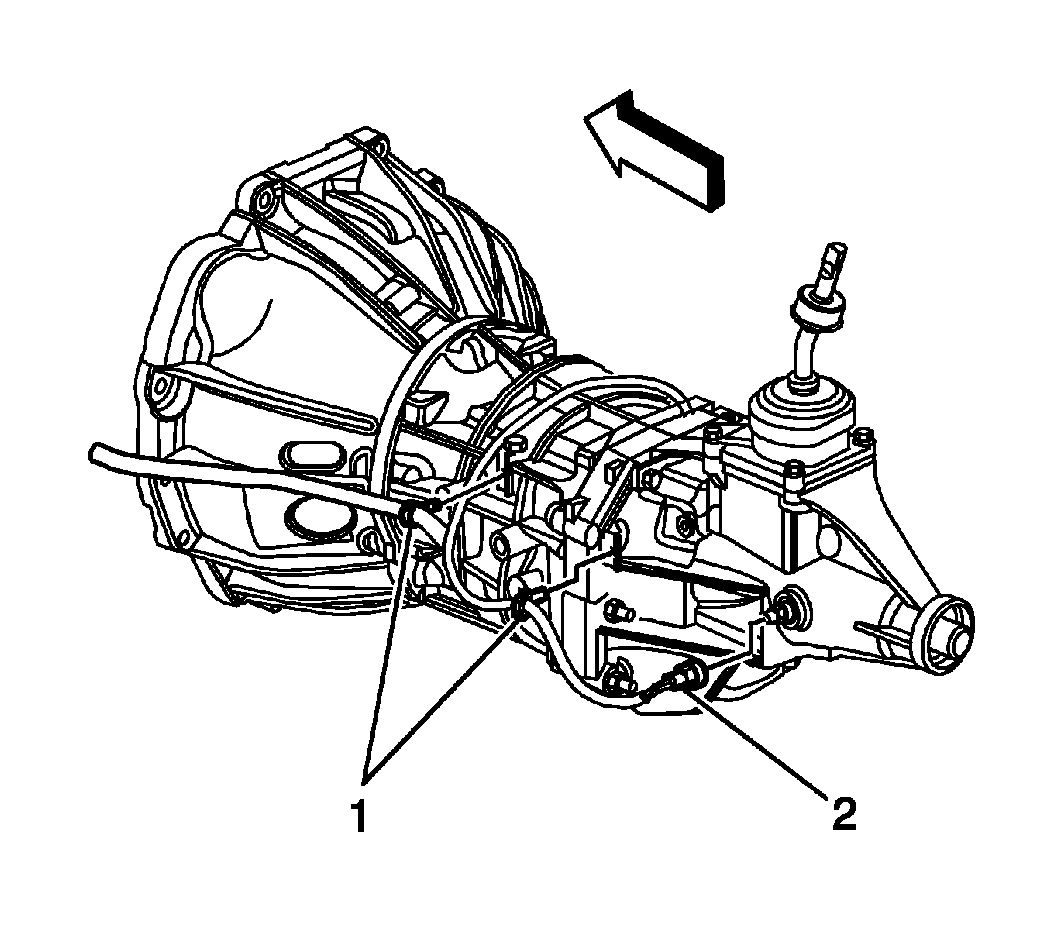

    2. Fig 2: View Of VSS Electrical Connector
    GM1302108Courtesy of GENERAL MOTORS CORP.
  2. Connect the VSS electrical connector (2).
  3. Lower the vehicle.
