Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the control lever and boot. Refer to Control Lever and/or Boot Replacement .
  2. Drain the transmission fluid if necessary. Refer to Transmission Fluid Replacement .
  3. Remove the rear propeller shaft. Refer to Propeller Shaft Replacement - One Piece or Propeller Shaft Replacement - Two Piece .

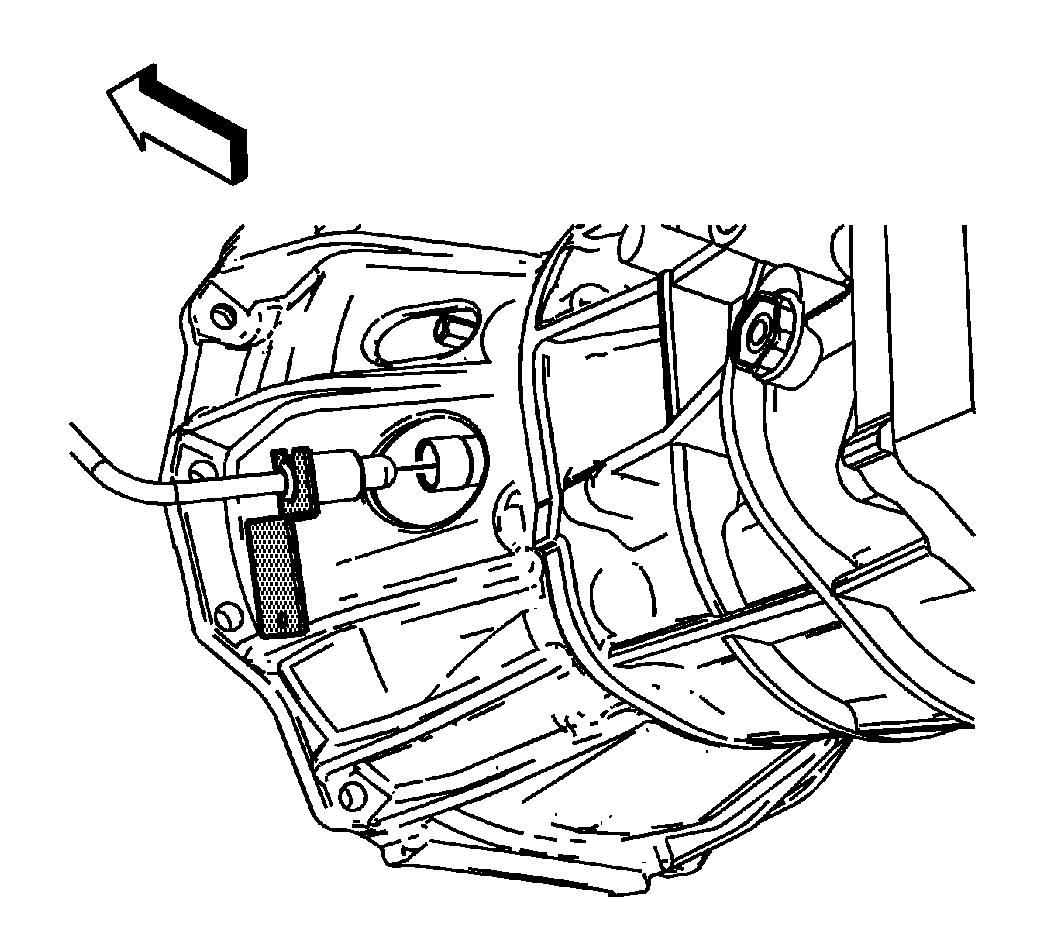

  4. Fig 1: Using J 42371 To Separate The Hydraulic Clutch Line From The Clutch Actuator Quick Connect
    GM1302107Courtesy of GENERAL MOTORS CORP.
  5. Using the J 42371  , push back on the white plastic sleeve on the quick connect in order to separate the hydraulic clutch line from the clutch actuator quick connect.

    It is not necessary to plug the lower hose end or slave cylinder fitting as they are equipped with check valves, only minimal fluid loss may be experienced.

  6. Fig 2: View Of Backup Lamp Switch Electrical Connector & Oxygen Sensor
    GM1302110Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the following engine wiring harness electrical connectors:
    • Backup lamp switch (1)
    • Oxygen sensor (2)
  8. Disconnect the engine wiring harness clip (3) from the clip bracket, and position the harness over the transmission.
  9. Fig 3: View Of VSS Electrical Connector
    GM1302108Courtesy of GENERAL MOTORS CORP.
  10. Disconnect the vehicle speed sensor (VSS) electrical connector (2)
  11. Disconnect the engine wiring harness clips (1) from the clip brackets, and position the harness aside.
  12. Fig 4: View Of Fuel Hose/Pipe Bracket & Nuts (MA5)
    GM1302111Courtesy of GENERAL MOTORS CORP.
  13. Remove the nuts securing the fuel hose/pipe brackets to the transmission, and position aside.
  14. Fig 5: View Of Transmission Jack
    GM1302112Courtesy of GENERAL MOTORS CORP.
  15. Support and secure the transmission using a suitable transmission jack.
  16. Remove the transmission crossmember. Refer to Crossmember Replacement - Transmission (2WD) .
  17. Fig 6: View Of Service Slot Plug
    GM1302113Courtesy of GENERAL MOTORS CORP.
  18. Remove the service slot plug.
  19. Fig 7: View Of Transmission Mounting Bolts
    GM1302117Courtesy of GENERAL MOTORS CORP.
  20. Remove the 9 transmission mounting bolts.
  21. Fig 8: View Of Transmission Mounting Bolts & Engine Dowels
    GM1302115Courtesy of GENERAL MOTORS CORP.
  22. Remove the remaining transmission mounting bolts (2).
  23. IMPORTANT: Do not allow the transmission to hang from the clutch assembly.
  24. Pull the transmission straight back off the clutch hub splines.
  25. IMPORTANT: Ensure clearance is maintained between the transmission and the following:
    • The catalytic converter
    • The clutch assembly
    • The engine wiring harness
    • The fuel hose/pipe brackets
    • The heater pipe
  26. Using the transmission jack, carefully lower the transmission from the vehicle.
