Installation Procedure

WARNING: This page is about a different variant/trim than selected.

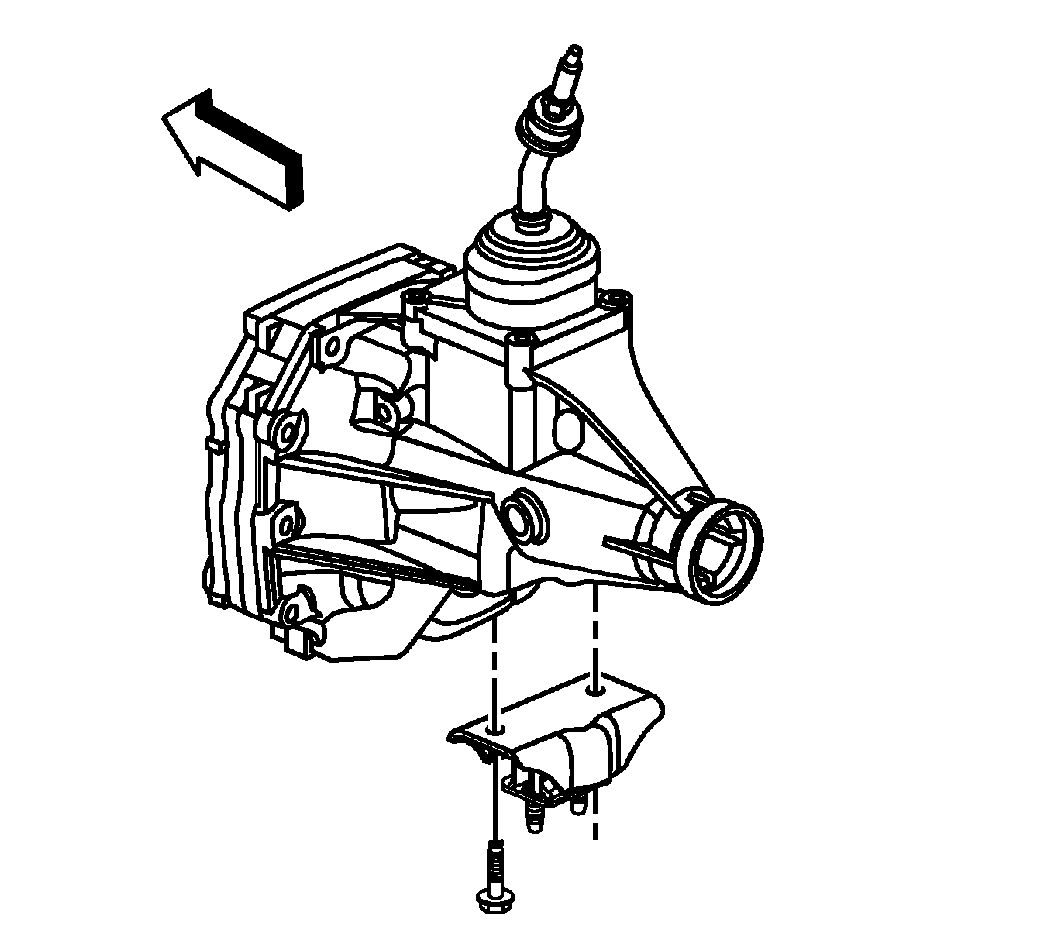

    Fig 1: View Of Transmission Mount (RPO Z85 & ZQ8)
    GM1201370Courtesy of GENERAL MOTORS CORP.
  1. Install the transmission mount to the vehicle.
    2. NOTE: Refer to Fastener Notice .
  2. Install the mount to transmission bolts.

    Tighten:  Tighten the bolts to 60 N.m (44 lb ft).

    3. Fig 2: View Of Transmission Support
    GM1235552Courtesy of GENERAL MOTORS CORP.
  3. Lower the transmission and install the two nuts securing the transmission mount to the transmission support.

    Tighten:  Tighten the nuts to 57 N.m (42 lb ft).

  4. Remove the transmission jack.
  5. Lower the vehicle.
