Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: View Of Transmission Support
    GM1235552Courtesy of GENERAL MOTORS CORP.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Support the transmission with a transmission jack.
  3. Remove the two nuts securing the transmission mount to the transmission support.
  4. Raise the transmission off of the transmission support.

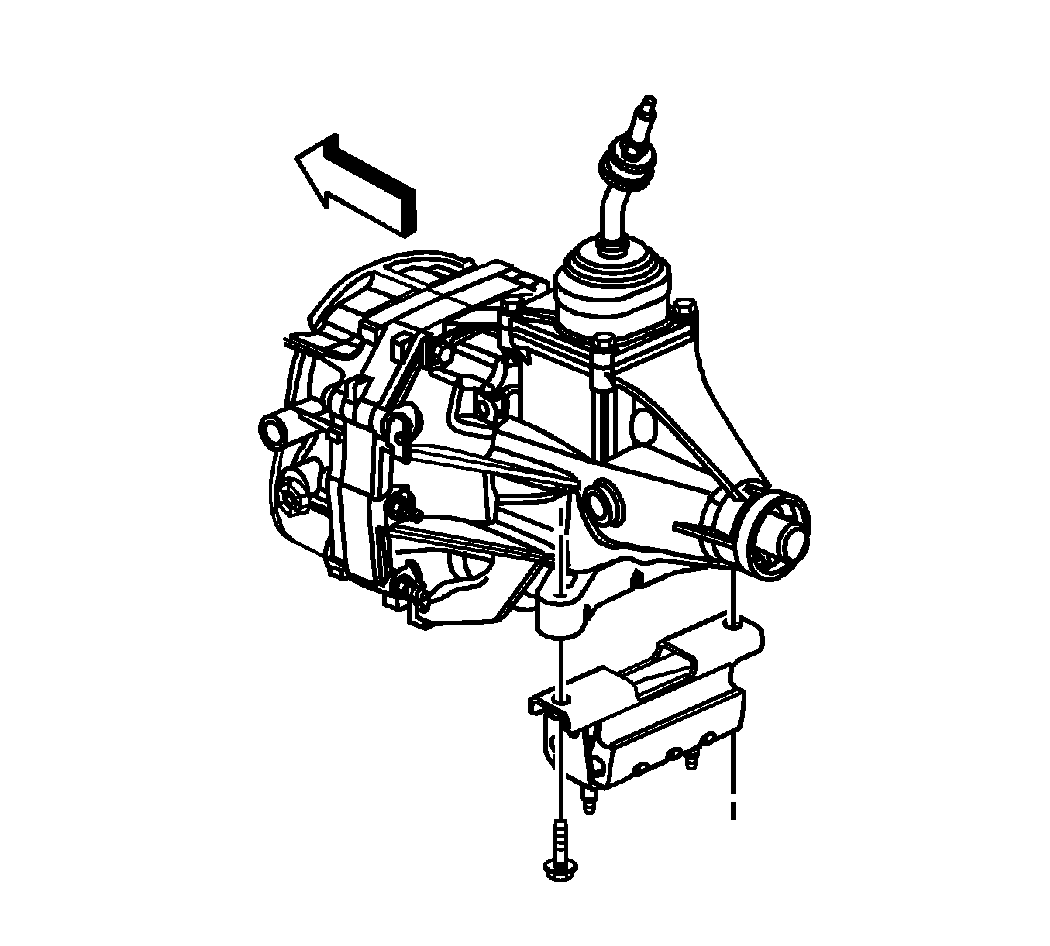

    5. Fig 2: View Of Transmission Mount (RPO Z71)
    GM1201364Courtesy of GENERAL MOTORS CORP.
  5. Remove the mount to transmission bolts.

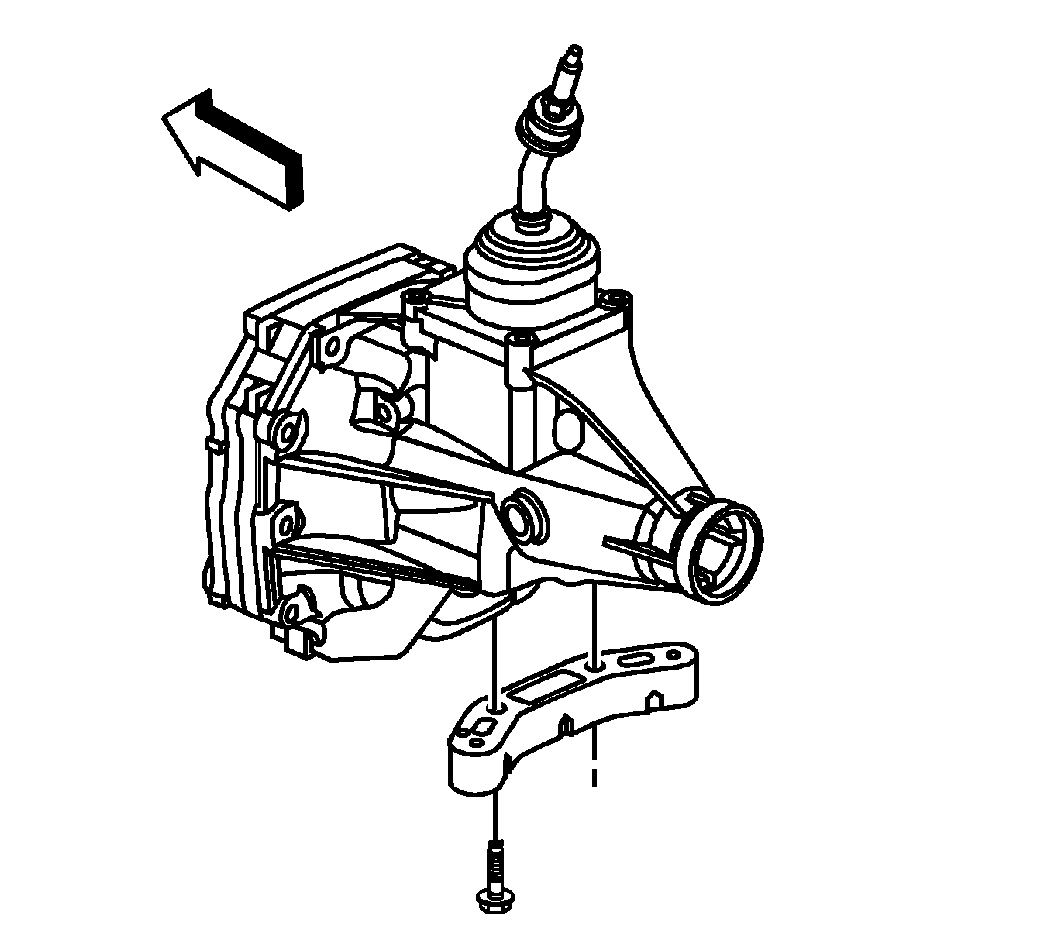

    6. Fig 3: View Of Mount Spacer
    GM1201362Courtesy of GENERAL MOTORS CORP.
  6. Remove the mount spacer.
