Installation Procedure

WARNING: This page is about a different variant/trim than selected.

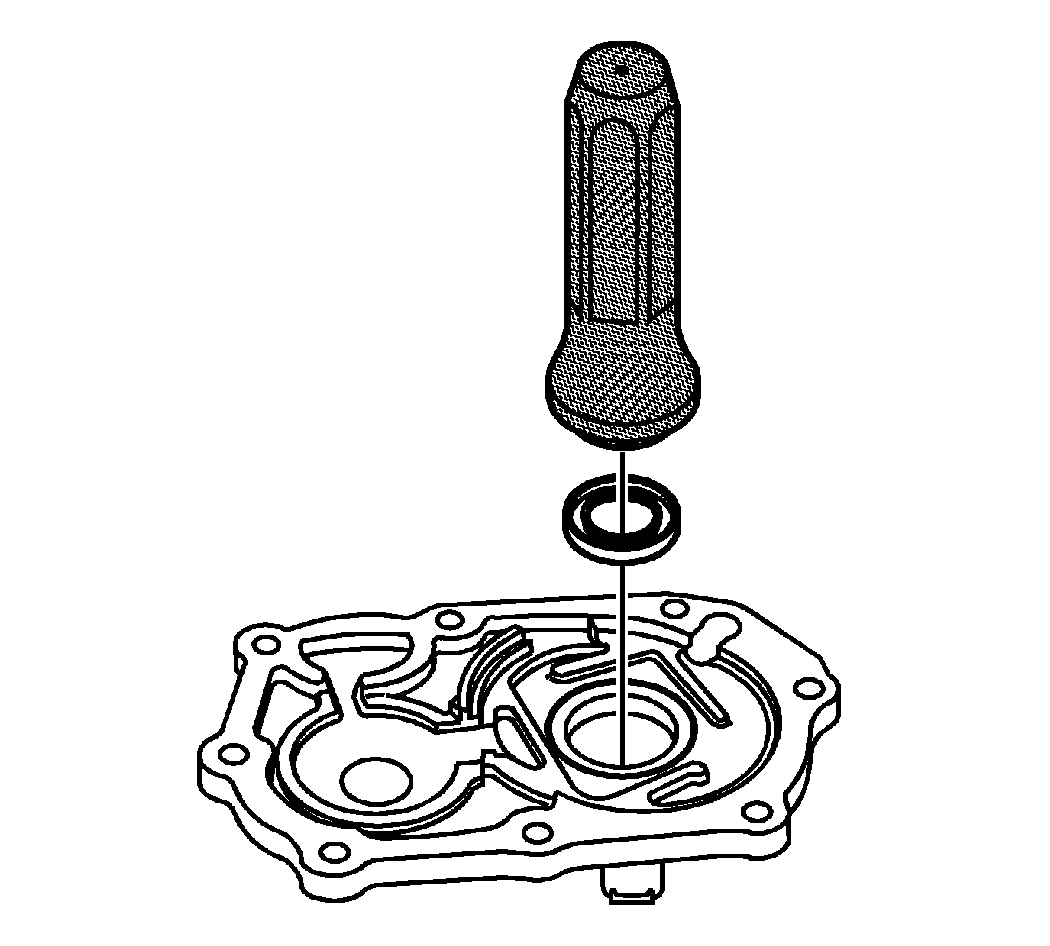

    Fig 1: View Of Input Shaft Seal
    GM881162Courtesy of GENERAL MOTORS CORP.
  1. Using the J 45866  and a hammer, install the input shaft seal into the input shaft bearing retainer. See Special Tools .
    • The spring side of the seal goes toward the tool
    • Ensure the seal is installed square
    • The tool will install the seal to the correct depth
  2. Install the transmission input shaft bearing retainer. Refer to Transmission Input Shaft Bearing Retainer Replacement .
