Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Drain the transmission fluid. Refer to Transmission Fluid Replacement .
  2. Remove the clutch actuator cylinder. Refer to Clutch Actuator Cylinder Replacement .

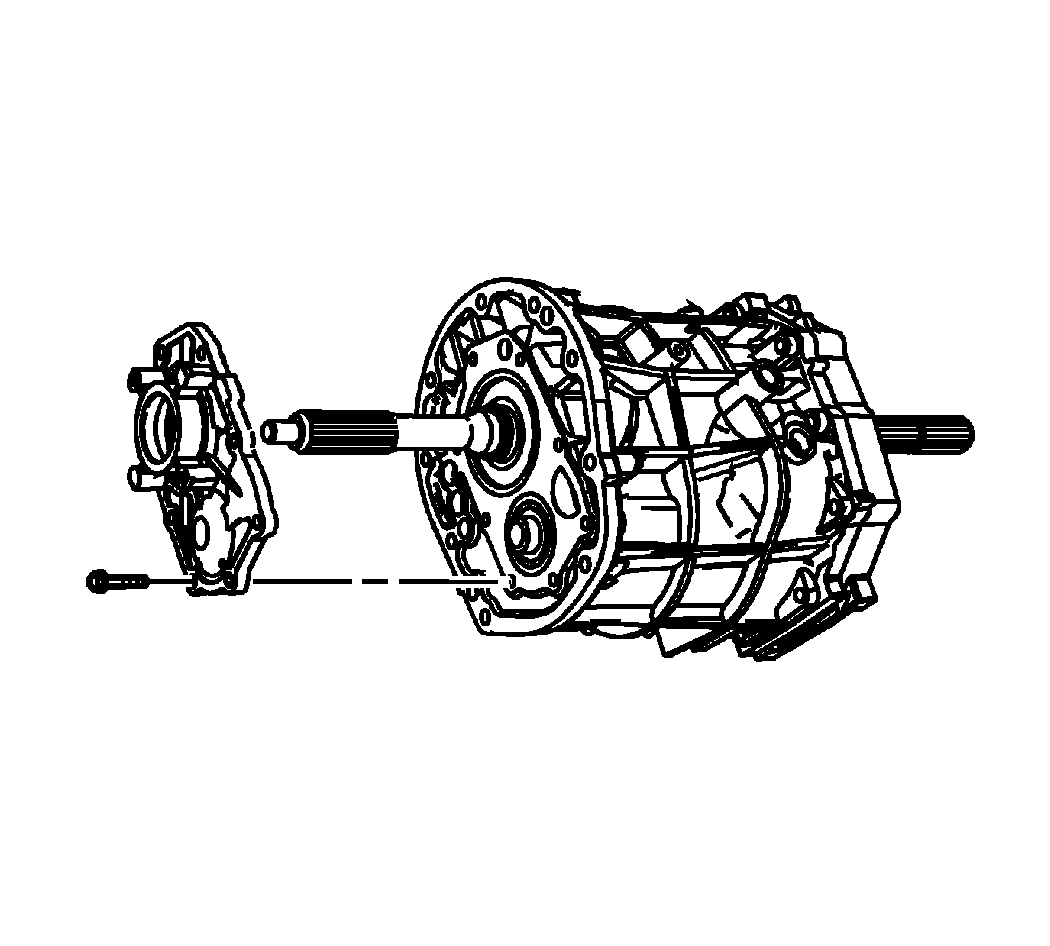

    3. Fig 1: Locating Input Shaft Bearing Retainer Bolts
    GM872978Courtesy of GENERAL MOTORS CORP.
  3. Remove the input shaft bearing retainer bolts.

    Discard the bolts.

  4. Remove the input shaft bearing retainer.
  5. Clean and inspect the input shaft bearing retainer. Refer to Transmission Case Cleaning and Inspection .
