Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transfer case assembly. Refer to Transfer Case Assembly Replacement .

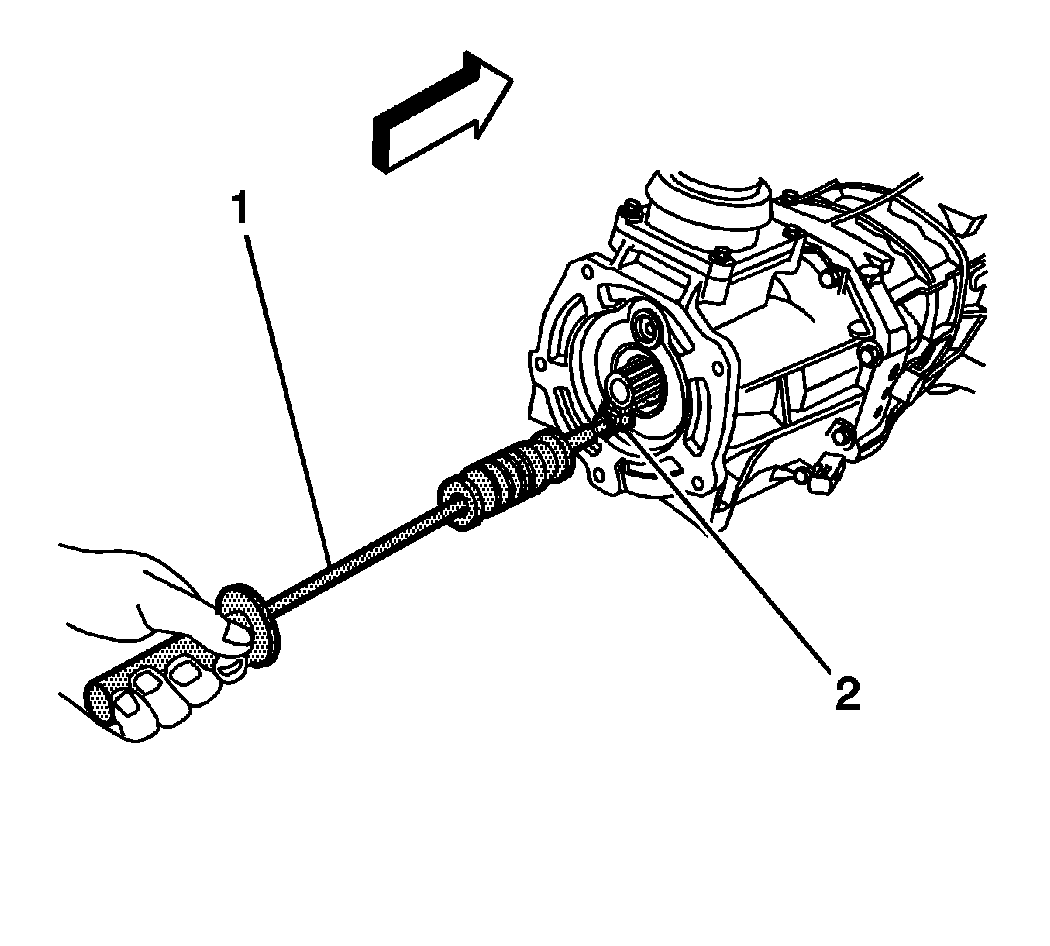

    2. Fig 1: Removing Rear Transmission Housing Oil Seal - 4WD
    GM1302106Courtesy of GENERAL MOTORS CORP.
  2. Using the J 6125-1B  (1) and J 23129  (2) remove the rear transmission housing oil seal from the housing. See Special Tools .
