Filling Procedure

WARNING: This page is about a different variant/trim than selected.

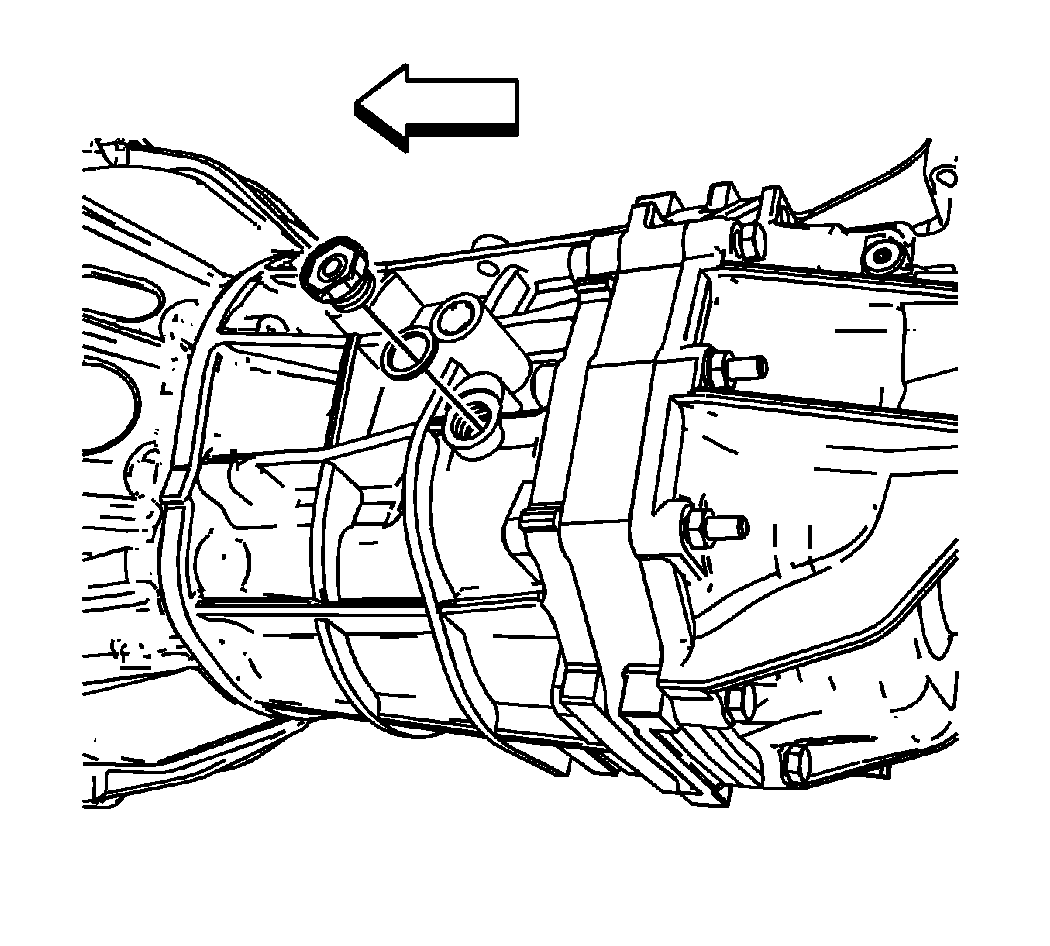

    Fig 1: View Of Transmission Fluid Fill Plug & Washer
    GM1302104Courtesy of GENERAL MOTORS CORP.
  1. Clean away all dirt and debris from the transmission fluid fill plug area.
  2. Remove the transmission fluid fill plug and washer.

    Discard the washer.

    3. Fig 2: Identifying Transmission Fluid Level
    GM1302103Courtesy of GENERAL MOTORS CORP.
  3. Fill the transmission to just below the bottom of the fill plug hole with the recommended fluid. Refer to Lubrication Specifications .
  4. Install the transmission fluid fill plug and NEW washer.

    Tighten:  Tighten the fill plug to 37 N.m (27 lb ft).

  5. Lower the vehicle.
