Transmission Extension Disassemble

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Locating Oil Receiver
    GM880950Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil receiver.
    2. Fig 2: Identifying Oil Trough & Mounting Bolt
    GM880700Courtesy of GENERAL MOTORS CORP.
  2. If RWD, remove the oil trough bolt.
  3. Remove the oil trough.

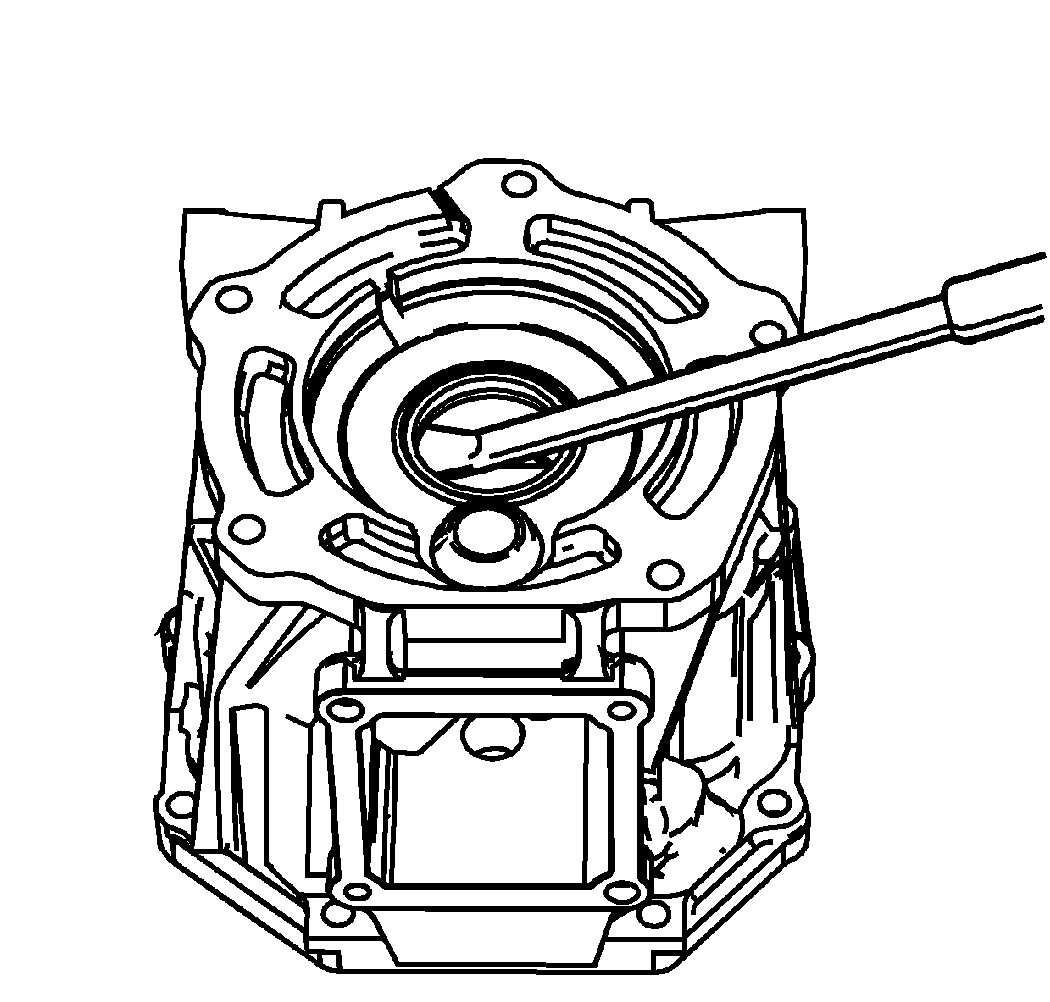

    4. Fig 3: Removing/Installing Output Shaft Seal - 4WD
    GM872992Courtesy of GENERAL MOTORS CORP.
  4. For the 4WD transmission, using a suitable prying tool, remove the output shaft seal from the extension housing.

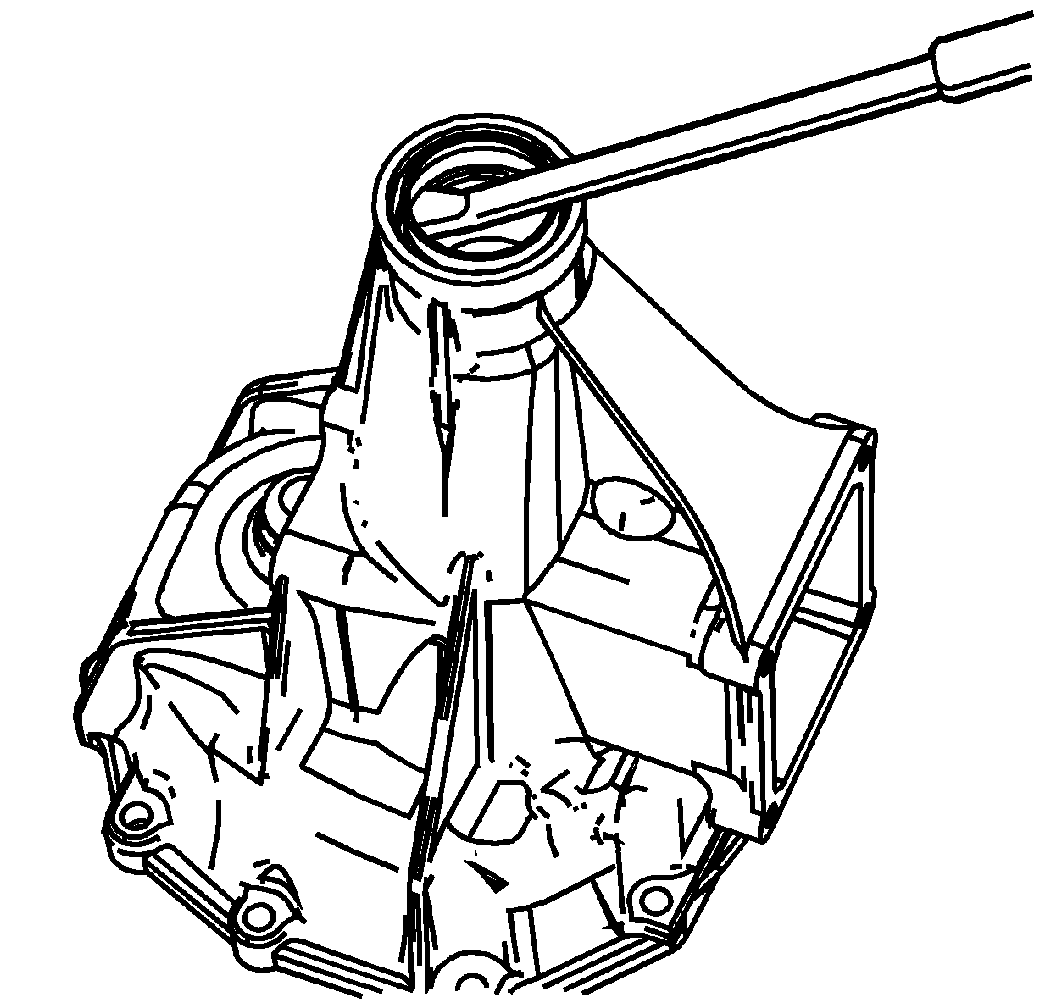

    5. Fig 4: Removing/Installing Output Shaft Seal - RWD
    GM872994Courtesy of GENERAL MOTORS CORP.
  5. For the RWD transmission, using a suitable prying tool, remove the output shaft seal from the extension housing.
    6. Fig 5: View Of Reverse Restrictor Pin Plug
    GM880946Courtesy of GENERAL MOTORS CORP.
  6. Remove the reverse control lever restrictor pin plug. Discard the plug. A new plug is required for assembly.
    7. Fig 6: Installing/Removing Reverse Control Lever Restrictor Roll Pin
    GM880948Courtesy of GENERAL MOTORS CORP.
  7. Remove the roll pin for the reverse control lever restrictor.
    8. Fig 7: Locating Reverse Control Lever Restrictor
    GM880949Courtesy of GENERAL MOTORS CORP.
  8. Remove the reverse control lever restrictor.
    9. Fig 8: View Of Shift Control Shaft Plug
    GM872996Courtesy of GENERAL MOTORS CORP.
  9. For the 4WD transmission, remove the shift control shaft plug. Only remove the plug if it is leaking.
