Transmission Extension Assemble

WARNING: This page is about a different variant/trim than selected.

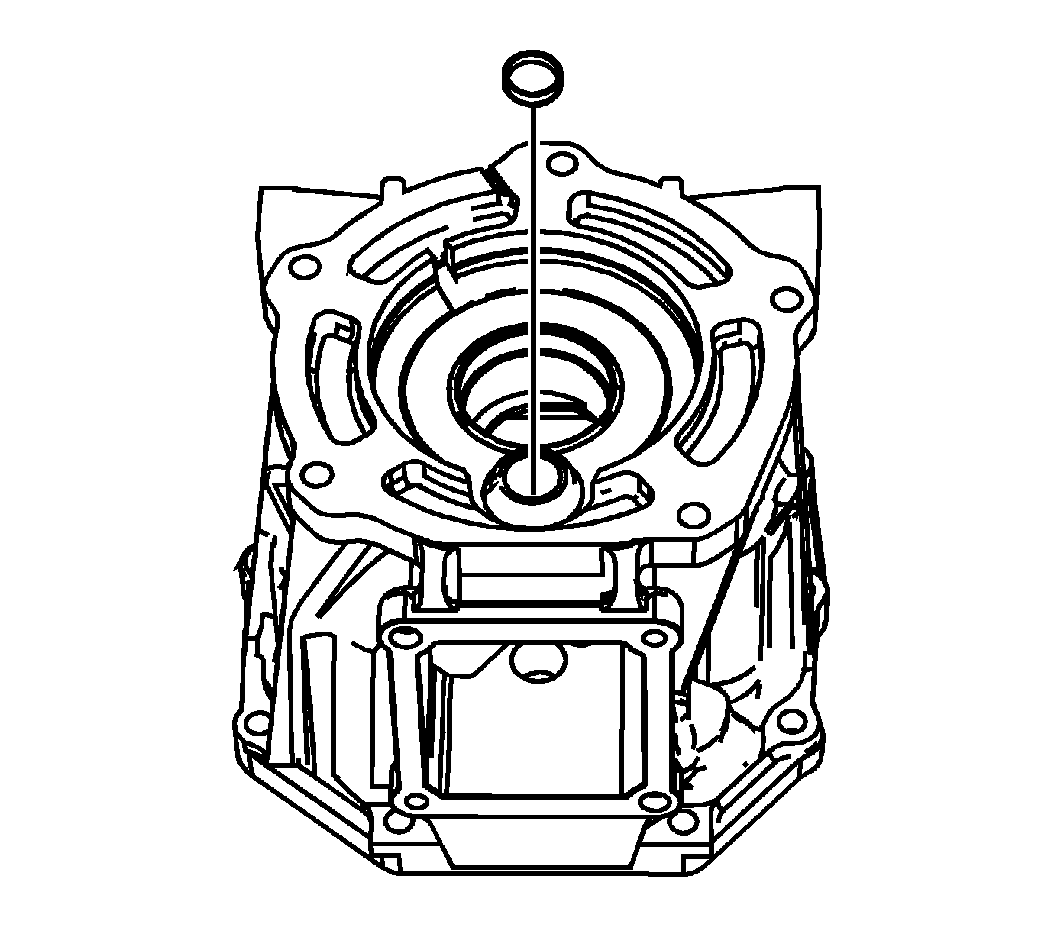

    Fig 1: View Of Shift Control Shaft Plug
    GM872996Courtesy of GENERAL MOTORS CORP.
  1. For the 4WD transmission, install the shift control shaft plug.

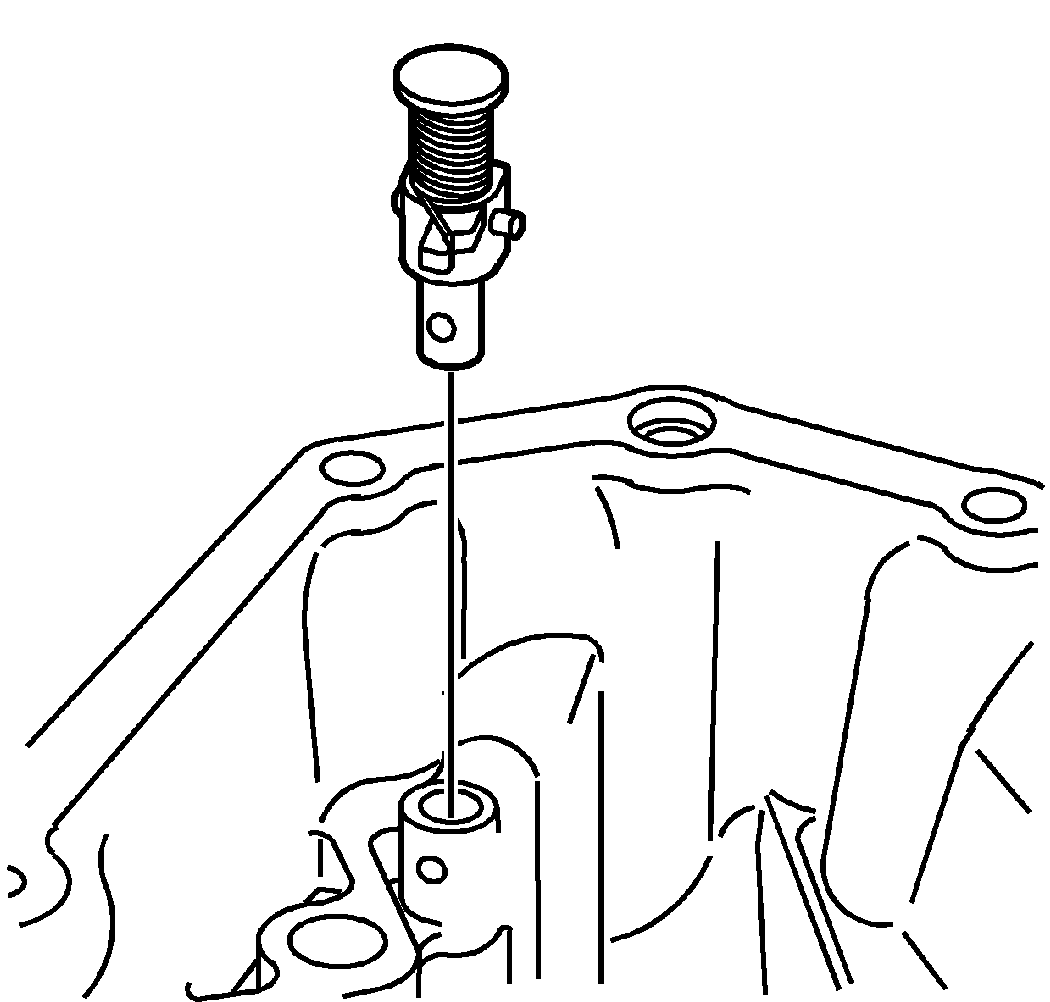

    2. Fig 2: Locating Reverse Control Lever Restrictor
    GM880949Courtesy of GENERAL MOTORS CORP.
  2. If removed, install the reverse control lever restrictor.

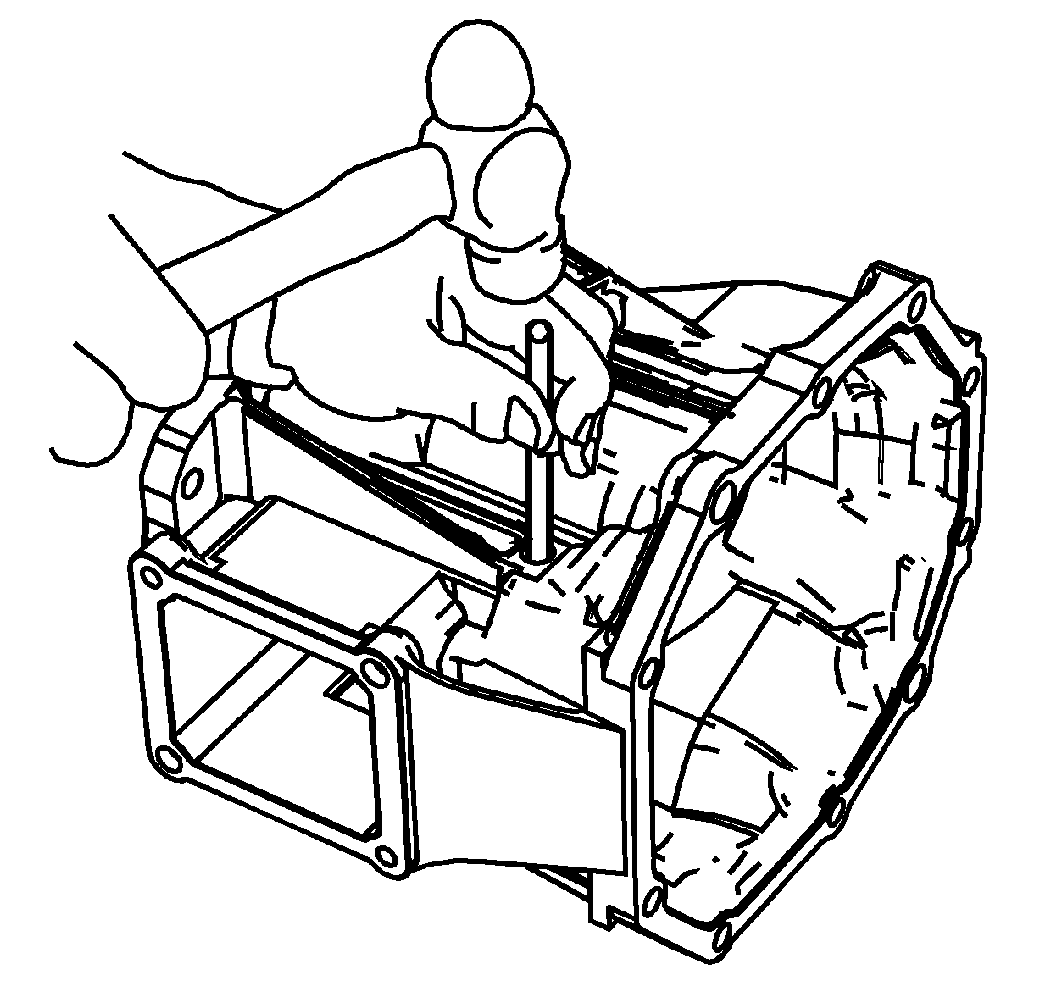

    3. Fig 3: Installing/Removing Reverse Control Lever Restrictor Roll Pin
    GM880948Courtesy of GENERAL MOTORS CORP.
  3. Install a new reverse control lever restrictor roll pin.

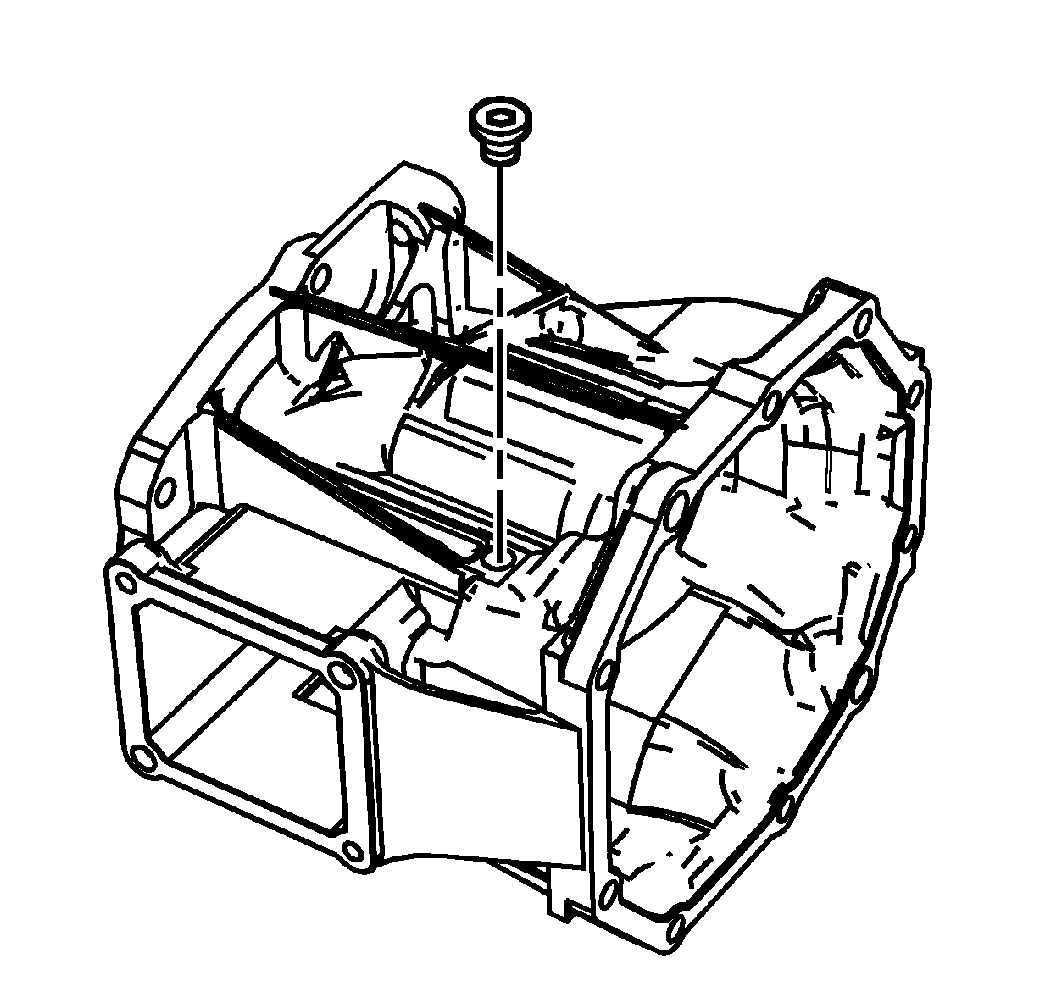

    4. Fig 4: View Of Reverse Restrictor Pin Plug
    GM880946Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice .
  4. Install a new reverse restrictor pin plug.

    Tighten:  Tighten the reverse restrictor pin plug to 19 N.m (14 lb ft).

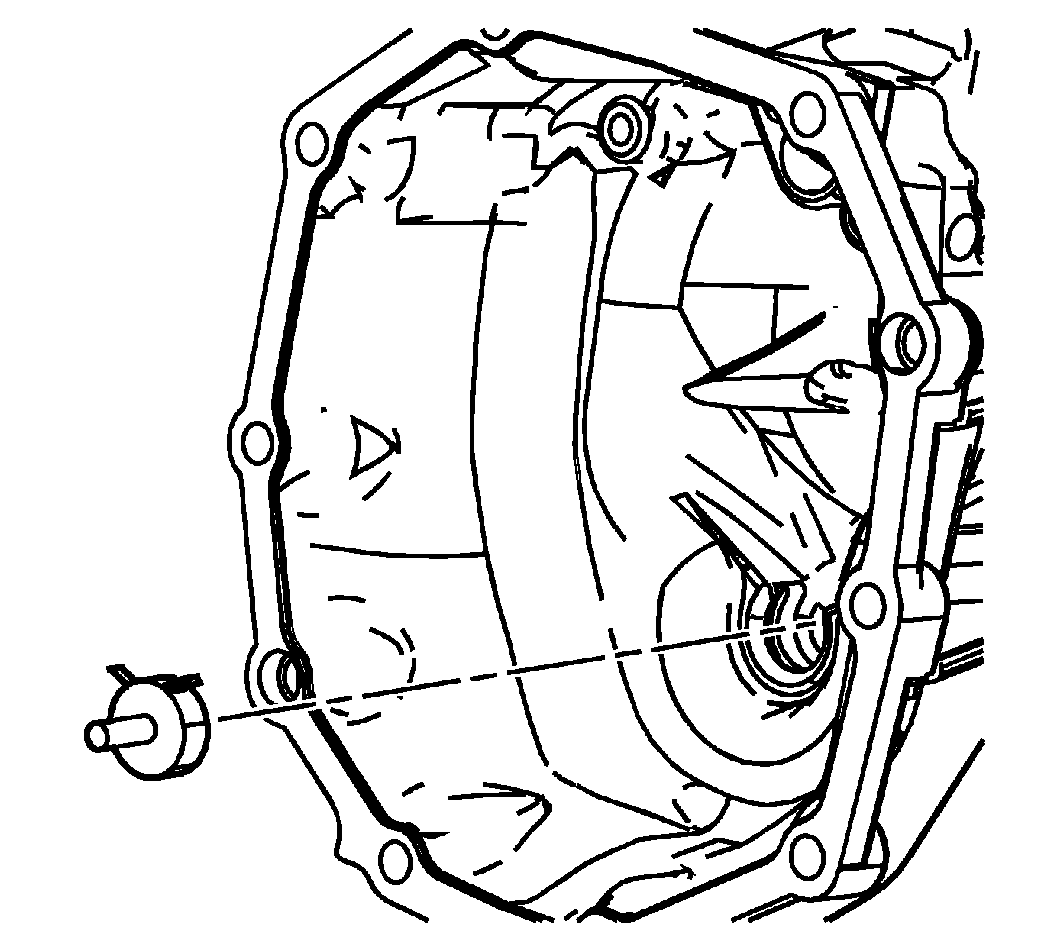

    5. Fig 5: Locating Oil Receiver
    GM880950Courtesy of GENERAL MOTORS CORP.
  5. Install the oil receiver.
    6. Fig 6: Identifying Oil Trough & Mounting Bolt
    GM880700Courtesy of GENERAL MOTORS CORP.
  6. If RWD, install the oil trough.
  7. Install the oil trough bolt.

    Tighten:  Tighten the oil trough bolt to 11 N.m (8 lb ft).
